Manfrotto MIDI CF SYSTEM
by ManfrottoVariable Fluid Drag System on PAN and TILT movements, 4-step counterbalance system, Sliding plate for rapid camera connection and set up, Inbuilt Ø75mm levelling half ball
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1 x 504 fluid video head
- 1 x 535 CF single leg tripod

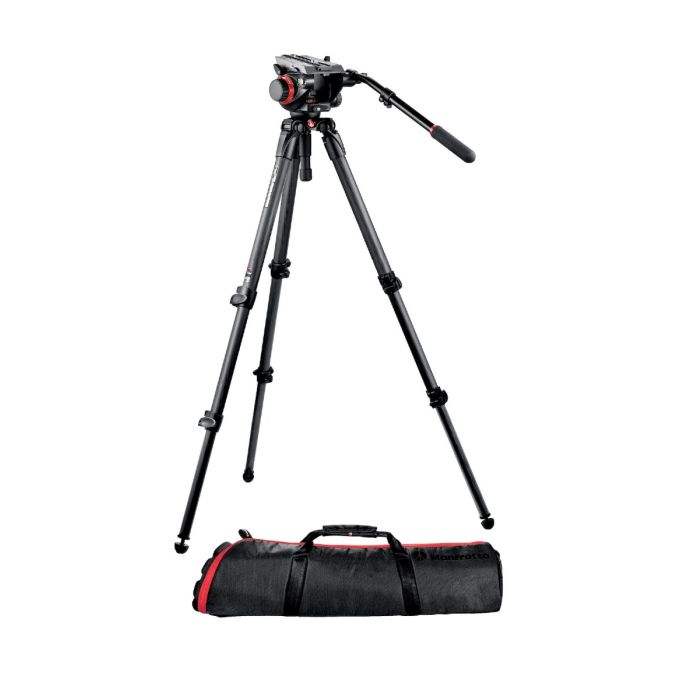

A lightweight, intuitive and versatile video system. It comes with the 504 fluid head with incorporated 75mm half ball, 535 carbon fibre single leg tripod, and the MB MBAG100PN tripod bag, giving you everything you need in one neat package.
The Manfrotto 504 fluid video head features variable fluid drag system in both pan and tilt movement which allows smooth shooting, a 4-step counterbalance systemup to 7,5 Kg and a maximum payload of 12 Kg at 55mm C.O.G.. Easy link 3/8" thread connections allows an external monitor or other accessory equipment to be fitted.
The 535 carbon fibre tripod enables you to select an angle to suit you thanks to the leg angle selector. Together with the head you can move smoothly up and down, from 40,5cms to 184cms.
| Weight | 8200 g |
|---|---|
| Collection/Series | 504 |
| Material | Carbon Fiber, Aluminium |
| Safety Payload Weight | 12 kg |
| Min Height | 40.5 cm |
| Maximum Height | 184 cm |
| Head Type | Video/Fluid Head |
| Leg Sections | 3 |
| Legs Tube Diameter | 24.8, 29.2, 34.2 mm |
| Quick Release | Yes |
| Counterbalanced Weight | 7.5 kg |
| Center of gravity | 55 mm |
| Closed Length | 88 cm |
| Ball Flat | 75 Ball |
| Accessory Compatibility | 502HLV;509HLV;114;127V;127VS |
| Top Attachment | 1/4″ screw, 3/8″ screw |
| Powered by (batteries) | Lithium |
| Bubble Spirit Level (No.) | 1 |
| Carrying Bag Included | MBAG100PN |
| Center Column | no centre column |
| Certifications | WEE;RoHS |
| Colour | Black |
| Easy Link | Yes |
| Front Tilt | -60° / +90° |
| Leg Type | Single |
| Leg Angles | 23°, 50°, 70° |
| Leg Lock Type | Flip Lock |
| Maximum Working Temperature | 60 C |
| Minimum Working Temperature | -20 C |
| Pan Bar Included | Yes |
| Pan Drag | continuously adjustable from 0 to max level |
| Panoramic Rotation | 360 |
| Plate Type | 504PLONG |
| Tilt Drag | continuously adjustable from 0 to max level |
