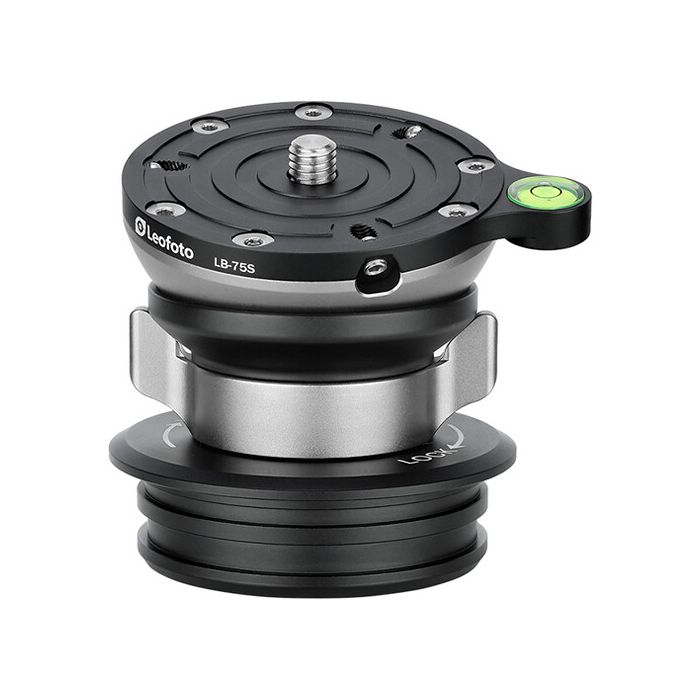

Leofoto LB-75S Leveling Base

by Leofoto
Availability: 14-20 days delivery
  • Load Capacity: 55.1 lb
  • Adjustment Range: +/- 15°
  • Half-Ball Type Leveling Capability
  • 70mm Collar System Base
€114.50 €91.60

Package includes

Leofoto LB-75S Leveling Base with Butterfly Handle with 75mm Plate and 70mm System Base Mount
Allen Wrench

The LB-75S 75mm Leveling Base with Butterfly Handle with 75mm and 70mm System Base Mount from Leofoto acts like a 75mm half ball, providing +/-15° of leveling range capability. It locks easily and securely in position with the twist of the large butterfly handle at the base of the ball. This leveling base installs on any tripod leg set that receives a 70mm tripod plate.

The anti-twist safety screw design uses three set screws on the spider to secure the ball head in place on top of the leveling base.

Leofoto LB-75S Specs
Load Capacity
55.1 lb / 25 kg
Top Plate Diameter 75mm
Level Adjustment +/- 15°
Mounting Stud 3/8"-16
Mounting Hole 3/8"-16
Diameter 3" / 75 mm
Height 3.2" / 81 mm
Weight 11.4 oz / 322 g
Packaging Info
Package Weight 1.03 lb
Box Dimensions (LxWxH) 5.6 x 5.1 x 4.5"
