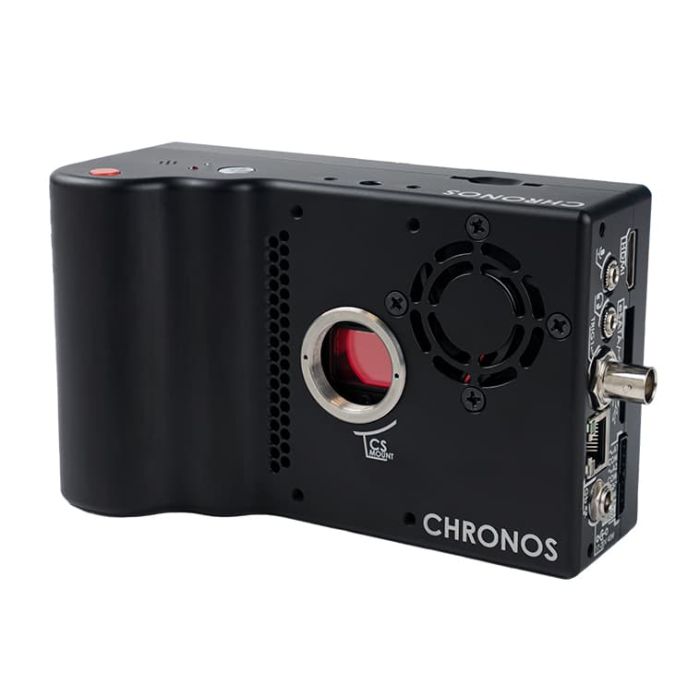

Kron Technologies Chronos 2.1-HD 8GB Monochrome Sensor w/ MFT Mount
by Kron TechnologiesThe Chronos 2.1-HD a budget-friendly high-speed camera that offers an all-in-one, high-definition, high frame-rate solution with 1.000 fps at a 1920 x 1080 resolution.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Chronos 2.1-HD Camera Body
- Mount Plate
- CS-C Adapter Ring
- C Mount Dust Cap
- 32GB SanDisk SD Card
- EN-EL4a Battery
- 19V 40W AC Adapter
- Region-specific AC Power Cord
- 1x Micro Four Thirds (MFT) adapter
- User Manual
Main Features
HD-Resolution: 1920x1080p @ 1,000FPS (max res)
High Frame-Rate: 4/3″ format image sensor captures up to 24,046 Frames Per Second (FPS) at lower resolution.
All-in-One: Completely standalone, untethered operation with a 5″ inch touchscreen display and battery for portability.
Internal Storage: 8GB, 16GB, and 32GB RAM memory options allow for 2.7, 5.5, and 11 second recording times. Store footage via the SD card slot.
Recording Modes: Normal, Segmented, Gated Burst, and Live Slow Motion offer versatile image capture options for dynamic environments.
Lens Mounting: Field-swappable F, EF, MFT, and C mounts available. Preinstalled mount is removable via screws; CS/C supported with included 5 mm spacer.
Color or Monochrome: High sensitivity ISO 500-8,000 (Color) and 1,000-16,000 (Monochrome) allows filming in dynamic lighting conditions.
Trigger Options: I/O ports enable synchronization and remote triggering via cable, sound, and web-triggers.
Focus Peaking: Highlights sharp edges for quick and clear focus with zebra lines help define correct exposure.
API: Open source, REST-based Application Programming Interface (API) is included for integration into custom software or control environments
| CAMERA | |
| Imaging | 1920x1080 @ 1000FPS |
| Memory | 8GB, 16GB, or 32GB |
| Record Time (in seconds) | 2.7 (8GB), 5.5 (16GB), 11 (32GB) at max resolution |
| Lens Mount | CS/C, F, EF and MFT mount (options available) |
| Backfocus | Field adjustable |
| IR Filter | 650nm, user removable, 24 x 16 x 1.1mm |
| Display | 5” 800x480 capacitive touchscreen, 1000 nit daylight visible |
| Enclosure | Anodized CNC machined aluminum |
| Cooling | Active cooling, variable-speed fan (fan-off option) |
| Dimensions | 155mm x 96mm x 67.3mm (6.11” x 3.78” x 2.65”) w/o lens |
| Weight | 1.06 kg (2.34 lbs) without lens |
| VIDEO FORMATS | |
| H.264 | Standardized MP4 files at bitrates up to 60Mbps |
| Cinema DNG Raw | Standard Adobe CinemaDNG raw files |
| TIFF | Standard TIFF raw files with timestamps |
| Storage Devices | SD, USB, SSD, or SMB/NFS network drives |
| IMAGE SENSOR | |
| Resolution | 1920x1080 @ 1000FPS maximum |
| Speed | 2.1Gpx/s |
| Dimensions | 19.2 x 10.8mm (4/3” format, 2.1-Megapixel, 2x Crop Factor) |
| Pixel Pitch | 10um |
| Sensitivity (ISO) | Color - ISO 500 to 8000 Mono - ISO 1000 to 16000 |
| Shutter | Electronic global shutter, 1/fps to 10μs (1/100,000 s) |
| Dynamic Range | 10.3 stops (62.4 dB) |
| Bit Depth | 12-bit |
| BATTERY | |
| Type | EN-EL4a |
| Runtime | 1 hour recording |
| Charge Time | 2 hours (0-80%) with in-camera charger |
| INPUTS/OUTPUTS | |
| Power Input | 17-20V 40W (5.5/2.5mm barrel jack, positive tip) |
| Network | Gigabit Ethernet |
| Trigger | 2 trigger inputs/ frame strobe outputs (BNC & Aux) Adjustable input threshold 0 to 6.6V Electrically isolated trigger input (Aux connector) Trigger with sound, laser, and lightning using accessories |
| Video | HDMI output 720p or 1080p (default) @ 60FPS, video only |
| USB | USB type A (host) and micro-B (device) |
| SATA | eSATA 3Gbps to SATA 2.5” lll SSD (5V power) |
| TRIGGER MODES | |
| End Trigger | Records until a defined delay after trigger |
| Toggle | Starts and stops with button press |
| Exposure Trigger | External signal sets synchronization frame rate |
| Shutter Gating | External signal sets the exposure synchronization and frame-rate |
| Frame Sync Output | Outputs a signal indicating its frame rate and exposure |
| TRIGGER PORTS | |
| BNC | Female BNC connector |
| AUX | Phoenix 1778890 8-pin terminal block connector, including isolated trigger input. |
| SOFTWARE | |
| Control | Through web page or REST interface with USB or CAT ethernet cable |
| Stream | Live or Playback Mode network streaming via RTSP stream and VLC player. |
| APIs | HTTP REST Interface, open-source codebase |
| NETWORK CONTROL | |
| Network Control | Through web page or REST interface with USB or CAT ethernet cable |
| RECORDING MODES | |
| Normal | Records into the ring buffer. Once a trigger occurs, video can be reviewed and saved. |
| Segmented | Video memory is divided into segments, each recording as in the Normal mode above. Number of segments is user selectable. |
| Gated Burst | Frames are captured while trigger is active |
| Live Slow Motion | Short segment of video is recorded and then played back in a loop. |
| NORMAL SPEED RECORDING | |
| Continuous | Video is saved continuously at up to 60FPS to MP4 files on removable storage. Operates like a standard video camera. |
| ASSISTIVE | |
| Focus Aid | Highlights sharp edges to aid focusing |
| Zebras | Rolling diagonal lines indicate clipped (overexposed) areas |
| Viewfinder Zoom | Zooms in to allow easier focusing |
| Overlay | Displays frame and time information on top of footage |
