Hollyland Pyro Ultra 1TX & 2RX

Availability: 7-10 days delivery

SKU

HO-PYU1TX2RX

Add up to 4K60 wireless video transmission to your production using the versatile Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System from Hollyland.

€1,973.75 €1,579.00

Installment Payment   You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
International Purchasing   The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

New

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Package includes

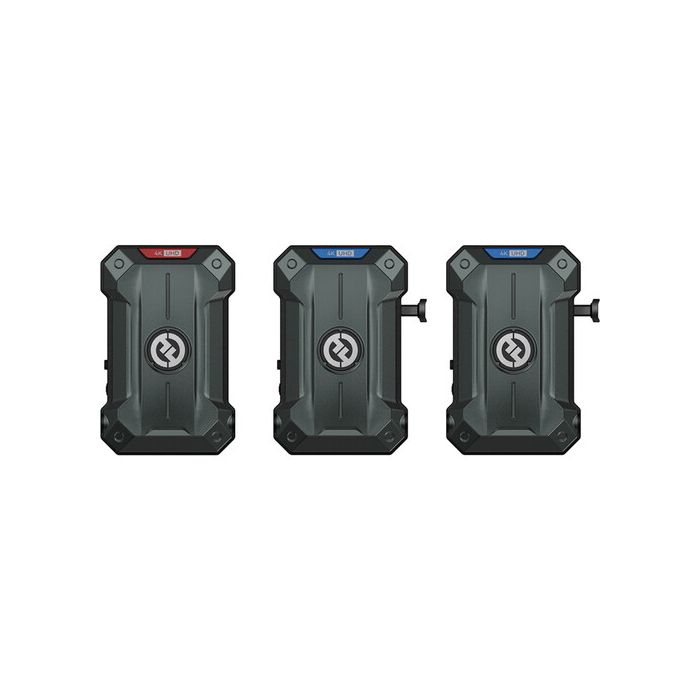

Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System
Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Transmitter
2 x Hollyland Pyro Ultra 4K HDMI/SDI Wireless Video Receiver
4 x Short Antenna
8 x Antenna
USB-C OTG Adapter
Dual Ball Head with Cold Shoe Mount
D-Tap to Locking DC Power Cable
DC Power Adapter (12V, 2A)

Details

Add up to 4K60 wireless video transmission to your production using the versatile Pyro Ultra 4K HDMI/SDI Wireless Video Dual Receiver Transmission System from Hollyland. The system includes a wireless transmitter, two wireless receivers, different-sized antennas, a USB-C adapter, a D-Tap to DC cable, a DC power adapter, and a dual ball head to cold shoe mount adapter. HDMI and SDI ports accept line-of-sight transmission from up to 4900' away. TWiFi transmission technology creates a composite link with automatic frequency hopping for exceptional clarity and a low 20 ms latency. Additional operating modes make for increased capabilities, depending on the needs of your production. The Pyro Ultra is backwards compatible with the entire Pyro family to work seamlessly with your preexisting workflows.

Unlimited Linking

The Pro Ultra ecosystem can be expanded to include unlimited receivers getting footage from a single transmitter unit, all while continuing to deliver stable wireless signals.

TWiFi Transmission Technology

TWiFi is Hollyland's new proprietary codec that creates a composite link out of 2.4 and 5 GHz wireless signals for secure communications. The system can then ensure line-of-sight transmission up to 4900'. On top of this, automatic frequency hopping avoids signal interference in crowded network environments. Dynamic Frequency Selection unlocks more of the wireless spectrum in regulated regions for additional flexibility.

Broadcast Mode

When enabled, Broadcast mode delivers real-time signal monitoring to a wide variety of receiver units from 2300' away. When deactivated, the standard setup supports up to six monitoring screens—four receivers and two mobile apps—up to 4900'.

Focus Mode

When trying to complete precise focus pulls, Focus mode maintains a low latency to ensure a responsive monitoring environment. Latency varies depending on the output resolution of your footage, measuring 20 ms at 1080p30, 40 ms at 1080p60, and 45 ms at 4K60.

Flexible Streaming

The Pyro Ultra features both UVC and RTMP streaming. Plug-and-play connectivity and flexible platform compatibility make the receiver ideal for live production and remote collaboration.

Freeze Frame

The system automatically freezes the last frame on screen when an unexpected cut occurs to give production crews time to recover. You can even set up a custom image as a default display to maintain visual consistency.

Adaptive Output Resolution

The receiver automatically adapts its HDMI or SDI output resolutions to match downstream devices, ensuring compatibility across setups.

More Information

Inputs/Outputs
Antenna I/O	Transmitter/Receiver: 4x RP-SMA Male
Video I/O	Transmitter: 1x HDMI 2.0 Input
	Transmitter: 1x HDMI 2.0 Loop Output
	Transmitter: 1x BNC (3G-SDI) Input
	Receiver: 1x HDMI 2.0 Output
	Receiver: 1x BNC (3G-SDI) Output
Audio I/O	No
Power I/O	Transmitter/Receiver: 1x Barrel Input
Other I/O	Transmitter/Receiver: 1x USB-C
Wireless
Wireless Range	4921.3' / 1500 m
Latency	20 ms
RF Power	≤ 23 dBm
RF Sensitivity	-85 dBm
Format Support
Video Format	HDMI
	UHD 4K: 60/59.94/50/30/29.97/25/24/23.98
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	720p: 60/59.94/50
	SDI
	1080p: 60/59.94/50/30/29.97/25/24/23.98
	1080i: 60/59.94/50
	720p: 60/59.94/50
Power
Input Power	6 to 16 VDC
Power Consumption	Transmitter: 11 W
	Transmitter: 14 W
	Receiver: 7 W
Mounting
Tripod/Accessory Mounting	1/4"-20 Female
General
Dimensions	Transmitter/Receiver: 4.9 x 3.1 x 1.4" / 124.5 x 80 x 34.9 mm
Weight	Transmitter/Receiver: 11.3 oz / 320.00 g
