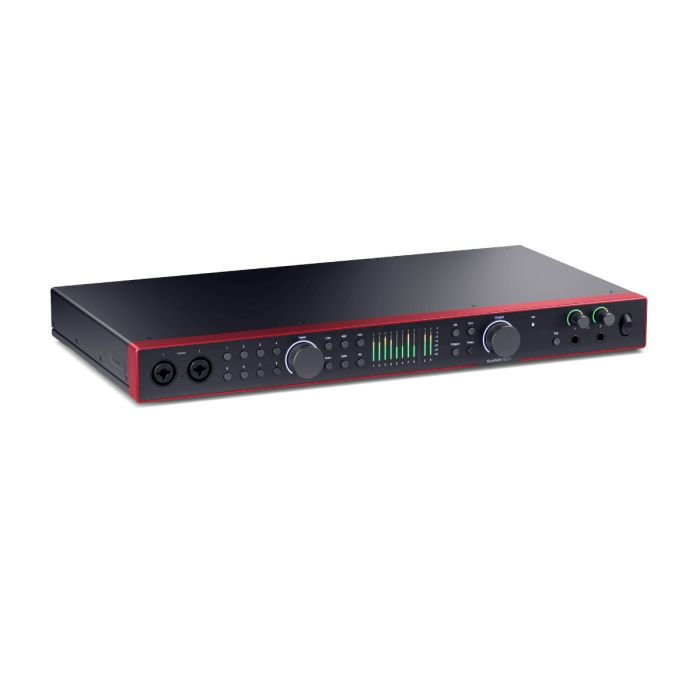

Focusrite Scarlett 18i20 4th Gen
by Focusrite
Availability:
14-20 days delivery
SKU
22560349
18i20 is the studio hub for engineers who need serious I/O. Whether you’re recording drums, a live session, or have plenty of hardware synths, you’ve got eight of our finest ultra-low-noise mic preamps, plus line, instrument, MIDI, S/PDIF, and expandability via ADAT connections. With 26 inputs and 26 outputs, you’re ready for whatever your session demands.
€858.00
€686.40
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Scarlett 18i20 audio interface
- Rack Ears
- 1.5m USB-C to USB-C cable
- USB-C to USB-A adaptor
- IEC power cable
Eight of our most detailed, ultra-low-noise preamps.
Connect your studio to 18i20’s 4th-Generation remote-controlled preamps — Scarlett’s most transparent and detailed ever. 69dB of gain range provides all of the headroom you'll need to get the best result from the most intense multi-track recordings. Control preamp levels from anywhere in the studio using the Focusrite Control 2 apps, giving you the freedom to adjust settings remotely.
Auto Gain and Clip Safe.
Let 18i20 handle your levels. Auto Gain will set all eight microphone preamp levels instantly and Clip Safe keeps them in the sweet spot, automatically tweaking the gain if you’re in danger of clipping. You'll never lose a take again.
All the I/O you need
Play your instruments.
Connect a guitar directly to 18i20’s Hi-Z inputs for an amp-like feel, plug synths and grooveboxes into the eight line inputs, or route your favourite outboard gear through the ten line outputs.
Control MIDI devices.
Use 18i20 as a MIDI interface to receive and send data to your favourite external MIDI-controllable equipment.
Expand your studio.
Increase your channel count with S/PDIF and ADAT connections. Dual ADAT supports 16 inputs and outputs at 44.1/48kHz or eight inputs and outputs at 96kHz. The Word Clock output keeps your external gear perfectly synced.
Mix your way, with independent outputs.
Take full control of your routing and mixing preferences using the Focusrite Control 2 apps, anywhere in the studio.
Dial in the perfect headphone mix for the artist, or route the signal directly to outboard gear to put the finishing touches on your mix.
Dial in the perfect headphone mix for the artist, or route the signal directly to outboard gear to put the finishing touches on your mix.
Get that big console sound with two re-engineered Air modes.
Presence mode boosts your signal’s high-end, bringing the sound to the front of the mix. Create intimate vocal recordings, capture every detail of acoustic guitars, and hear your drum overheads shimmer.
Presence and Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.
Presence and Harmonic Drive mode boosts mid-range harmonics in your sound, making its unique character shine through the mix. Try it on guitars, vocals, or anything else that needs a little more punch.
Huge 122dB dynamic range for incredible recordings.
Scarlett delivers incredible audio quality, with converters direct from our flagship RedNet interfaces — as found in high-end studios around the world.
Powerful sound, powerful control.
Two custom-designed headphone amps deliver clear, powerful sound for high-impedance headphones, offering the best playback ever from a Scarlett.
A built-in talkback mic ensures seamless communication to the artists, while alt monitor switching lets you A/B your mixes between two speaker pairs.
A built-in talkback mic ensures seamless communication to the artists, while alt monitor switching lets you A/B your mixes between two speaker pairs.
All the software you need to make a hit record.
Once you've got started with Ableton Live Lite, Pro Tools Intro+, or six months of FL Studio Producer Edition recording software (all included), the Hitmaker Expansion bundle has everything you need to bring big studio sound to your songs, with an unbeatable range of record-making studio tools from the biggest names in the business.
| Specifications | |
| Overview | |
| Number of Microphone Preamps | 8 |
| Phantom Power | Yes (Independent) |
| Instrument Inputs | 2 |
| Line Inputs | 8 |
| Air Mode | Yes |
| Auto Gain | Yes |
| Clip Safe | Yes |
| Line Outputs | 10 |
| Headphone Outputs | 2 |
| ADAT Inputs | 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz) |
| ADAT Outputs | 2 (16 channels at 44.1/48kHz and up to 8 channels at 96kHz) |
| SPDIF Inputs | 1 |
| SPDIF Outputs | 1 |
| MIDI Inputs | 1 |
| MIDI Outputs | 1 |
| Talkback | Yes |
| Loopback | Yes |
| Connectivity | USB Type-C |
| Protocol | USB 2.0 |
| Form Factor | Desktop / Rack Mountable (1U) |
| Simultaneous I/O | 26 x 26 |
| A/D Resolution | 24-bit/192 kHz |
| Bus Powered | No |
| Dimensions | |
| Height | 46.55mm |
| Width | 442mm |
| Depth | 259.73mm |
| Weight | 3.304kg |
| Supported sample rates | 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz |
| Microphone inputs | |
| Frequency Response | 20-20kHz ± 0.06dB |
| Dynamic Range | 116dB (A-Weighted) |
| THD+N | -100dB @ 8dB gain |
| Noise EIN | -127dBu (A-Weighted) |
| Maximum Input Level | 16dBu |
| Gain Range | 69dB |
| Impedance | 3kΩ |
| Variable Line inputs | |
| Frequency Response | 20-20kHz ± 0.05dB |
| Dynamic Range | 115.5dB (A-Weighted) |
| THD+N | -100dB @ 8dB gain |
| Maximum Input Level | 22dBu |
| Gain Range | 69dB |
| Impedance | 24kΩ |
| Instrument inputs | |
| Frequency Response | 20-20kHz ± 0.05dB |
| Dynamic Range | 113dB (A-Weighted) |
| THD+N | -80dB @ 8dB gain |
| Maximum Input Level | 12dBu |
| Gain Range | 62dB |
| Impedance | 1MΩ |
| Line outputs (Balanced) | |
| Frequency Response | 20-20kHz ± 0.02dB |
| Dynamic Range | 122dB (A-Weighted) |
| THD+N | -112dB |
| Maximum Output Level | 16dBu |
| Impedance | 200Ω |
| Headphone outputs | |
| Frequency Response | 20-20kHz ± 0.1dB @ 33Ω / 300Ω |
| Dynamic Range | 112dB @ 33Ω |
| 116dB @ 300Ω | |
| THD+N | -100dB @ 33Ω (Minimum) |
| -110dB @ 300Ω (Minimum) | |
| Maximum Output Level | 5dBu into 33Ω |
| 11dBu into 300Ω | |
| Maximum Output Power | 57mW into 33Ω |
| 27mW into 300Ω | |
| Impedance | 11Ω |
| Analogue to Digital Converter | |
| THD+N | -110dB |
| Dynamic Range | 120dB |
| Digital to Analogue Converter | |
| THD+N | -115dB |
| Dynamic Range | 130dB (A-Weighted) |
| Power | |
| External | 30W |
| Compatibility | |
| Windows | Intel, AMD, and Arm64 processors supported |
| macOS | Apple Silicon and Intel processors supported |
