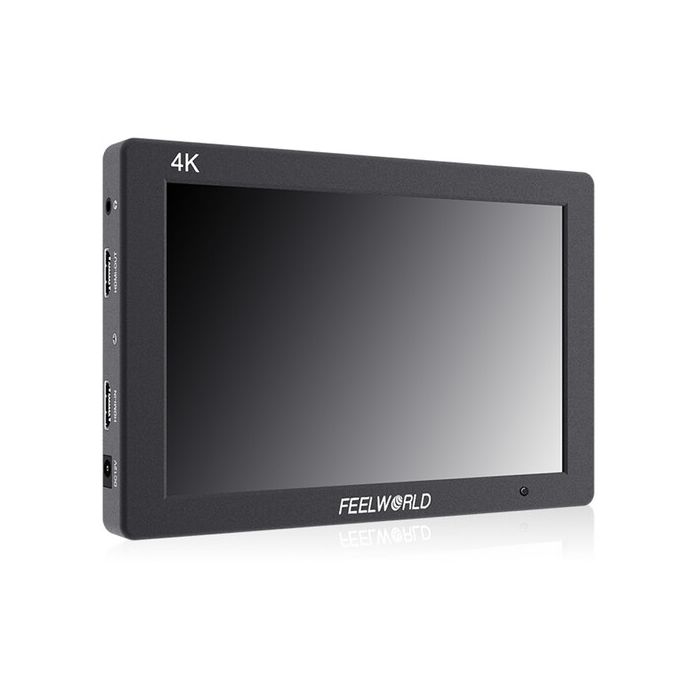

FeelWorld T7 Plus 4K monitor
by FeelWorld7" 1920 x 1200 Display
4K HDMI In and Out
Wide 160° Viewing Angle
1200:1 Contrast, 450 cd/m² Brightness
Built-In Waveform Monitoring
Mini Hot Shoe Mount
Two 1/4"-20 Threads
F970 Battery Plate
Included Sunshade
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld T7 Plus 7" IPS On-Camera Monitor with 3D LUT, Waveform & Vectorscope
- Micro-HDMI Cable
- Sunshade
- Mini Hot Shoe Mount
- USB Adapter Cable
- F970 Battery Plate
- Allen Key
Upgrade your on-camera viewing experience while shooting in the field to a Full HD monitor with the lightweight FeelWorld T7 Plus, a lightweight 7" IPS monitor outfitted with simultaneous vectorscope, histogram, and both audio phase and level monitoring. The T7 Plus supports 4K HDMI in and out, and it uses Rec. 709 color standard with color calibration for accurate color reproduction and vivid image viewing. The 1/4"-20 threads on the top and bottom of the monitor allow you to mount it on the included mini hot shoe mount adapter and secure it to the top of your camera.
The monitor boasts 1200:1 contrast and 450 cd/m² brightness, as well as an F970 battery plate on the back panel. The operating system of the T7 Plus includes tools for framing, focus, and exposure such as image flip, zoom, and anamorphic modes. Up to 32 custom 3D LUTs can be loaded into the interface using the USB adapter for intuitive color calibration. Further customization can be achieved by programming the onboard button controls as shortcuts to these various modes for adaptability on location.
Key Features
- Ultrathin 18mm thickness
- Full HD 1920 x 1200 resolution
- 323 ppi pixel density prevents the eye from defining individual pixels
- Durable, lightweight aluminum alloy housing
- 160° viewing angle ensures clear image as operator shifts position
- Easy button-based operation with custom shortcut keys
- Mini hot shoe adapter with adjustable 180° viewing angle and 360° rotation at the base
- Sunshade for increased visibility outdoors
Custom 3D LUTs
Import up to 32 files by connecting with USB adapter cable and interface
Waveform Monitoring
- Choose from RGB, YUV, and Y parade
- Vectorscope, histogram, audio, and level displays
- Shows all technical aspects of video and audio at once while monitoring visual
- Functions can be opened separately or all together
Video Assist Functions
- Anamorphic mode (1.3x, 2.0x, 2.0x mag, user-defined adjustment: 1.20X~2.00X)
- Center marker
- Check field (red/green/blue/mono)
- Color temperature
- False color
- Histogram (RGB1, Y, RGB2)
- Image flip
- Image freeze
- Nine grid
- Peaking focus assist (color switch capabilities)
- Pixel to pixel
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Safe area (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Scan mode (under, over)
- Waveform (RGB, Y, YUV)
- Zebra
- Zoom (4x, 9x, 16x)
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Resolution | 1920 x 1200 |
| Aspect Ratio | 16:10 |
| Viewing Angle | Horizontal: 80° Vertical: 80° |
| Touchscreen | No |
| Maximum Brightness | 450 cd/m2 |
| Contrast Ratio | 1200:1 |
| HDR Compatibility | None |
| Pixels Per Inch (ppi) | 323 ppi |
| Real-Time LUT Monitoring | None |
| Image Controls | Anamorphic De-Squeeze, Check Field, Color Temperature Selection, False Color, Focus Assist, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Vectorscope, Waveform, Zebra |
| Video | 1 x HDMI Type A Input 1 x HDMI Type A Output |
| Audio | 1 x 1/8" / 3.5 mm Headphone Output |
| Built-In Speaker | 1 |
| Power | 1 x Barrel Input |
| Other I/O | None |
| Media/Memory Card Slot | None |
| Wi-Fi | None |
| Video Format | HDMI UHD 4K: 30/29.97/25/24/23.98 1080p: 60/59.94/50/30/29.97/25/24/23.98 720p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 480i 576i 480p 576p |
| DC Input Power | 7 to 24 VDC |
| Battery Type | 1 x Gold Mount |
| Power Consumption | 8 W |
| Mounting | 2 x 1/4"-20 Female |
| Operating Temperature | -4 to 131°F / -20 to 55°C |
| Storage Temperature | -22 to 149°F / -30 to 65°C |
| Material of Construction | Aluminum |
| Dimensions | 7.1 x 4.7 x 0.7" / 180 x 120 x 18 mm |
| Weight | 11.3 oz / 320 g, Excluding Battery Plate 12.3 oz / 350 g, Including Battery Plate |
