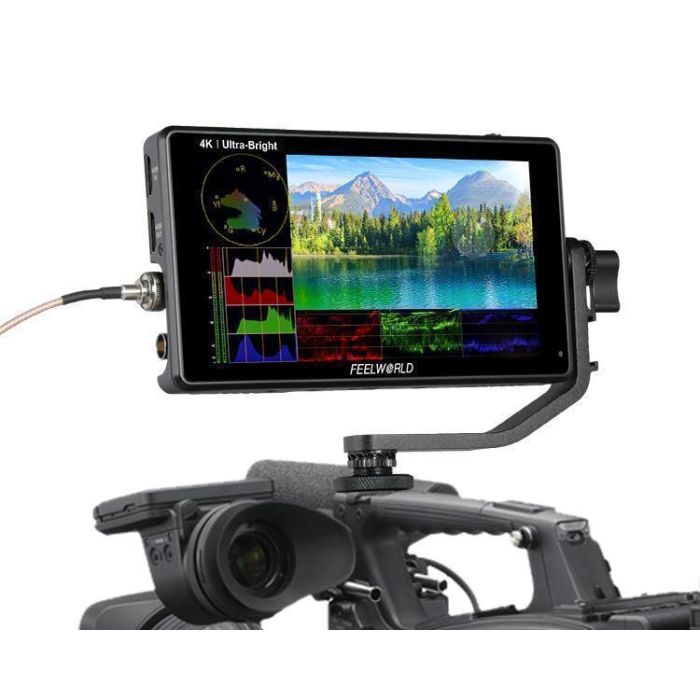

Feelworld LUT6S 6" Touch Screen SDI Monitor
by
FeelWorld
6" IPS
1920x1080 pixels
16:9
2600cd/m²
€478.00
€382.40
Installment Payment
You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment .
Fast Delivery
For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms .
International Purchasing
The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
Feelworld LUT6S 6" Touch Screen SDI Monitor Mini/ Micro HDMI to HDMI Cable Tilt Arm
Support 3D LUT Log to Rec.709, user 3D LUT Upload Support Touch Menu Support HDR monitoring High Resolution: Full HD 1920x1080, High Contrast: 1000:1 2600nit Daylight Viewable 160° wide viewing angles IPS Panel Provides auxiliary power out; allowing shooters to power their cameras Parade (RGB, YUV, Y) VectorScope RGB Histogram Histogram Peaking Focus Assist (red, green,blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable) False Colors Zebra Exposure (1%~100% adjustable) Scan Mode (Under Scan, Over Scan) Zoom (100%~300%) Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag) Pixel to Pixel Nine Grid Center Marker Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1) Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1) Marker Color (red, green, blue, white, black, yellow) Check Field (red, green, blue, gray) Image Flip (H, V, H/V) Image Freeze Color Temperature Adjustment
Display Spec.
Model LUT6S
Screen Size 6" IPS
Resolution 1920x1080 pixels
Pixel Pitch 0.069 (L) x 0.069 (W) (mm)
Aspect Ratio 16:9
Brightness 2600cd/m²
Contrast Ratio 1000:1
Backlight LED
Viewing Angle 80°/80°(L/R) 80°/80°(U/D)
Input
1 X BNC 3G-SDI
1 X HDMI HDMI
Output
1 X BNC 3G-SDI
1 X HDMI HDMI
1 X DC Barrel (3.5mm outer, 1.1mm inner) barrel output for powering cameras via camera specific adaptor.
Audio
Audio 3.5mm Stereo Headphone
SDI Input Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
2048x1080i (60/59.94/50)
2048x1080p (60/59.94/50/30/29.97/25/24/23.98)
SDI Output Support Format
720p (60/59.94/50/30/29.97/25/24/23.98)
1080i(60/59.94/50)
1080p (60/59.94/50/30/29.97/25/24/23.98)
HDMI Input/ Output Support Format
480i/576i/480p/576p
1080i (60/59.94/50)
720p (60/59.94/50/30/29.97/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/23.98)
3840x2160p (30/29.97/25/24/23.98)
4096×2160p (30/29.97/25/24/23.98)
General
Input Voltage DC7～24V
Power Consumption ≤16W
Working Temperature -20°C~50°C
Storage Temperature -30°C~60°C
Install Way 1/4"-20 Thread Socket (Right, Bottom)
Battery Plate F970 Battery Plate
Unit Size 162Lx93.2Hx29D (mm)
Unit Weight 300g
Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly.
Advanced Features
* Support 3D LUT Log to Rec.709, user 3D LUT Upload
* Support Touch Menu
* Support HDR monitoring
* Parade (RGB, YUV, Y)
* All Waves
* Vector
* RGB Histogram
* Brightness Histogram
* Embedded Audio
* Peaking Focus (red, green, blue, white, yellow five peaking colors optional; 1~10 peaking level adjustable)
* False Colors
* Zebra Exposure (1%~100% adjustable)
* Check Field (Red, Green, Blue, Gray)
* Scan Mode (Under Scan, Over Scan)
* Anamorphic Mode (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
* Image Flip (H, V, H/V)
* Image Freeze
* Center Marker
* Safety Marker (70%, 80%, 90%, 16:9, 16:10, 4:3, 5:4, 1.85:1, 2.35:1)
* Ratio Marker (16:9, 16:10, 4:3, 1.85:1, 2.35:1)
* Marker Color (red, green, blue, white, black, yellow)
* Color Temperature Adjustment
* Nine Grid
* Zoom (100%~300%)
* Aspect Ratio
* Pixel to Pixel
