Power the KBC20 controller using the included 12 VDC power supply or via PoE (Power over Ethernet) using your router or network switch.

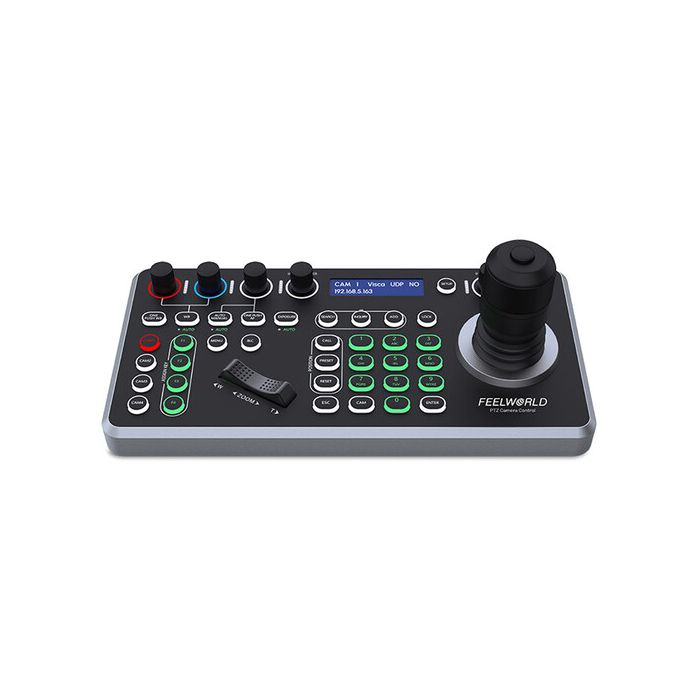

Feelworld KBC20 PTZ Camera Controller
by FeelWorld
Availability:
14-20 days delivery
SKU
KBC20
The KBC20 PTZ Camera Controller with 4D Joystick from FeelWorld enables you to control your streaming, live event, educational, or house-of-worship setup using ONVIF, IP VISCA, VISCA, Pelco-D/P, and RS-232, -422, and -485 protocols.
€787.50
€630.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld KBC20 PTZ Camera Controller with Joystick
- 12 VDC Power Adapter
- RS45-DIN8 Cable
Multiple-Protocol PTZ Controller
The KBC20 PTZ Camera Controller with 4D Joystick from FeelWorld enables you to control your streaming, live event, educational, or house-of-worship setup using ONVIF, IP VISCA, VISCA, Pelco-D/P, and RS-232, -422, and -485 protocols. It uses Ethernet, RS-232, RS-422, and RS-482 terminals to control up to 255 cameras via network and analog modes.
Variable 4D Joystick
The intuitive control panel provides a zoom rocker, focus, iris, and speed knobs, LCD status display, and camera selection buttons. It features a 4D joystick with smooth pan, tilt, zoom, and focus control for precise live production moves.
Real-Time Display
The built-in LCD screen provides a real-time display of each camera's working status, improving efficiency.
Control up to 255 PTZ Cameras
Connect the controller and cameras to the same LAN and IP address to control up to 255 PTZ cameras. Four shortcut buttons enable you to quickly switch between multiple cameras and 255 presets let you easily recall positions. Use Cat 6e or higher cable to control your cameras from up to 328' away.
Power Options
| General | |
| Number of Supported Cameras | 255 Channels |
| Supported Control Protocols | IP |
| ONVIF | |
| Pelco-D | |
| Pelco-P | |
| RS-232 | |
| RS-422 | |
| RS-485 | |
| VISCA | |
| Control I/O | 1x Block 5-Pin (Pelco-D, Pelco-P, RS-422, VISCA) |
| 1x RJ45 (Pelco-D, Pelco-P, RS-232, RS-422, RS-485, VISCA) | |
| Other I/O | 1x Block 8-Pin (Tally) |
| 1x RJ45 (LAN) | |
| Controls | 1x Joystick |
| 6x Zoom, Shutter Speed, Manual-Focus, Gain, Camera Movement Speed Knobs | |
| 1x Zoom Rocker | |
| 4x Camera Selection Buttons | |
| Programmable, Iris Adjustment, Auto-Focus, Manual-Focus, Preset Selection, White Balance Buttons | |
| Presets | 255 |
| Display | |
| Panel Type | LCD |
| Touchscreen | No |
| Power | |
| PoE Support | Yes: PoE+ 802.3at, PoE 802.3af |
| Power Connectors | 1x Barrel / Coaxial |
| Power Consumption | ≤6 W |
| Input Power | 12 VDC at 1 A |
| Physical | |
| Operating Conditions | 32 to 122°F / 0 to 50°C at 1 to 90% Humidity |
| Storage Conditions | -4 to 158°F / -20 to 70°C |
| Security Lock Support | Kensington Lock Slot |
| Dimensions | 10.6 x 5.3 x 4.3" / 270 x 135 x 110 mm |
| Weight | 2.9 lb / 1.3 kg |
