Feelworld H5 Monitor
by FeelWorldFEELWORLD H5 is a portable 5.5-inch high brightness 12G-SDI monitor,supports up to 2160p/60 format, and have a series of auxiliary functions that's perfect for digital cinema, broadcast, live production.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1× Monitor
- 1× Micro HDMI Cable
- 1× HDMI Cable
- 1× Mini Hot Shoe Mount
- 1× USB-A to USB-C Adapter
- 1× Cable Management Tie
- 1× Manual

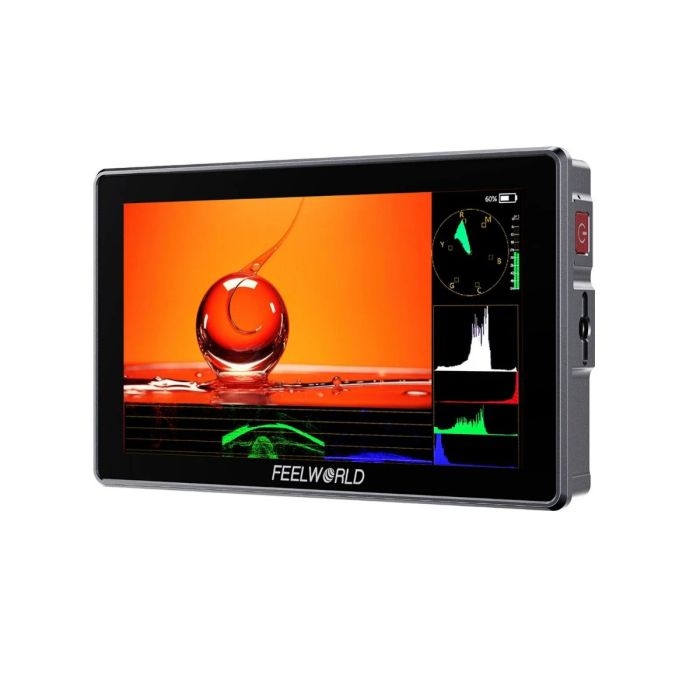

Compact. Powerful. Bright
FEELWORLD H5 is a portable 5.5-inch high brightness 12G-SDI monitor,supports up to 2160p/60 format, and have a series of auxiliary functions that's perfect for digital cinema, broadcast, live production.
12G-SDI High Speed Transmission
Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate.
Professional Broadcast Quality
H5 can not only handle handle monitoring from all your SD, HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI sources, but also simultaneously loop-out high quality broadcast video images, providing you the perfect future proof monitoring solution and bringing the best quality possible and a fluid smooth viewing experience!
Clearly checking and capture every nuance
With extremely high resolution 5.5-inch IPS panel，a wider field of view and clearly present more detailed image. 1.07B color provides a richer range of colors. 160 ° wide viewing angle, support multiple members to monitor the image from all angles, facilitate team collaboration for filmmaking.
Professional CalMAN Software Calibration, DCI-P3 Cinema Color Gamut
Each monitor under goes color calibration via CALMAN professional software prior to leaving the factory,ensure color accuracy and good reproduction.Built-in DCI-P3,REC709 color space suitable for different video production workflow.
1200nits, Visible in Sunlight
High brightness 1200nit is viewable in almost every kind of light. Indoors, outdoors or anywhere you need.
Rugged Aluminium Housing
Adopts CNC aluminium housing, durable and portable, suitable for various shooting environment.
Custom Shortcut Keys
On the top of H5 comes with three custom shortcut buttons , the photographer can set the shortcut functions in advance according to the actual needs of the shooting site, and quickly call up the required functions during the shooting process, greatly improving the shooting efficiency.
Sensitive Touch Screen Control
The innovative touch screen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate via scroll wheel key.
| Model | S7 |
| Screen Size | 7" IPS |
| Resolution | 1920x1200 pixels |
| Pixel Pitch | 26.25 (H) x 78.75 (W) (um) |
| Aspect Ratio | 16:10 |
| Brightness | 1600cd/m² |
| Contrast Ratio | 1200:1 |
| Backlight | LED |
| Viewing Angle | 80°/80°(L/R) 80°/80°(U/D) |
| Input | |
| 1 X SDI | 12G-SDI |
| 1 X HDMI | HDMI 2.0 |
| 1 X Tally | 9 pin |
| 1 X SD Card | SD Card Slot (LUT files and firmware update file import) |
| Output | |
| 1 X SDI | 12G-SDI |
| 1 X SDI | 3G-SDI |
| 1 X HDMI | HDMI2.0 |
| General | |
| Input Voltage | DC7～24V |
| Power Consumption | ≤16W |
| Working Temperature | -10°C~60°C |
| Storage Temperature | -30°C~70°C |
| Install Way | 1/4"-20 Thread (Left,Right,Bottom) |
| Unit Size | 186Lx116.9Hx25D(mm) |
| Unit Weight | 550g |
| Color Box Size | 222L*158W*78H(mm) |
| Outer Carton Qty | 10 |
| Outer Carton Size | 535*230*405 (mm) |
| Gross Weight | kgs |
| Note: When you turn off the monitor, you need to press the power button, and you can't pull out the power cable directly. | |
