Feelworld FW1018SPV1 SDI monitor
by FeelWorld- 1920 x 1200 Screen Resolution
- SDI, HDMI, Analog I/O; Tally Input
- Up to DCI 4K Resolution Support
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld 10" 4K IPS Professional Field Monitor
- L-Series Battery Plate
- Mini HDMI Cable
- Foldable Sunshade
- Shoe Mount
- Tally Kit
- U-Bracket

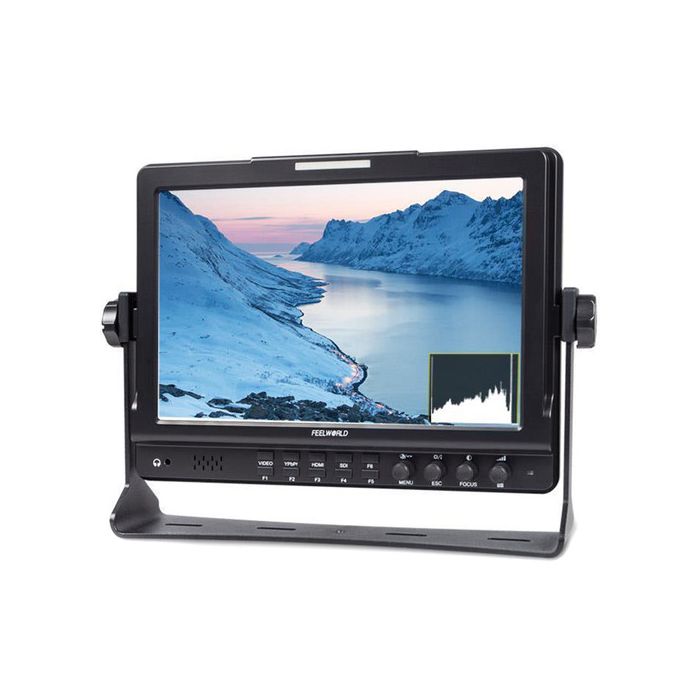

Featuring a large screen, 1920 x 1200 resolution, and many image analysis tools, the 10" 4K IPS Professional Field Monitor from FeelWorld allows you to frame your shots with accuracy. It features 1/4"-20 mounting threads so you can attach it to your camera or camera rig, and it comes with a U-bracket so you can use it desktop-mounted. A sunshade is also supplied that lets you confidently monitor your image outdoors.
The monitor features SDI, HDMI, and analog inputs and outputs, audio and tally inputs, and a headphone jack and speaker. It supports up to DCI 4K resolution signals at 24 fps via the HDMI input and up to 1080p60 via the 3G-SDI input. Up to six of the image analysis tools can be assigned to function buttons on the front panel. An L-series battery plate comes included with the monitor but can be switched out for optional LP-E6, D28S, V-mount, or Gold mount plates. A battery is sold separately.
Key Features
- 1920 x 1200 screen resolution
- 170° IPS viewing angle
- SDI, HDMI, and analog inputs and outputs
- Audio and tally inputs
- Headphone jack and speaker
- Supports up to DCI 4K resolution signals at 24 fps via HDMI
- Supports up to 1080p60 via 3G-SDI
- Six assignable function buttons on front panel
- L-series battery plate (interchangeable; D28S, LP-E6, V-mount, or Gold mount plates supported)
- 320 cd/m² brightness
- 800:1 contrast ratio
Image Analysis
- Brightness histogram
- Peaking focus assist
- False colors
- Zebra exposure (1-100 IRE adjustable)
- Audio level meters for embedded audio monitoring
- Check field (red, green, blue, mono)
- Camera mode
- Anamorphic mode (1.3x, 2.0x, 2.0x) - allows you to see the image unsqueezed, even if your camera does not de-squeeze in-camera
- Image flip (H, V, H/V)
- Image freeze
- Center marker
- Screen marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Ratio marker (4:3, 13:9, 14:9, 15:9, 16:9, 1.85:1, 2.35:1)
- Color temperature adjustment
- Nine-grid (zoom in on an image to up to full screen - up to 1080p input only)
- Zoom (4x, 9x, 16x - up to 1080p input only)
- Pixel-to-pixel (up to 1080p)
- Zoom-all (up to 1080p)
- U/D zoom (up to 1080p)
- L/R zoom (up to 1080p)
FeelWorld FW1018 Specs
Display
|
Panel Type |
IPS-Type LCD |
|
Display Size |
10.00" / 25.4 cm |
|
Resolution |
1920 x 1200 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 170° (85/85) |
|
Touchscreen |
No |
|
Maximum Brightness |
320 cd/m2 |
|
Contrast Ratio |
800:1 |
|
Dot Pitch |
0.113 x 0.113 mm |
|
Real-Time LUT Monitoring |
No |
I/O
|
Video |
1 x BNC (3G-SDI) Input |
|
Audio |
1 x 2RCA Input |
|
Built-In Speaker |
1 |
|
Power I/O |
1 x 4-Pin XLR Input |
|
Other I/O |
1 x Tally (DE-9/DB-9) |
|
Media/Memory Card Slot |
None |
Format Support
|
Video Format |
SDI |
Power
|
DC Input Power |
6 to 36 VDC |
|
Battery Type |
1 x L-Series (Interchangeable Mount) |
|
Power Consumption |
12 W (Maximum) |
Mounting
|
Mounting |
3 x 1/4"-20 Female |
Environmental
|
Operating Temperature |
-4 to 131°F / -20 to 55°C |
|
Storage Temperature |
-22 to 149°F / -30 to 65°C |
General
|
Dimensions |
10.2 x 7.5 x 1.6" / 26 x 19 x 4 cm |
|
Weight |
1.76 lb / 0.8 kg |
Packaging Info
|
Package Weight |
3.57 lb |
|
Box Dimensions (LxWxH) |
12.05 x 10.6 x 3.35" |
