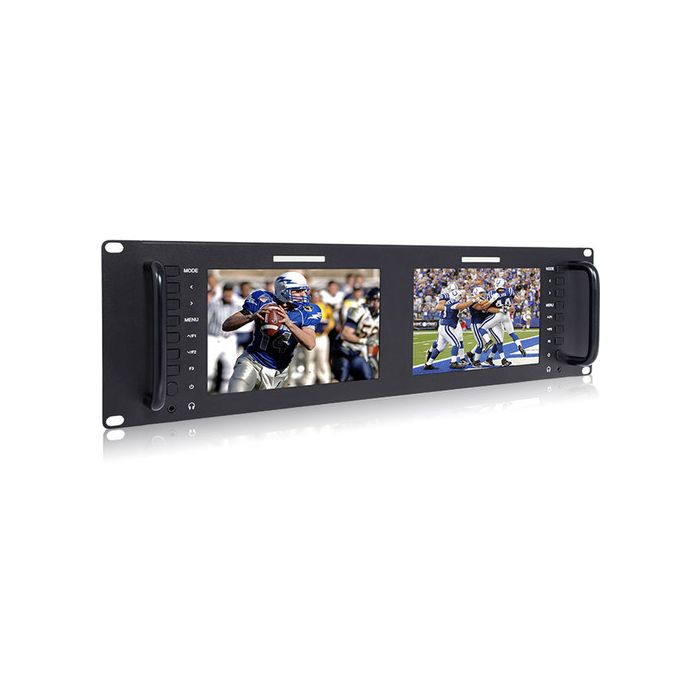

Feelworld D71 Rack mount monitor
by FeelWorld- Two 7" 1280 x 800 IPS Displays
- 3G-SDI, HDMI, and Composite BNC I/O
- Up to 1080p60 Signal Input
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- FeelWorld D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor
- 12 VDC, 3A Power Adapter
- Tally Kit
Featuring two 7" displays in an ultra-slim 3 RU design and offering a LAN port for GPIO network control, the D71 Dual 7" 3 RU Rackmount 3G-SDI/HDMI LCD Monitor from FeelWorld is designed to provide efficient broadcast monitoring of up to two 1080p60 signals. The D71 model has 3G-SDI, HDMI, and composite BNC inputs and outputs per display, as well as RCA audio inputs for each panel. A headphone outputs is provided for each panel for monitoring audio. There's a single tally port on the rear and a three-color tally light above each display. The displays are IPS panels with a 1280 x 800 resolution and 178° wide viewing angle, providing for more consistent monitoring.
Over the LAN 100 port, multiple D71 units can be controlled at the same time via a single control software. The D71 comes in a metal housing that allows for optimal heat dissipation and has cast-iron handgrips on the sides for convenient handling when installing into or removing from a rack.
A variety of image analysis functions includes peaking focus assist, check field, pixel-to-pixel, zoom all, and more, and three function buttons per monitor are provided on the front panel that these can be assigned to. For power, a barrel input and 4-pin XLR port are provided on the rear. A 12 VDC power adapter is included for the barrel input while an optional standard XLR power adapter can alternatively be used instead.
Key Features
- Two 7" 1280 x 800 resolution IPS displays in an ultra-slim 3 RU design
- LAN port for GPIO network control of up to multiple units
- 3G-SDI, HDMI, and composite BNC I/O
- Up to 1080p60 signal input
- 178° viewing angle
- 400 cd/m² brightness
- 800:1 contrast ratio
- RCA audio inputs
- Headphone outputs
- Single tally port
- Three-color tally light above each display
- Three user-assignable function buttons per display
- DC barrel / 4-pin XLR power ports (12 VDC power adapter included)
- Metal housing allows for optimal heat dissipation
Image Analysis Tools
- Peaking focus assist (red highlight over parts of the monochrome image)
- Check field (red, green, blue, mono)
- Pixel-to-pixel
- Center marker
- Safe marker (80, 85, 90, 93, 96, 2.35:1)
- Image flip (horizontal, vertical, horizontal/vertical)
- Image freeze
- Zoom all
- U/D and L/R zoom
- Custom color temperature
FeelWorld D71 Dual Display Specs
Display
|
Panel Type |
IPS-Type LCD |
|
Display Size |
7.0" / 17.8 cm |
|
Resolution |
1280 x 800 |
|
Aspect Ratio |
16:10 |
|
Viewing Angle |
Horizontal: 178° (89/89) |
|
Touchscreen |
No |
|
Maximum Brightness |
400 cd/m2 |
|
Contrast Ratio |
800:1 |
|
Dot Pitch |
0.117 x 0.117 mm |
I/O
|
Video |
2 x BNC (3G-SDI) Input |
|
Audio |
2 x 2RCA Input |
|
Built-In Speaker |
None |
|
Power I/O |
1 x XLR 4-Pin Input |
|
Other I/O |
1 x Tally (DE-9/DB-9) |
|
Media/Memory Card Slot |
None |
Format Support
|
Video Format |
SDI |
Power
|
DC Input Power |
9 to 24 VDC |
|
Battery Type |
None |
|
Power Consumption |
20 W (Maximum) |
Mounting
|
Rack Form Factor |
3 RU |
Environmental
|
Operating Temperature |
-4 to 131°F / -20 to 55°C |
|
Storage Temperature |
-22 to 149°F / -30 to 65°C |
General
|
Material of Construction |
Aluminum |
|
Dimensions |
19 x 5.2 x 1.2" / 48.3 x 13.2 x 3.1 cm |
|
Weight |
4.19 lb / 1.9 kg |
Packaging Info
|
Package Weight |
5.585 lb |
|
Box Dimensions (LxWxH) |
21 x 8.2 x 4.6" |
