DZOFilm Pavo 180mm T2.8 -Neutral Coating- PL&EF mount (meter)

by DZOFilm
Availability: 7-10 days delivery
SKU
DZO-PA18028PLMN

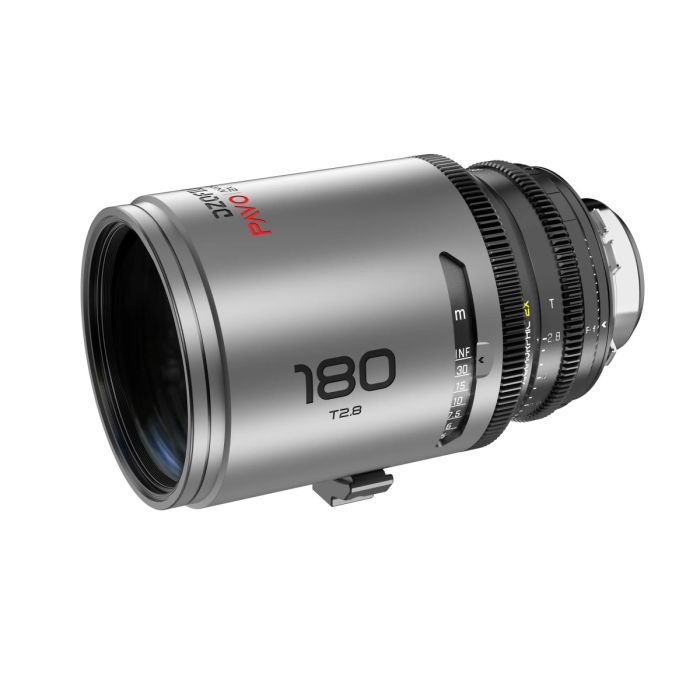

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 180mm T2.8 2x Anamorphic Prime Lens from DZOFilm.

€6,373.75 €5,099.00
New

Package includes

  • DZOFilm PAVO 180mm T2.8 2x Anamorphic Prime Lens (Neutral Flares, PL/EF Mount, Meter)
  • Front Cap
  • Rear Cap (PL)
  • EF Bayonet
  • Rear Cap (EF)
  • 2 x Packet of Screws
  • Set of Shims
  • Screwdriver
  • Set of Stickers

Capture stunning cinematic images with a vintage anamorphic look using this PAVO 180mm T2.8 2x Anamorphic Prime Lens from DZOFilm. Designed to cover Super35 sensors of cine-style cameras, this lens has a maximum aperture of T2.8 and employs 2x magnification, thus achieving what is commonly referred to as “true” anamorphic imaging with a 2.39:1 aspect ratio and boasting exceptional “waterfall” bokeh and evenly layered, horizontal neutral flares.

  • Covers Super35 | T2.8-T22 Aperture Range
  • Interchangeable PL/EF Mount
  • Evenly Layered, Neutral Streak Flares
  • Compressed Look, Shallow Depth of Field
  • Soft, Elliptical Bokeh
  • Focus Marks in Meter
  • EF Bayonet Included

The telephoto 180mm lens is a longer focal length that produces a shallower depth of field, compressing environmental space and isolating characters against a creamy background. The PAVO’s PL mount can quickly be switched to an EF mount using the included EF bayonet. Focus marks are defined in meter, and the compact size and lightweight design of the lens make it an ideal option for cameras mounted on drones, mechanical and electronic stabilizers, and in handheld situations where keeping weight to a minimum is critical.

Maximum Aperture T2.8
Minimum Aperture T22
Lens Mount ARRI PL
  Canon EF with Included Adapter
Interchangeable Mount Yes
Lens Format Coverage Super35/APS-C
Image Circle 31.5 mm
Angle of View Not Specified by Manufacturer
Focus Scales Imperial
Optical Design 16 Elements in 11 Groups
Filter Thread 86 mm
Minimum Focus Distance From Camera Sensor: 40.9" / 104 cm
Maximum Magnification Ratio 1:2
Diaphragm Blades 16
Image Stabilization No
Gear Standard Focus: 0.8 MOD
  Iris: 0.8 MOD
Gear Rotation Focus 300°
  Iris 79°
Electronic Communication No
Coatings Multi-Coating
Diameter Front: 3.7" / 95 mm
Length 6.3" / 160 mm
Weight 4.3 lb / 1.95 kg
