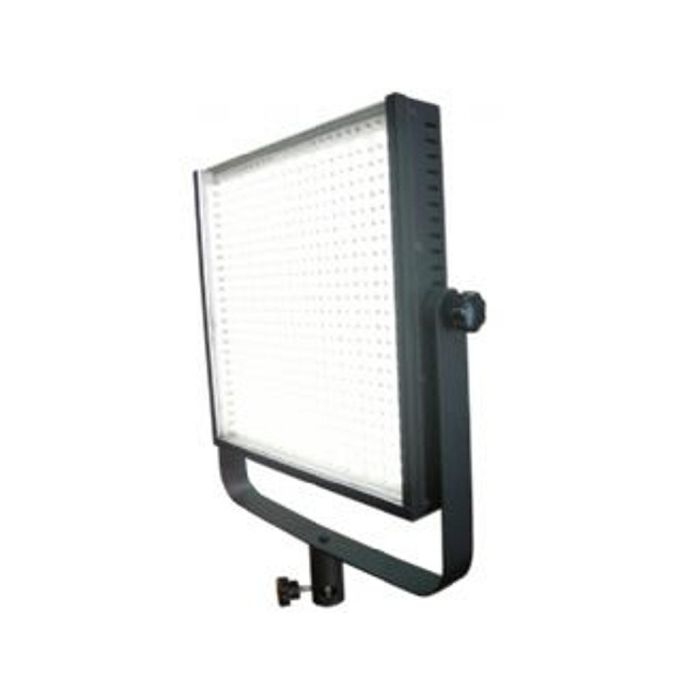

Dynacore ELD/T 1X1 Led Panel
3200-5600K, 576 Leds, V-lock adapter, DMX control, control display
- V-Mount Battery Plate
- AC Adaptor
- Yoke with Stand Mount
- Soft Light Diffuser
- Enhanced Light Diffuser
The brightness change is shown clearly on the screen by number from 0-100 when dimmer either by knob on the back or by DMX remote control. The knob is pressed down to select the brightness dimming and channel control orderly, which means press the knob 1 time, you can change the brightness by turning the knob and press it 1 more time to change the signal channel.
It runs on AC power through adapter, or camera battery through the mount adapter (V-lock or Gold mount). The mount can be easy changed.
Bicolor Model is with 288pcs 3200K LED lamps and 288pcs 5600K LED lamps, you may get any color temperature you need from 5600K to 3200K, or any temperature in between.
2 diffusers are supplied.
Soft light diffuser to minimize the dazzling light.
And another diffusion sheet to improve the lighting output effect.
Together with the high efficiency LED luminaries, soft, even and bright light output is achieved with low infrared and ultraviolet properties, no dazzling and glare.
Weight : 1.25kg (2.76 lbs)
Power Draw : 50W at 24V, 50W at 12V
Power Supply : DC12 - 24V, AC Adapter 100 - 240V
V Mount Power Supply : DC12 - 17V
Color Temperature : can be changed within the range from 3200K to 5600K
LEDs : 576pcs
Operating Temperature : -30~+55oC ( -22~+131oF)
Light Output :
for 3200K -
2400lux at 1.2m (3.9 ft)
1200lux at 1.8m (5.9 ft)
720lux at 2.4m (7.9 ft)
420lux at 3.2m (10.5 ft)
for 5600K -
2600lux at 1.2m (3.9 ft)
1350lux at 1.8m (5.9 ft)
780lux at 2.4m (7.9 ft)
500lux at 3.2m (10.5 ft)
