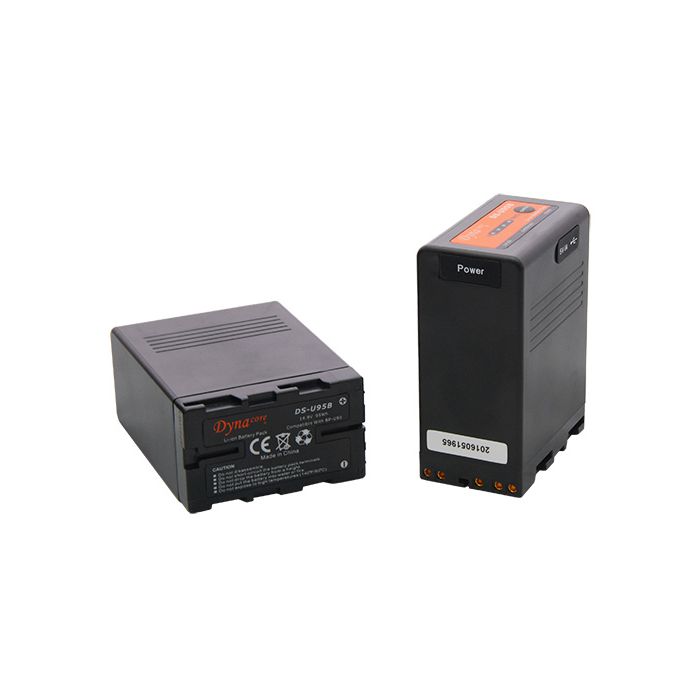

Dynacore DS-U95B 6400mAh D-tap USB BP/U60 Battery
by DynacoreIntelligent Li-ion battery applies to SONY HDV camera,such as PMW-EX1R/EX3/F3/100/200.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
Dynacore DS-U95B 6400mAh D-tap USB BP/U60 Battery
Dynacore DS-U95B is a 14.8V, 95Wh Li-ion DV battery that completely compatible with SONY PMW-EX1, EX1R, EX3, F3, 100, 200, without DC cable, and can display remaining power info on cameras.
The battery offers a D-tap DC socket for extension power output, and a 5V/1A USB socket for mobile devices (cell phone etc) charging.
The 4-level LED indicator can give you a quick view of remaining power before using, and the strong housing, intelligent circuit will protect the battery from shocking, abnormal current, voltage and temperature.
1.High-power Li-ion battery with the capacity up to 95Wh.
2.Intelligent Li-ion battery applies to SONY HDV camera,such as PMW-EX1R/EX3/F3/100/200.
3.Built-in 4-level LED power indicator shows accurately the remaining battery capacity.
4.Built-in D-Tap connector for camera light.
5.USB 2.0 5V/1A output.
6.Built-in multiple protective circuit design to prevent over charge, over discharge,over current, short circuit, etc.
Build-in D-tap DC Output Socket
A D-tap DC output socket is equipped on the side of DS-U95B battery, for DC14.8V (Nominate) connection.
You can connect on-camera LED light, monitor or wireless transmitter on the D-tap socket, and get power simultaneously with camera.
The Max power from D-tap is 50W, 3.5A.
Build-in 5V/1A USB Socket
Use DS-U95B as Power Station to your cell phone! It’s rather a fantastic function
to have a USB socket on the DV battery!
Connect your smart phone or pad to the USB socket, press the “Check” button, and then the DS-U95B starts to output 5V/1A power to charge your devices!
Model |
DS-U95B |
Compatibility |
SONY BP-U60 |
Voltage |
14.8V |
Capacity |
6400mAh/95Wh |
Max Output |
55W,3.5A |
Dimension |
42(mm)x 70(mm) x 95(mm) |
Weight |
0.42Kg |
Applicable Camera |
SONY PMW-EX1/3/F3, PMW100/200,PMW-EX280, PXW-FS7, PXW-X160/180, etc. |
Operation Instruction
1. Put the battery into camera slot along the arrow direction as indication in Fig.4 and lock it.
2. Remove the serum cap for D-TAP output and insert the plug for flashlight.
3. Press the power button for 3 seconds and USB output (Fig.1) is activated for charging portable equipment, such as mobile phone and Pad.
Note: USB output will not be deactivated even when the power button is pressed during the charging process.
USB output will be automatically deactivated under the following circumstances:
①. Equipment is fully charged;
②. Equipment is removed during the charging process;
4. Cover the serum cap after use for dust prevention.
