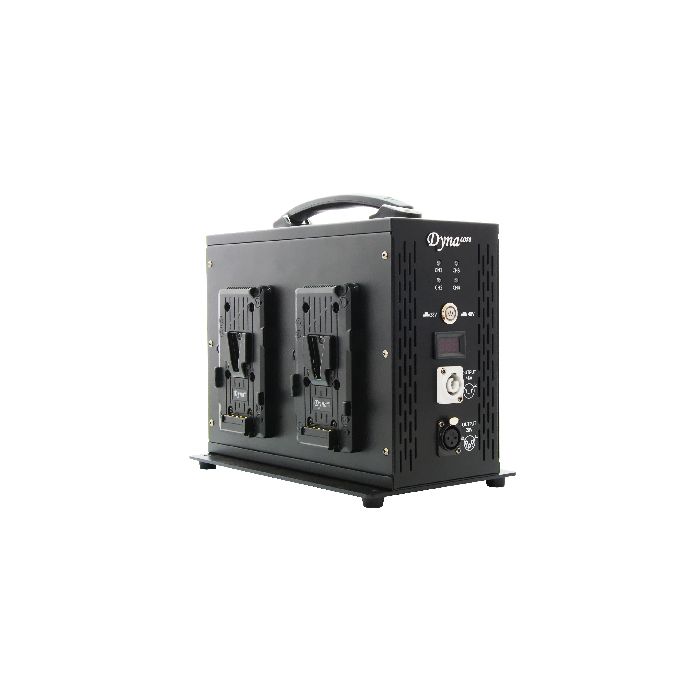

Dynacore D-4S-48V 48V adapter for skypanel S60/120
by DynacoreIntegration of both battery adapter and charger function in one device.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Dynacore D-4S-48V 48V
48V, 10A& 28V, 10A adapter output are available, support Max 480W.
48V,10A adapter output can meet the power requirement of ARRI Skypanel S60.
4pcs high capacity batteries are suggested to get the maximum power. Mount 4pcs Dynacore DN-310S/A, with total capacity as big as 1240Wh, it can support Skypanel S60 with 100%brightnessaround 2 hours.
28V, 10A adapter output can be used to power 28V equipment like Alexa LF, KINO lights, etc.
With charging output of 16.8V, 2.6A for each channel, 4pcs batteries can be charged simultaneously.
One Dynacore D-4S/A-48 will fulfill your needs of both DC power bank and charger. Just bring 4pcs batteries
and 1pc DynacoreD-4S/A-48, it will be enough for outdoor shooting.
D-4S-48V For V-Mount Batteries
D-4A-48V For Gold Mount Batteries
| AC Input | AC 90V~240V/47Hz~63Hz |
| Charger Output | DC 16.8V/2.6A |
| Adapter Output | DC 28V/10A |
| DC 48V/10A | |
| Outlet | 1 x NEUTRIK NAC3MPB-1 (48V) |
| 1 x 3-PIN Female XLR (28V) | |
| Applicable Battery | V-Mount/Gold Mount batteries |
| Dimension | 298 x 158 x 265mm |
| Weight | 5.70Kg |
