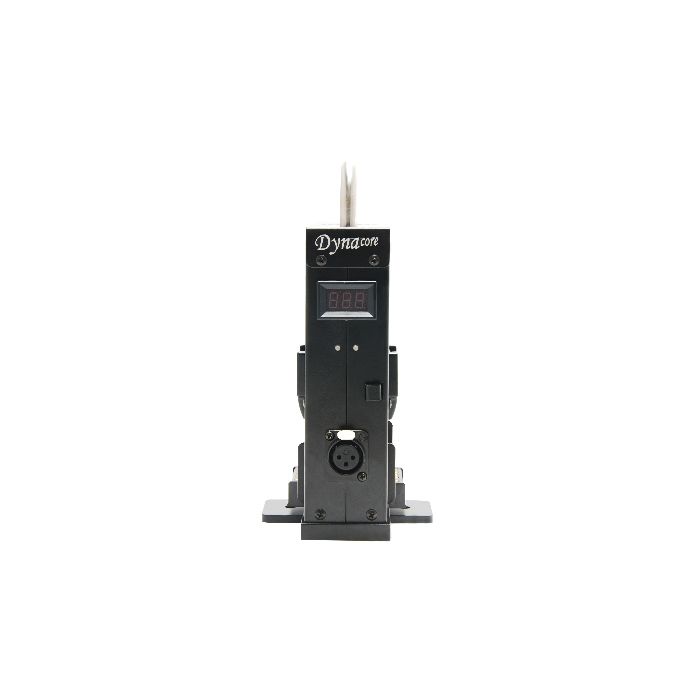

Dynacore D-2BS-24 Battery Extender
by DynacoreD-2BS/A-24 is the power station designed to integrate the power of 2pcs V-Mount and Gold Mount batteries into a power source as a 24V voltage output.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Dynacore D-2BS-24 Battery Extender
It can supply power of up to 240W output(24V, 10A).
To reach the best output performance, 2pcs batteries with the same capacity and charging status are required.
Battery models with bigger capacity are better.
LCD Display For Output Voltage
24.5V(+/-5mV on no-load,+/-1.2% on full load)
2 Channel Low Voltage Alarm Indicator LED Battery Indication
Color Red=Under/Over Voltage
Color Green=Good
Green Blinking=Battery Low
3 Pin Female XLR Output
24V, 10A, 240W(Max)
Hexagon Connector Makes It Easy To Be Connected To The Tripod With Convi Clamp.
D-2BS-24 Integrated Mount Plate Design Makes The Product Compact
D-2BS-24 For V-Mount Batteries
D-2BA-24 For Gold Mount Batteries
| DC Input | 12-17V |
| DC Output | 24.5V |
| Outlet | 1 x 3-pin Female XLR |
| DC Output Max Power | 10A,240W |
| Applicable battery | V-Mount batteries |
| Dimension | 150X73X220mm(Including Metal Cylinder) |
| Weight | 1.10Kg(Including Metal Cylinder) |
