DPA VO4099U d:vote 4099 Clip Microphone, Universal
by DPAFor Use With Unusual Shaped Instruments, Compact Size, 90-Degree Mounting System, 5.5" Adjustable Gooseneck, Includes Hook and Loop Fastener Clip, Includes XLR Adapter, Detachable Cable
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DPA Microphones d:vote 4099U Universal Clip Microphone
- XLR Adapter
- Belt Clip
- Clip with Hook and Loop Fastener

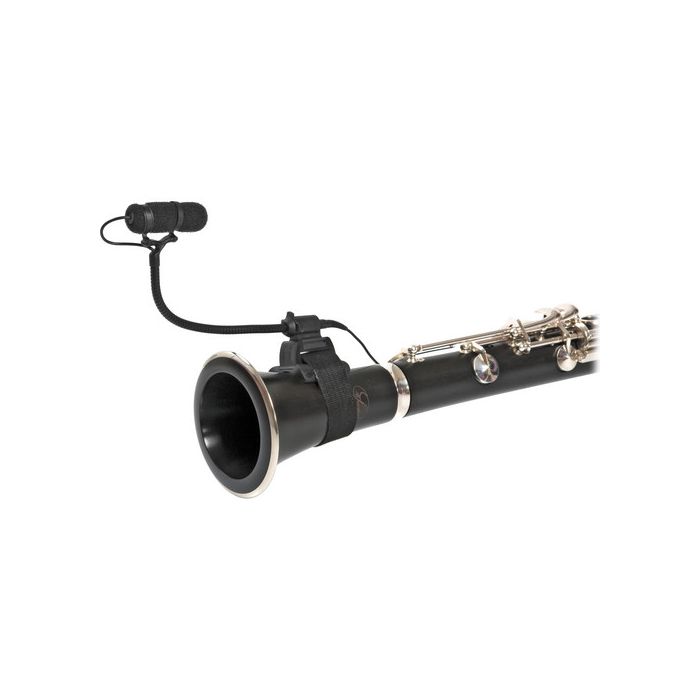

The d:vote 4099U Universal Clip Microphone from DPA Microphones is designed to be used with slim bodied or unusual-shaped instruments. It includes a hook and loop fastener strap that can attach the mic to the circumference of difficult to mic instruments such as oboes, clarinets, bassoons, recorders, and flutes. The clip can also be rotated 90-degrees, doubling the amount of mounting positions available.
The microphone has a compact, 1.8-inch length body and comes with a 5.5-inch gooseneck for flexibility in positioning. It has a detachable cable that terminates in a Microdot connector, providing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. An XLR adapter is included for use with a wired system with 48-volt phantom power.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz |
Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 100 dB |
Maximum SPL | 142 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω, XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: > 60 dB at 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | Microdot: 1.5 mA XLR Adapter: 3.5 mA |
Connector | Microdot XLR Adapter Included |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Operating Temperature | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 6' (1.8 m) |
Gooseneck | Length: 5.5" (140 mm) |
Capsule Diameter | 0.2" (5.4 mm) |
Microphone Length | 1.8" (45 mm) |
Weight | 1.4 oz (41 g) |
Packaging Info | |
---|---|
Package Weight | 1.0 lb |
Box Dimensions (LxWxH) | 9.7 x 5.7 x 2.9" |
