DPA VO4099T d:vote 4099 Clip Microphone for Brass

by DPA
Availability: 7-10 days delivery
SKU
DPA-VO4099T

For Trumpet, Trombone, or Other Brass, Fits Any Mute, One-Hand Mounting, 5.5" Adjustable Gooseneck, Detachable Cable
Includes XLR Adapter with Belt Clip

€547.50 €438.00

Package includes

  • DPA Microphones d:vote 4099T Clip Microphone for Brass Instruments
  • XLR Adapter
  • Belt Clip

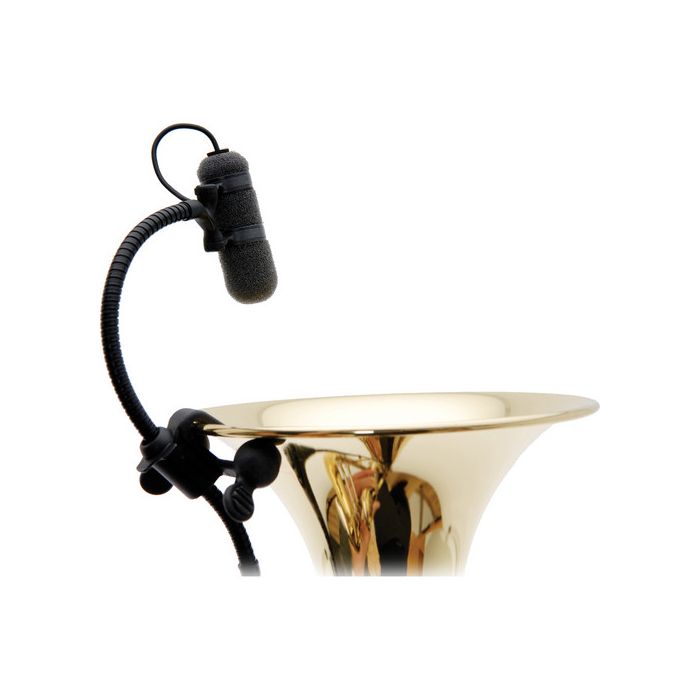

The d:vote 4099T Clip Microphone for Brass Instruments from DPA Microphones is designed for miking trumpet, trombone, or other brass instruments. It can be mounted with one hand and will work on a brass instrument with or without a mute. It has a maximum SPL rating of 152dB to handle a brass instrument's high output. The 4099T has a pre-polarized condenser capsule that is attached to a 5.5" gooseneck and provides flexibility for mic placement. It terminates in a MicroDot connector, making it compatible DPA's connection adapters for use with a variety of third-party wireless systems. An XLR adapter is included with a belt clip for use in a wired system with 48-volt phantom power.

Transducer Type Pre-Polarized Condenser
Polar Pattern Supercardioid
Principle of Operation Pressure Gradient
Frequency Range 20 Hz to 20 kHz
+/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz, Second Order Low-Cut Filter @ 80 Hz with XLR Adapter
Sensitivity 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3 dB)
Equivalent Noise Level Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted)
Signal to Noise Ratio 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL)
Total Harmonic Distortion (THD) < 1 % up to 123 dB SPL peak
< 1 % up to 120 dB SPL RMS sine
Dynamic Range 95 dB
Maximum SPL 152 dB (Peak Before Clipping)
Output Impedance MicroDot: 30 to 40 Ω,
XLR: 100 Ω
Cable Drive Capability XLR: 984' (300 m)
Output Balance Principle Signal balanced with XLR adapter
CMRR XLR Adapter: > 60 dB @ 50 Hz to 15 kHz
Power Supply Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems
48 V phantom power ±4 V with XLR adapter
Current Consumption MicroDot: 1.5 mA
XLR Adapter: 3.5 mA
Connector MicroDot
XLR Adapter Included
Polarity Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)
Operating Temperature -40° to 113°F (-40° to 45°C)
Relative Humidity Up to 90%
Cable Length 6' (1.8 m)
Gooseneck Length: 5.5" (140 mm)
Capsule Diameter 0.2" (5.4 mm)
Microphone Length 1.8" (45 mm)
Weight 1.1 oz (31 g)
Packaging Info
Package Weight 1.1 lb
Box Dimensions (LxWxH) 9.8 x 5.6 x 2.9"
