DPA VO4099Hi d:vote 4099 Clip Microphone in Pouch, Hi-Sens
by DPA
Availability:
7-10 days delivery
SKU
DPA-VO4099Hi
For Live Sound, 6 mV/Pa Sensitivity, 142 dB Maximum SPL, 5.5" Adjustable Gooseneck, MicroDot Connector
€418.25
€334.60
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DPA Microphones d:vote 4099 Instrument Microphone (Microphone Only - High Sensitivity)
- Carry Pouch

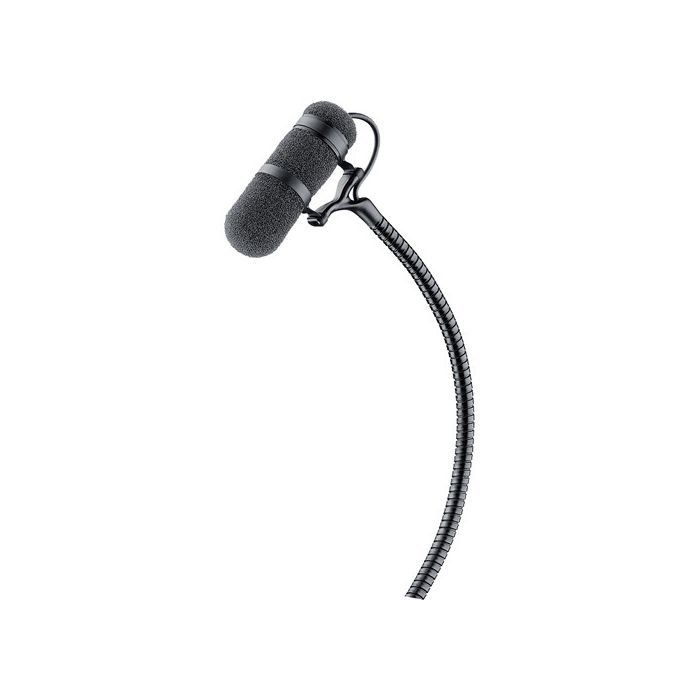

The high-sensitivity (6 mV/Pa) d:vote 4099 Instrument Microphone from DPA Microphones utilizes a supercardioid condenser capsule that can handle a maximum SPL of 142 dB.
The microphone body is connected to a 5.5" adjustable gooseneck for ease in positioning. The microphone terminates in a MicroDot connector, allowing compatibility with DPA's connection adapters for use with a variety of third party wireless systems. A range of accessories including clips for attaching the microphone to various instruments are available sold separately.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz, Second Order Low-Cut Filter @ 80 Hz (>+/- 2 dB, 20 cm Distance) |
Sensitivity | 6 mV/Pa; -44.5 dB Reference: 1 V/Pa (Nominal, +/- 3 dB) |
Equivalent Noise Level | Typ. 23 dB(A) Reference: 20 µPa (Maximum 26 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 71 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 100 dB |
Maximum SPL | 142 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: > 60 dB @ 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Compatibility | Fits Instruments with a Body Depth Between 1.4 and 2.1" (35 and 55 mm) |
Polarity | Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD4099-BC XLR adapter) |
Operating Temperature | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Gooseneck | Length: 5.5" (140 mm) |
Microphone Length | 1.8" (45 mm) |
Weight | 1.16 oz (33 g) |
Packaging Info | |
---|---|
Package Weight | 0.15 lb |
Box Dimensions (LxWxH) | 9.5 x 4.7 x 0.5" |
