DPA VO4099D d:vote 4099 Clip Microphone for Drum
by DPA90-Degree Mounting System for Drums, High SPL Handling, 5.5" Adjustable Gooseneck, MicroDot Connector
Includes XLR Adapter, Detachable Cable
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DPA Microphones d:vote 4099D Clip Microphone for Drums
- DC4099 Mounting Clip for Drum Rims
- XLR Adapter

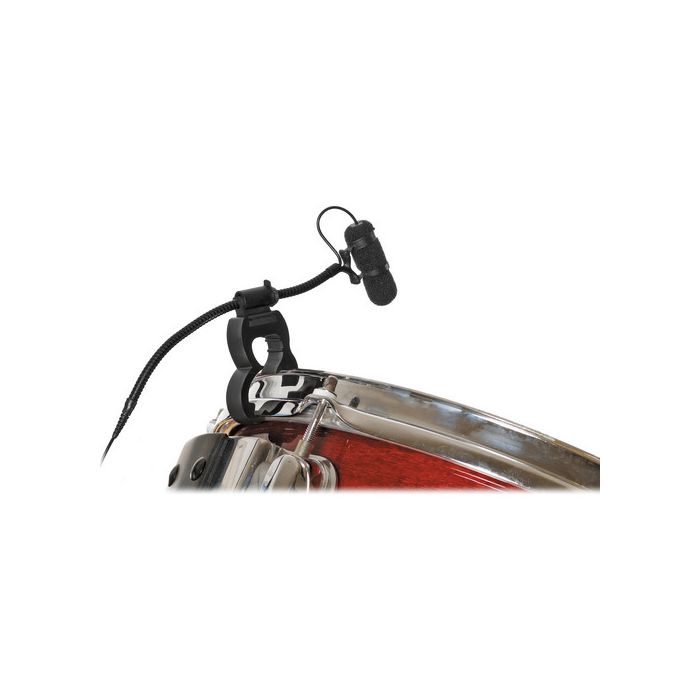

The d:vote 4099D Clip Microphone for Drums from DPA Microphones is designed to be used as a clip mic for drums and other percussion sources. It features DPA's 90-degree system that allows you to remount the clip by 90 degrees to provide a variety of mounting positions. The 5.5" gooseneck provides further positioning options.
The microphone itself is a pre-polarized condenser with a supercardioid polar pattern. It features a maximum SPL of 152dB, allowing it to be used on high-volume sources such as toms, kicks, and percussion. Its cable is detachable for easier mounting, and the microphone terminates in a MicroDot connection. An XLR adapter is included for connecting to wired systems.
Transducer Type | Pre-Polarized Condenser |
Polar Pattern | Supercardioid |
Principle of Operation | Pressure Gradient |
Frequency Range | 20 Hz to 20 kHz +/- 2 dB, 20 cm Distance: 80 Hz to 15 kHz with 2 dB Soft Boost @ 10 to 12 kHz |
Sensitivity | 2 mV/Pa; -54 dB Reference: 1 V/Pa (Nominal, +/- 3dB) |
Equivalent Noise Level | Typ. 28 dB(A) Reference: 20 µPa (Maximum 31 dB(A)) (A-Weighted) |
Signal to Noise Ratio | 66 dB (Reference: 1 kHz @ 1 Pa, 94 dB SPL) |
Total Harmonic Distortion (THD) | < 1 % up to 123 dB SPL peak < 1 % up to 120 dB SPL RMS sine |
Dynamic Range | 95 dB |
Maximum SPL | 152 dB (Peak Before Clipping) |
Output Impedance | MicroDot: 30 to 40 Ω XLR: 100 Ω |
Cable Drive Capability | XLR: 984' (300 m) |
Output Balance Principle | Signal balanced with XLR adapter |
CMRR | XLR Adapter: >60 dB at 50 Hz to 15 kHz |
Power Supply | Minimum 5 V to Maximum 50 V through DPA adapter for wireless systems 48 V phantom power ±4 V with XLR adapter |
Current Consumption | MicroDot: 1.5 mA XLR Adapter: 3.5 mA |
Connector | MicroDot XLR Adapter Included |
Polarity | Positively increasing sound pressure produces positive-going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter) |
Operating Temperature | -40° to 113°F (-40° to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 6' (1.8 m) |
Gooseneck | Length: 5.5" (140 mm) |
Capsule Diameter | 0.2" (5.4 mm) |
Microphone Length | 1.8" (45 mm) |
Packaging Info | |
---|---|
Package Weight | 1.15 lb |
Box Dimensions (LxWxH) | 9.8 x 5.9 x 3.0" |
