DPA SC4071-FM d:screet Omni Mic, Presence Boost, Lo-Sens, Beige, MicroDot

by DPA
Availability: 7-10 days delivery
SKU
DPA-SC4071-FM
For ENG/EFP Applications, Low Cut at 100Hz, Moisture Resistant, Can Handle Extreme Temperatures
€521.00 €416.80

Package includes

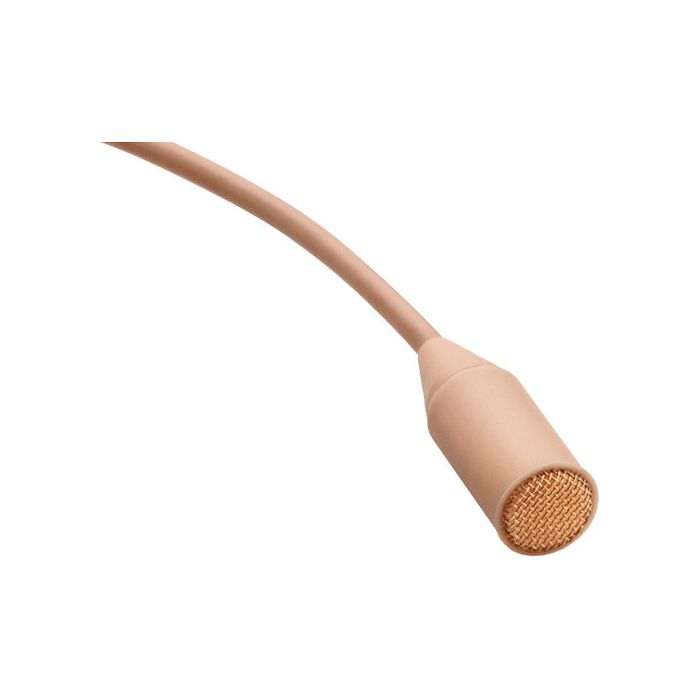

  • DPA Microphones d:screet mini 4071 Omnidirectional Miniature Microphone with a Microdot Termination (Beige)

The beige d:screet mini 4071 Omnidirectional Miniature Microphone with a Microdot Terminationfrom DPA Microphones is designed for ENG and EFP applications, as well as any scenario that requires small, moisture-resistant microphones. It has a built-in low cut at 100Hz for reduced low-frequency resonances and rumbling. Its high-frequency boost is tailored for speech intelligibility.

Polar Pattern Omnidirectional
Principle of Operation Pressure
Cartridge Type Pre-polarized condenser element with vertical diaphragm
Frequency Range 100 Hz to 15 kHz with typical 5 dB soft boost at 4 to 6 kHz, ± 2 dB
Sensitivity 6 mV/Pa at 1 kHz; -44.4 dB re. 1 V/Pa (nominal, +/-3 dB)
Equivalent Noise Level A-Weighted:
Typical: 26 dBA re. 20 µPa
Maximum: 28 dBA

ITU-R BS.468-4:
Typical: 38 dB
Maximum: 40 dB
S/N Ratio 68 dBA, 1 kHz at 1 Pa (94 dB SPL):
Total Harmonic Distortion (THD) <1% THD up to 123 dB SPL peak
<1% THD up to 120 dB SPL RMS sine
Dynamic Range Typical 97 dB
Maximum Sound Pressure Level (SPL) Peak Before Clipping: 144 dB
Output Impedance 30 to 40 Ω
Cable Drive Capability Up to 984' (300 m)
Connector Microdot termination
Temperature Range -14 to 113°F (-10 to 45°C)
Relative Humidity Up to 90%
Cable Length 5.9' (1.8 m)
Cable Diameter: 0.06" (1.6 mm)
Dimensions (Ø x L) 0.2 x 0.67" (5.4 x 17 mm)
Weight 0.26 oz (7.5 g)
