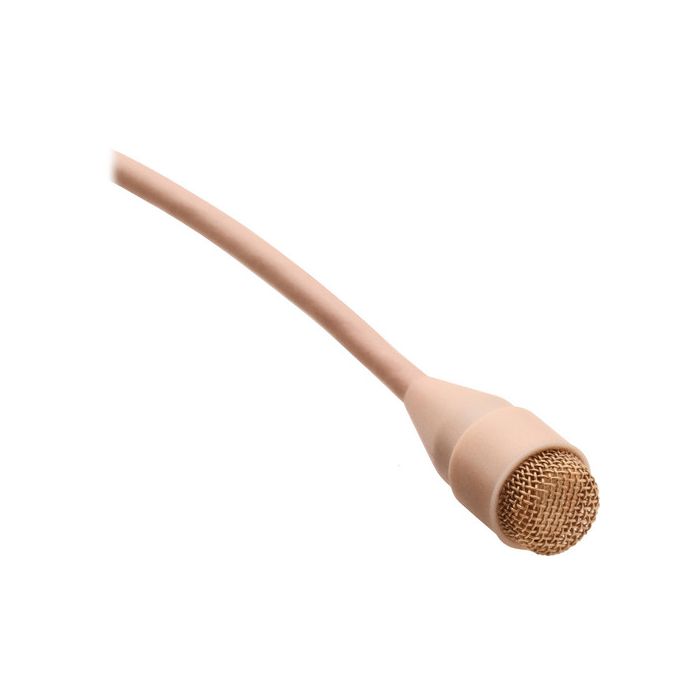

DPA SC4061-FM d:screet Omni Mic, Lo-Sens, Beige, MicroDot

by DPA
Availability: 7-10 days delivery
SKU
DPA-SC4061-FM

Omnidirectional, Low Sensitivity, Requires Adapter

€418.25 €334.60

Package includes

  • DPA Microphones d:screet 4061 Omnidirectional Miniature Low-Sensitivity Microphone (Beige)
  • High Boost Protection Grid
  • Soft Boost Protection Grid

The beige d:screet 4061 from DPA is a miniature omnidirectional lavalier microphone designed for use in performance and theatrical applications. The miniature lavalier features a condenser element with a frequency and sensitivity response that will accurately reproduce audio signals from the human voice and instruments. The capsule is designed with a double vent protection system and moisture-resistant materials inside the capsule, which ensure maximum protection from humidity and moisture caused by perspiration, makeup, etc.

The 4061 includes interchangeable capsule protection grids that alter the signal character of the microphone. A "High Boost" capsule creates a peak at 12 kHz, creating an airy texture to audio signals. The "Soft Boost" capsule creates a subtle boost between 8 to 20 kHz, enhancing signal presence. With a SPL rating of 144 dB, the microphone is more than capable of reproducing transient (peaking) audio before clipping. The 4061 is powered via +48V phantom power and features a MicroDot output connector, compatible with various wireless microphone transmitters or power supplies with standard XLR outputs. A MicroDot adapter is required to use with a wireless system.

Standard Sensitivity
Identical to the DPA 4060, the 4061's sensitivity is adjusted to 6 mV/Pa to match some of the more sensitive transmitters on the market.
Moisture Resistant
The 4061 features a double vent protection grid and moisture-resistant materials which prevent damage from humidity, perspiration and makeup.
Frequency-Altering Grids
The microphone includes "high boost" and "soft boost" protection grids that alter the frequency response and accentuate high-frequency signals.
Sensitive Condenser
If powered correctly the microphone will be able to handle sound pressure levels up to 144 dB SPL before clipping occurs.
Omnidirectional Polar Pattern
The omnidirectional polar pattern effectively captures audio at the direct and off-axis sections of the capsule.
Transducer Pre-polarized Condenser
Polar Pattern Omnidirectional
Frequency Response Soft Boost Grid: 20 Hz to 20 kHz +/- 2 dB, 3 dB soft boost at 8 Hz to 20 kHz
High Boost Grid: 20 Hz tto 20 kHz +/- 2 dB, 10 dB boost at 12 kHz
Dynamic Range (Typical) Not Specified by Manufacturer
Signal-to-Noise Ratio Typ. 35 dB (max. 38 dB)
Maximum Input Sound Level 144 dB SPL Before Clipping
Power Requirements +48 V
Output Jitter 30 to 40 Ohms
Output Connectors MicroDot
Pad No
Low Frequency Roll-Off No
Cable Length 5.9' (1.8 m)
Weight 0.26 oz (7.5 g) Including cable and MicroDot
Packaging Info
Package Weight 0.15 lb
Box Dimensions (LxWxH) 6.0 x 3.0 x 2.0"
