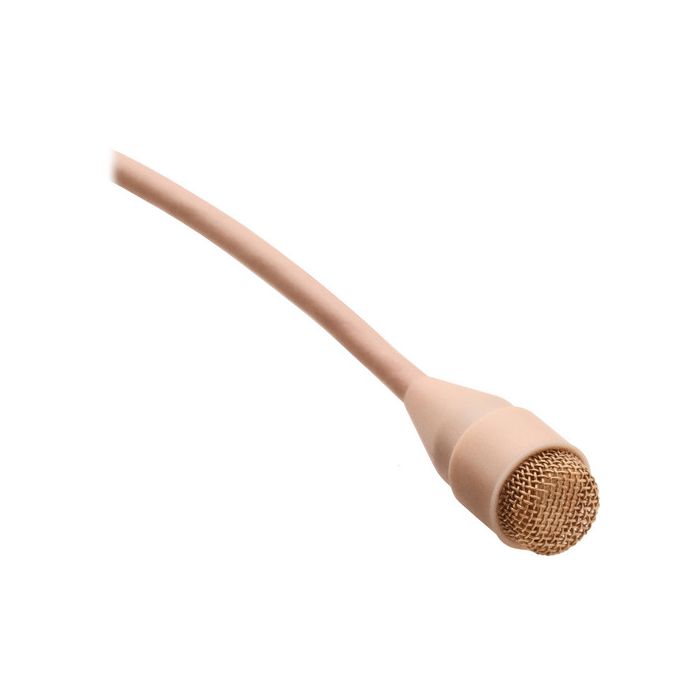

DPA SC4060-F34 d:screet Omni Mic, Hi-Sens, Beige, Mini-Jack
by DPA3.5mm Mini-Locking Ring Termination, For Sennheiser Wireless Transmitters
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DPA Microphones 4060-F34 Hi-Sens Omni-Directional Miniature Condenser Microphone (Beige)
- High-Boost Grid
- Soft-Boost Grid
The beige 4060-F34 Hi-Sens Omni-Directional Miniature Condenser Microphone from DPA Microphones is designed for use with wireless systems in theater, television, and close-miked instrument applications. This condenser microphone is unobtrusive. Because of its small size, the tiny condenser exhibits an accurate omni-directional pattern and therefore does not need to be aimed directly at the sound source to achieve quality pickup.
The featured hardwire 3.5mm mini-locking ring connector is compatible with Sennheiser Wireless Transmitters. This condenser microphone also features a 5.9’ (1.8m) cable and is supplied with 2 grids, one with a high boost and the other one with a soft boost. By changing these grids, you can acoustically modify the microphone's response according to its placement on the body including the chest, head, etc.
Offering good detail and resolution, the 4060-F34 Hi-Sens Omni-Directional Miniature Condenser Microphone has a neutral sonic character and is natural sounding. It has a low noise floor and impressive sensitivity, and can handle high SPLs. Musicians and engineers use this condenser microphone as a live or studio microphone for close-miking acoustic string instruments like violin, guitar, bass, viola, and harp. On television, the condenser microphone is popular as a lavalier lapel and tie clip mic.
Characteristics | Directional Characteristics: Omni-directional |
Principle of Operation | Pressure |
Cartridge Type | Pre-polarized condenser element with vertical diaphragm |
Frequency Range | ±2 dB Soft-Boost Grid: 20 Hz to 20 kHz, 3 dB soft boost at 8 to 20 kHz High-Boost Grid: 20 Hz to 20 kHz, 10 dB boost at 12 kHz |
Sensitivity | Nominal: ±3 dB at 1 kHz: 20 mV/Pa, -34 dB re. 1 V/Pa |
Equivalent Noise Level | A-Weighted: Typical: 23 dBA re. 20 µPa Maximum: 26 dBA ITU-R BS.468-4: Typical: 35 dB Maximum: 38 dB |
S/N Ratio | 1 kHz at 1 Pa (94 dB SPL): 71 dBA |
Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak <1% THD up to 120 dB SPL RMS sine |
Dynamic Range | Typical 100 dB |
Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 134 dB |
Output Impedance | 30 to 40 Ω |
Cable Drive Capability | Up to 984' (300 m) |
Connector | Hardwired 3.5mm mini-locking ring connector |
Temperature Range | -40 to 113°F (-40 to 45°C) |
Relative Humidity | Up to 90% |
Cable Length | 5.9' (1.8 m) |
Dimensions (Ø x L) | 0.21 x 0.50" (5.40 x 12.70 mm) |
Weight | 1 lb (0.5 kg) |
Packaging Info | |
---|---|
Package Weight | 1.0 lb |
Box Dimensions (LxWxH) | 6.0 x 6.0 x 2.0" |
