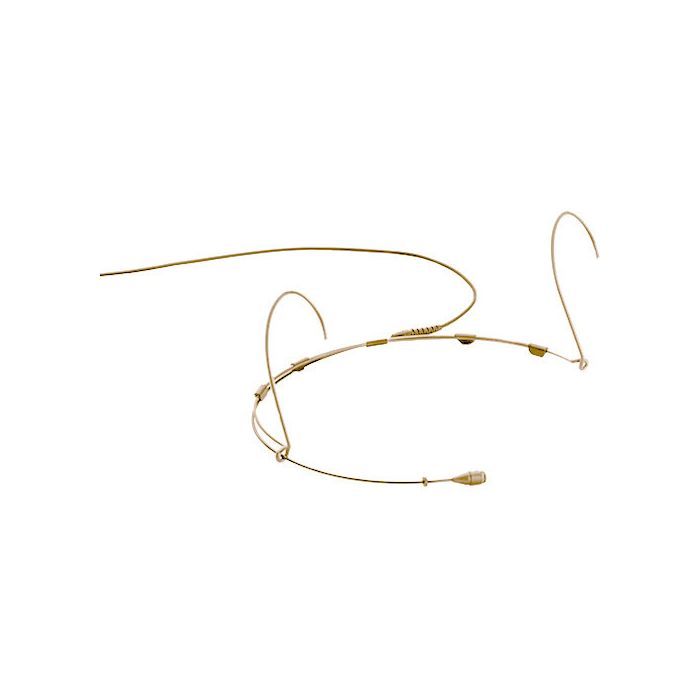

DPA 4066-F03 Omni Headset Mic, Beige, 3-Pin Lemo
by DPA
Availability:
7-10 days delivery
SKU
DPA-4066-F03
Left- or Right-Ear Mounting, Humidity-Resistant Design, Silicone Hose-Covered Earhooks, For Theater Applications, Includes High- & Soft-Boost Grids, Includes 5 Foam Windscreens
€760.00
€608.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DPA Microphones Omnidirectional Headset Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems (Beige)
- High-Boost Grid
- Soft-Boost Grid
- 5 x Foam Windscreens
The beige d:fine 4066 Omnidirectional Headset Microphone with a Hardwired 3-Pin LEMO Connector for Sennheiser Wireless Systems from DPA Microphones is designed for theater applications and can be mounted on either left or right ear, depending on your preference. It features a double vent protection system that works in tandem with a drop stopper and water-resistant materials in the mic to help prevent damage from humidity. High- and soft-boost grids along with 5 foam windscreens are included.
| Polar Pattern | Omnidirectional |
| Principle of Operation | Pressure |
| Cartridge Type | Pre-polarized condenser element with vertical diaphragm |
| Frequency Range | Soft-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 3 dB soft boost at 8 to 20 kHz High-Boost Grid: 20 Hz to 20 kHz +/-2 dB, 10 dB boost at 12 kHz |
| Sensitivity | 6 mV/Pa, -44 dB re. 1 V/Pa (nominal, +/-3 dB at 1 kHz) |
| Equivalent Noise Level | A-Weighted: Typical: 26 dBA re. 20 µPa Maximum: 28 dBA ITU-R BS.468-4: Typical: 38 dB Maximum: 40 dB |
| S/N Ratio | 68 dBA, 1 kHz at 1 Pa (94 dB SPL): |
| Total Harmonic Distortion (THD) | <1% THD up to 123 dB SPL peak <1% THD up to 120 dB SPL RMS sine |
| Dynamic Range | Typical 97 dB |
| Maximum Sound Pressure Level (SPL) | Peak Before Clipping: 144 dB |
| Output Impedance | 30 to 40 Ω |
| Cable Drive Capability | Up to 984' (300 m) |
| Connector | Hardwired 3-Pin LEMO |
| Temperature Range | 14 to 113°F (-10 to 45°C) |
| Relative Humidity | Up to 90% |
| Cable Length | 3.9' (1.2 m) Cable Diameter: 0.06" (1.6 mm) |
| Microphone Diameters | 0.21" (5.4 mm) |
| Weight | 0.5 oz (14 g) |
| Packaging Info | |
|---|---|
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 10.0 x 6.0 x 3.0" |
