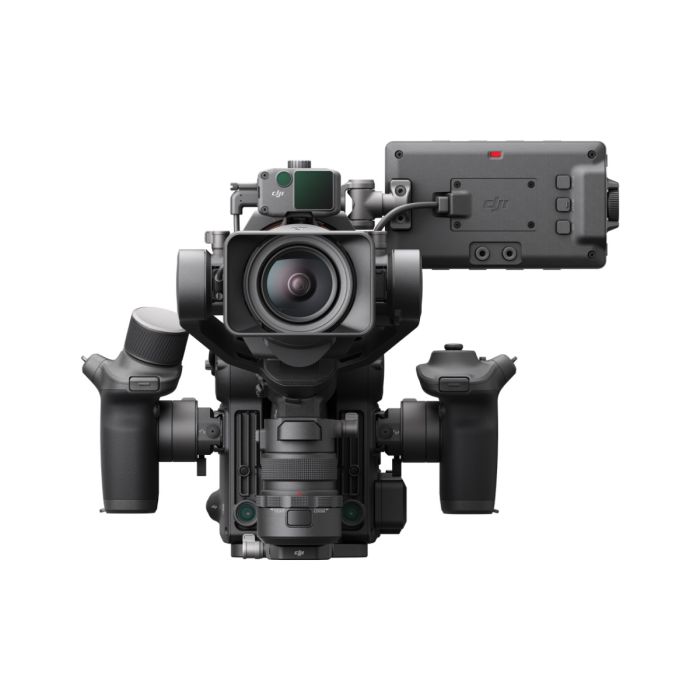

DJI Ronin 4D-8K
by DJI
Availability:
14-20 days delivery
SKU
DJI-Ronin-4D-8K
With DJI Ronin 4D, our most advanced technologies have been integrated into one cutting-edge and comprehensive cinematography solution, which offers groundbreaking flexibility to solo cinematographers and unlimited possibilities for coordinated shooting.
€13,500.00
€10,800.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Zenmuse X9-8K Gimbal Camera × 1
- Main Body × 1
- LiDAR Range Finder × 1
- DL Mount × 1
- Left Hand Grip × 1
- Right Hand Grip × 1
- Top Handle × 1
- High-Bright Main Monitor × 1
- PROSSD 1TB × 1
- PROSSD Mount × 1
- TB50 Battery Mount × 1
- Power Adapter × 1
- TB50 Charging Adapter × 1
- AC Power Cable × 8
- USB-A to USB-C Cable × 1
- USB-C to USB-C Cable × 1
- Base Plate × 1
- Hand Grip Extended Control Sticks × 1
- 3mm Ball-End Hex Key × 1
- 2.5mm Ball-End Hex Key × 1
- 1.5mm Ball-End Hex Key × 1
- 10mm 1/4"-20 Screw × 3
- Flat Head Screwdriver × 1
- X9 Gimbal Base Cap × 1
- DX Mount Body Cap × 1
- DX Mount Lens Cap × 1
- Ronin 4D Gimbal Base Cap × 1
- TB50 Intelligent Battery × 1
- LiDAR Range Finder/Focus Motor Cable × 1
- Left Hand Grip Strap × 1
- Right Hand Grip Strap × 1
- Ronin 4D Carrying Case × 1
- X9 Counterweight (106 g) × 1
- DJI DL PZ 17-28mm T3.0 ASPH Lens × 1
- DJI Ronin 4D RAW License Key × 1
Full-frame 8K/60fps & 4K/120fps
Zenmuse X9 supports internal recording of Apple ProRes RAW, ProRes 4444 XQ, ProRes 422 HQ, ProRes 422 LT, and H.264 video, and up to 8K/60fps and 4K/120fps full-frame video recording. It also supports the ACES workflow.
Dual-native ISO 800/4000
X9-8K defaults to EI 320/1600. With Dynamic Range Expansion on, X9-8K can support EI 800/4000, while X9-6K supports EI 800/5000, allowing it to capture footage with exquisite detail and minimal noise.
Built-In 9-Stop Physical ND Filters
X9 has 9-stop built-in physical ND filters (ND 2 to ND 512, or ND 0.3 to ND 2.7) that can be quickly and easily switched thanks to a motorized internal system.
DL/E/L/PL/M Interchangeable Lens Mount
X9 supports DJI's proprietary DL mount, as well as Leica L, Leica M, Sony E, ARRI PL, and more. Lenses compatible with these mounts can also be used with X9.
Autofocus on Manual Lenses
With the LiDAR focusing system and focus motor, autofocus is available even on manual lenses.In Automated Manual Focus mode, the focus wheel will rotate in sync as the focus point changes, but cinematographers can take manual control at any point.
4-Axis Active Stabilization on Par with a Dolly
The Z-Axis effectively eliminates vertical camera shake and works with visual sensors and ActiveTrack Pro to let you create smooth, stable footage effortlessly.
Up to 20,000-foot Wireless Transmission and Control Range
O3 Pro Video Transmission Technology adds DFS frequency bands and enables 1080p/60fps video transmission. It supports one transmitter with multiple receivers and can remotely control gimbal, focusing, and camera settings.
| General | |
| Main Body Dimensions (length×width×height) | 235×115×160 mm |
| Overall Dimensions (length×width×height) | 309×290×277 mm |
| Gimbal Weight | Approx. 1.04 kg |
| Main Body Weight | Approx. 1.45 kg |
| Overall Weight | Approx. 4.67 kg (after installing all modules in the combo, excluding lens and storage card) |
| Max Operating Time | Approx. 150 minutes |
| Intelligent Features | ActiveTrack Pro, Autofocus (supports human face/body recognition and framing of any subject) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| Camera | |
| Sensor Size | 35mm full-frame CMOS image sensor |
| Base Lens Mount | DX Mount, and support for other mount units |
| Supported Lens Mounts | DL mount (included), L mount, M mount, E mount (third-party), PL mount (third-party) |
| DL Lens | DJI DL 18mm F2.8 ASPH |
| DJI DL 24mm F2.8 LS ASPH | |
| DJI DL 35mm F2.8 LS ASPH | |
| DJI DL 50mm F2.8 LS ASPH | |
| DJI DL PZ 17-28mm T3.0 ASPH Lens | |
| Dynamic Range | 14+ stops |
| White Balance | Manual 2,000-11,000 Kelvin and tint adjustment, supports AWB |
| Gamma | D-Log, Rec.709, HLG |
| EI Range | X9-8K: EI 200 to EI 6400 |
| With Dynamic Range Expansion off: Dual native ISO 320/1600 | |
| With Dynamic Range Expansion on: Dual native ISO 800/4000 | |
| X9-6K: EI 200-12800, dual native ISO 800/5000 | |
| Shutter Speed | Electronic Rolling Shutter 1/24s-1/8000s |
| ND | Built-in 9-stop ND filters: |
| Clear, 2 (0.3), 4 (0.6), 8 (0.9), 16 (1.2), 32 (1.5), 64 (1.8), 128 (2.1), 256 (2.4), 512 (2.7) | |
| Focus Control | Autofocus, Manual Focus, Automated Manual Focus |
| Supported File System | exFAT |
| Recording Format | Apple ProRes RAW HQ/Apple ProRes RAW |
| Apple ProRes 4444 XQ | |
| Apple ProRes 422 HQ/Apple ProRes 422 LT | |
| H.264 (4:2:0 10-bit) | |
| Storage Media | DJI PROSSD 1TB, CFexpress 2.0 Type B, USB-C SSD |
| DJI PROSSD 1TB Recording Format | No restriction on recording format |
| CFexpress 2.0 Type B Recording Format | |
| ProRes 422 HQ/LT: | 6K: 23.976/24/25/29.97/30fps |
| C4K: 23.976/24/25/29.97/30/48/50/ | |
| 59.94/60/72/96/100/120fps | |
| 2K: 23.976/24/25/29.97/30/48/50/ | |
| 59.94/60/72/96/100/120fps | |
| H.264: | |
| C4K: 23.976/24/25/29.97/30/48/50/ | |
| 59.94/60/72/96/100/120fps | |
| 2K: 23.976/24/25/29.97/30/48/ | |
| 50/59.94/60/72/96/100/120fps | |
| USB-C SSD Recording Format | ProRes 422 HQ/LT: |
| C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps | |
| 2K: 23.976/24/25/29.97/30/48/50/59.94/60fps | |
| H.264: | |
| C4K: 23.976/24/25/29.97/30/48/50/59.94/60fps | |
| 2K: 23.976/24/25/29.97/30/48/50/59.94/60fps | |
| Built-in Mic | Built-in 2-ch stereo |
| Audio Format | LPCM 2-ch, 24-bit 48kHz |
| Gimbal | |
| Mechanical Range | Pan: ±330° |
| Tilt: -75° to 175° | |
| Roll: -90° to 230° | |
| Z-Axis Range: approx 130mm | |
| Controllable Range | Pan: ±285° |
| Tilt: -55° to +155° | |
| Roll: ±35° | |
| Max Control Speed (°/s) | DJI Master Wheels or DJI Force Pro: |
| Tilt: 360°/s | |
| Roll: 360°/s | |
| Pan: 360°/s | |
| Ronin 4D Hand Grips: | |
| Tilt: 120°/s | |
| Roll: 120°/s | |
| Pan: 120°/s | |
| Maximum Z-Axis Payload | 2000 g (including 1040 g gimbal) |
| Angular Vibration Range | ±0.01° |
| LiDAR Range Finder | |
| Weight | 88 g |
| Dimensions (length×width×height) | 71×47×34 mm |
| Operating Temperature | -10° to 40° C (14° to 104° F) |
| LiDAR Range Measurement Precision | 0.3-1m (±1%) |
| 1-10m (±1.5%） | |
| FOV | 30cm to 3m @>18% reflectivity 60° (horizontal) × 45° (vertical) |
| 30cm to 10m @>18% reflectivity 60° (horizontal) × 7° (vertical) | |
| Safety Rating | Class 1 (IEC 60825-1:2014) (safe for human eyes) |
| Operating Environment | Use in environments with diffuse reflective surfaces (>10%, such as walls, trees, people, etc.) |
| DO NOT use in environments with dense fog or aim it at or through glass surfaces. | |
| Laser Wavelength | 940 nm |
| Single Pulse Width | Two kinds of pulses emit in circulation: 5ns and 33.4ns. |
| Max Laser Power | 6 W |
| Main Monitor | |
| Screen Size | 5.5 inches (diagonal) |
| Resolution | 1920×1080 |
| Refresh Rate | 60 Hz |
| Max Brightness | 1000 cd/m² |
| Screen | Rotational LCD touchscreen |
| Battery | |
| Battery Type | TB50 Intelligent Battery |
| Capacity | 4280 mAh |
| Energy | 97.58 Wh |
| Voltage | 22.8 V |
| Max Charging Voltage | 26.1 V |
| Max Charging Power | 180 W |
| Charging Temperature Range | 5° to 40° C (41° to 104° F) |
| Charging Time | Approx. 1.5 hours (with standard 86W power adapter) |
| DJI O3 Pro Video Transmission | |
| Max Transmission Distance | 20,000 ft (approx. 6km, FCC-compliant) |
| Max Transmission Resolution and Frame Rate | 1920×1080 @60fps |
| Minimum End-to-End Latency | 100 ms or 68 ms |
| Wireless Frequency | Non DFS frequency band: |
| 2.400-2.483 GHz | |
| 5.150-5.250 GHz | |
| 5.725-5.850 GHz | |
| DFS Frequency Band: | |
| 5.250-5.350 GHz | |
| 5.470-5.600 GHz | |
| 5.650-5.725 GHz | |
| Transmitter Power (EIRP) | 2.400-2.4835 GHz: |
| <33 dBm (FCC); <20 dBm (SRRC/CE/MIC) | |
| 5.150-5.250 GHz | |
| <23 dBm (FCC/SRRC/MIC) | |
| 5.250-5.350 GHz: | |
| <30 dBm (FCC); <23 dBm (SRRC/MIC) | |
| 5.470-5.600 GHz, 5.650-5.725 GHz: | |
| <30 dBm (FCC); <23 dBm (CE/MIC) | |
| 5.725-5.850 GHz: | |
| <33 dBm (FCC/SRRC); <14 dBm (CE) | |
| Max Bandwidth | 40 MHz |
| Max Bitrate | 50 Mbps |
| Interface | |
| Main Body | 3.5mm TRS Stereo Input Jack × 1 (supports mic, plug-in power mic, and line inputs) |
| 3.5mm Stereo Output Jack × 1 | |
| USB3.1 Type-C Data Port × 1 | |
| 6-pin 1B DC-IN (DC 12-30 V) × 1 | |
| Battery Mount Power Port (female) × 1 | |
| 4D Expansion Plate Data Port (female) × 1 | |
| High-Bright Main Monitor Port × 1 | |
| Hand Grips Port × 2 | |
| Top Handle Port × 1 | |
| HDMI Type-A Video Output Port × 1 | |
| X9 Gimbal | LiDAR Range Finder/ Focus Motor Port × 2 |
| TB50 Battery Mount | Battery Mount Power Port (male) × 1 |
| TB50 Battery Port × 1 | |
| 4D Video Transmitter | |
| Dimensions | 89×21×137 mm |
| 4D Video Transmitter Port | 4D Expansion Plate Data Port (male) × 1 |
| SMA Antenna Connector × 4 | |
| USB 3.1 Type-C Data Port × 1 | |
| Battery Mount Power Port (female) × 1 | |
| Battery Mount Power Port (male) × 1 | |
| Remote Monitor | |
| Dimensions | 216×58×166 mm (includes monitor cage) |
| Screen Size | 7 inches (diagonal) |
| Max Brightness | 1500 cd/m² |
| Screen Resolution | 1920×1200 |
| Refresh Rate | 60 Hz |
| Max Battery Life | Approx. 2 hours |
| Operating Temperature | 0° to 40° C (32° to 104° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
| Power System | DJI WB37 Battery/NP-F series Battery (requires NP-F battery adapter) |
| Remote Monitor Port | 3.5mm Stereo Jack × 1 |
| microSD Card Slot × 1 | |
| HDMI Type-A Video Input Port × 1 [12] | |
| Remote Monitor Expansion Plate High-Speed Port (female) × 1 | |
| Remote Monitor Accessory Expansion Port × 1 | |
| USB 3.1 Type-C Data Port × 1 | |
| Remote Monitor Expansion Port | Remote Monitor Expansion High-Speed Port (male) × 1 |
| HDMI 1.4 Type-A Video Output Port × 1 | |
| 6-pin 1B DC-IN (DC 6.8-17.6 V) × 1 | |
| 3G-SDI (Level A) BNC Video Output Port × 1 | |
| Flex | |
| Extension Cable Length | 2 m |
| Weight | Approx. 725 g (including Ronin 4D Hand Grip Adapter and Hand Grips Adapter Cable) |
| Supported Accessories | Ronin 4D Hand Grips |
| High-Bright Main Monitor | |
| LiDAR Range Finder | |
| Zenmuse X9 Focus Motor | |
| DL PZ 17-28 mm T3.0 ASPH Lens | |
| Imager Size | Full frame (36×24 mm) |
| Focal Length | 17-28 mm |
| MOD (From Object to Image Plane) | 17 mm: 0.19 m |
| 28 mm: 0.26 m | |
| Aperture Range | T3.0 to T22 |
| Filter Diameter | Φ 67 mm |
| Elements/Groups | 13/11 |
| External Dimensions (zoom motor excluded) | Φ 78 mm (max) × L 100.1 mm (to mount, hood excluded) |
| Φ 78 mm (max) × L 117.2 mm (to mount, hood included) | |
| Lens Mount | DL mount |
| Weight (lens hood included) | Approx. 520 g |
| Operating Temperature | -10° to 55° C (14° to 131° F) |
| Storage Temperature | 10° to 35° C (50° to 95° F) |
| Storage Humidity | 45%-75% |
