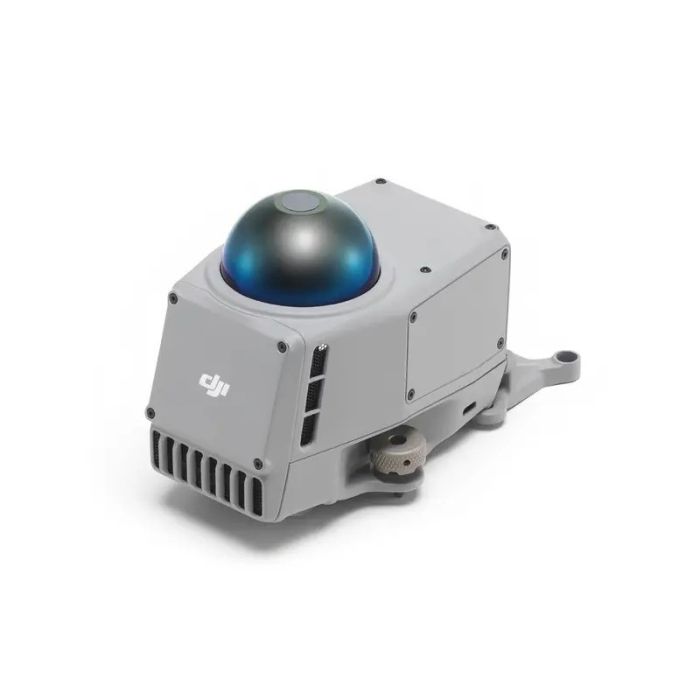

DJI Matrice 4 Series Obstacle Sensing Module
by DJIThe Obstacle Sensing Module combines rotating LiDAR and millimeter-wave radar technologies for enhanced positioning in low-light conditions.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Obstacle Sensing Module × 1
- H2.5 Hex Key × 1
- H1.5 Hex Key × 1
- Adapter Bracket (Matrice 4 series) × 1
- Reflective Stickers (for DJI Dock) × 12
The Obstacle Sensing Module combines rotating LiDAR and millimeter-wave radar technologies for enhanced positioning in low-light conditions. Operational safety is ensured in varying environments of power grid lines distribution network and the intricate layouts of substations.
Tips:
1. Ensure the aircraft is powered off before installation or removal.
2. When installing, be sure to tighten the rear screws and use the hex screwdriver included in the package to lock the hand-tightened screws to ensure secure installation.
3. After installation, update all devices to the latest firmware and activate them according to the app prompts.
4. Before flying, check that the Obstacle Sensing Module is operating normally. It is recommended to fly in environments with good GNSS signals and favorable weather conditions. The performance of the Obstacle Sensing Module may be limited in the following scenarios, so please pay attention to flight safety:
1) The aircraft cannot actively avoid fast-moving objects (such as operating wind turbines, moving tower cranes, birds in flight, etc.);
2) The obstacle avoidance and bypassing capabilities may vary due to environmental factors (clouds, fog, rain, snow, dust), and the material, position, and shape of the target object;
3) The obstacle is located within the blind spot of the Obstacle Sensing Module. For detailed information on the range of the blind spot, refer to the User Manual of the Obstacle Sensing Module;
4) When there are small branches or wires with a diameter less than 12 mm located around the flight path, or when the drone is flying vertically nearby slanting wires;
5) Due to national policy restrictions, radar cannot be activated or can only operate with limited functions in certain countries and regions.
5. The Obstacle Sensing Module contains precision components; external impacts or drops may cause damage or reduce accuracy. Please handle with care to avoid dropping.
6. When not using the Obstacle Sensing Module, please install the protective cover to prevent surface wear.
Compatibility:
DJI Matrice 4D Series
DJI Matrice 4 Series*
* The drone needs to be updated to the latest firmware.
| Product Model: | LR-01 |
| Weight: | 235 g |
| Dimensions: | 103.3×64×85.8 mm (L×W×H) |
| Operating Temperature: | - 20° to 50° C (-4° to 122° F) |
| Sensing System: | Combination of rotating LiDAR and five-direction millimeter-wave radar |
| Ingress Protection Rating: | IP55 (with Matrice 4D Series) |
