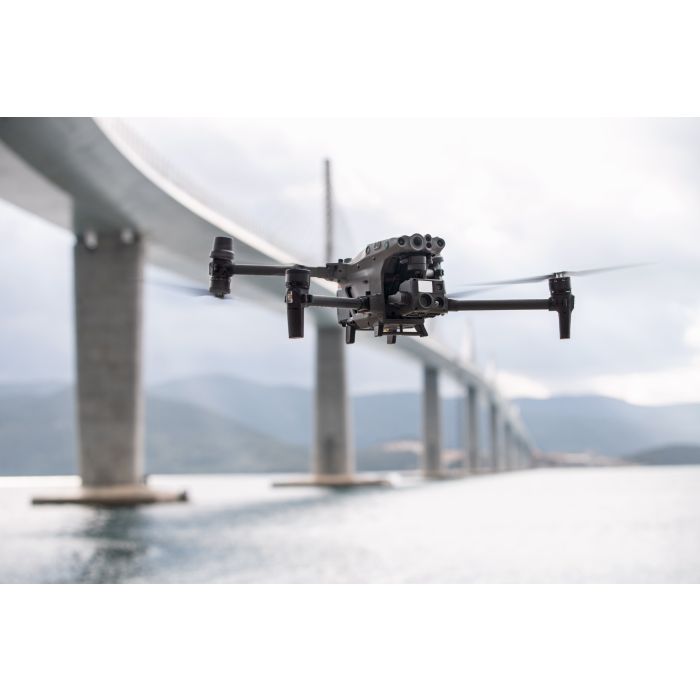

DJI Matrice 30T
by DJI
Availability:
In stock
SKU
CP.EN.00000368.01
48 MP
5x-16x Optical Zoom
12 MP
1/2'' CMOS Sensor
41-min Max Flight Time
IP55 Protection
€9,735.00
€7,788.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
Aircraft Body × 1 DJI RC Plus Remote Controller × 1 1671 Propeller (CW) × 1 1671 Propeller (CCW) × 1 USB-C Cable × 1 USB-C to USB-C Cable × 1 Carrying Case × 1 Screws and Tools × 1 BS30 Battery station × 1 *baterije nisu uključene u pakiranjeAircraft
-
Dimensions
(unfolded, excl. propellers) -
470×585×215 mm (L×W×H)
-
Dimensions (folded)
-
365×215×195 mm (L×W×H)
-
Diagonal Wheelbase
-
668 mm
-
Weight (incl. two batteries)
-
3770 ± 10 g
-
Max Takeoff Weight
-
4000 g
-
Operation Frequency[1]
-
2.4000-2.4835 GHz; 5.725-5.850 GHz
-
Transmitter Power (EIRP)
-
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC)
5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)
-
Hovering Accuracy
(windless or breezy) -
Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK)
Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)
-
RTK Positioning Accuracy
(fixed RTK enabled) -
1 cm+1 ppm (horizontal)
1.5 cm+1 ppm (vertical)
-
Max Angular Velocity
-
Pitch: 150°/sec.; Yaw: 100°/sec.
-
Max Tilt Angle
-
35° (N-mode and Forward Vision System enabled: 25°)
-
Max Ascent/Descent Speed
-
6 m/s, 5 m/s
-
Max Tilt Descent Speed
-
7 m/s
-
Max Horizontal Speed
-
23 m/s
-
Max Service Ceiling Above Sea Level (without other payload)
-
5,000 m (with 1671 propellers)
7,000 m (with 1676 propellers)
-
Max Wind Resistance
-
15 m/s
12 m/s during taking off and landing
-
Max Hover Time [2]
-
36 min
-
Max Flight Time[2]
-
41 min
-
Motor Model
-
3511
-
Propeller Model
-
1671
1676 High Altitude (not included)
-
Ingress Protection Rating[3]
-
IP55
-
GNSS
-
GPS+Galileo+BeiDou+GLONASS(GLONASS is supported only when RTK module is enabled)
-
Operating Temperature
-
-20° to 50° C (-4° to 122° F)
Gimbal
-
Angular Vibration Range
-
±0.01°
-
Controllable Range
-
Pan: ±90°
Tilt: -120° to +45°
-
Mechanical Range
-
Pan: ±105°
Tilt: -135° to +60°
Roll: ±45°
Zoom Camera
-
Sensor
-
1/2" CMOS, Effective pixels: 48M
-
Lens
-
Focal length: 21-75 mm (equivalent: 113-405 mm)
Aperture: f/2.8-f/4.2
Focus: 5 m to ∞
Wide Camera
-
Sensor
-
1/2" CMOS, Effective pixels: 12M
-
Lens
-
DFOV: 84°
Focal length: 4.5 mm (equivalent: 24 mm)
Aperture: f/2.8
Focus: 1 m to ∞
Thermal Camera
-
Thermal Imager
-
Uncooled VOx Microbolometer
-
Lens
-
DFOV: 64°
Focal length: 9.1 mm (equivalent: 40 mm)
Aperture: f/1.0
Focus: 5 m to ∞
-
Infrared Temperature Measurement Accuracy[4]
-
±2°C or ±2% (using the larger value)
FPV Camera
-
Resolution
-
1920×1080
-
DFOV
-
161°
-
Frame Rate
-
30 fps
Laser Module
-
Wavelength
-
905 nm
-
Max Laser Power
-
3.5 mW
-
Single Pulse Width
-
6 ns
-
Measurement Accuracy
-
± (0.2 m + D×0.15%)D is the distance to a vertical surface
-
Measuring Range
-
3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)
Vision Systems
-
Obstacle Sensing Range
-
Forward: 0.6-38 m
Upward/Downward/Backward/Sideward: 0.5-33 m
-
FOV
-
65° (H), 50° (V)
-
Operating Environment
-
Surfaces with clear patterns and adequate lighting (> 15 lux)
Infrared Sensing Systems
-
Obstacle Sensing Range
-
0.1 to 10 m
-
FOV
-
30°
-
Operating Environment
-
Large, diffuse, and reflective obstacles (reflectivity >10%)
TB30 Intelligent Flight Battery
-
Capacity
-
5880 mAh
-
Voltage
-
26.1 V
-
Battery Type
-
LiPo 6S
-
Energy
-
131.6 Wh
-
Net Weight
-
Approx. 685 g
-
Operating Temperature
-
-20° to 50° C (-4° to 122° F)
-
Storage Temperature
-
20° to 30° C (68° to 86° F)
-
Charging Temperature
-
-20° to 40° C (-4° to 104° F)(When the temperature is lower than 10° C (50° F), the self-heating function will be automatically enabled. Charging in a low temperature may shorten the lifetime of the battery)
-
Chemical System
-
LiNiMnCoO2
Auxiliary Lights
-
Effective Illumination Distance
-
5 m
-
Illumination Type
-
60 Hz, solid glow
Remote Controller
-
Screen
-
7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2
-
Internal Battery
-
Type: Li-ion (6500 mAh @ 7.2 V)
Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V)
Charge Time: 2 hours
Chemical System: LiNiCoAIO2
-
External Battery(WB37 Intelligent Battery)
-
Capacity: 4920 mAh
Voltage: 7.6 V
Battery Type: Li-ion
Energy: 37.39 Wh
Chemical System: LiCoO2
-
Operating Time[5]
-
Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours
-
Ingress Protection Rating[3]
-
IP54
-
GNSS
-
GPS+Galileo+BeiDou
-
Operating Temperature
-
-20° to 50° C (-4° to 122° F)
O3 Enterprise
-
Operating Frequency[1]
-
2.4000-2.4835 GHz, 5.725-5.850 GHz
-
Max Transmission Distance (unobstructed, free of interference)
-
2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)
-
Max Transmission Distance (with interference)
-
Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC)
Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC)
Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)
-
Transmitter Power (EIRP)
-
2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)
Wi-Fi
-
Protocol
-
Wi-Fi 6
-
Operating Frequency[1]
-
2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz
-
Transmitter Power (EIRP)
-
2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC)
5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC)
5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)
Bluetooth
-
Protocol
-
Bluetooth 5.1
-
Operating Frequency
-
2.4000-2.4835 GHz
-
Transmitter Power (EIRP)
-
<10 dBm
BS30 Intelligent Battery Station
-
Dimensions
-
353×267×148 mm
-
Net Weight
-
3.95 kg
-
Compatible Battery Type
-
TB30 Intelligent Flight Battery
WB37 Intelligent Battery
-
Input
-
100-240 VAC, 50/60 Hz
-
Output
-
TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously)
WB37 Intelligent Battery: 8.7 V, 6 A
-
Output Power
-
525 W
-
USB-C port
-
Max. output power of 65 W
-
USB-A port
-
Max. output power of 10 W (5 V, 2 A)
-
Power Consumption (when not charging battery)
-
< 8 W
-
Output Power (when warming up battery)
-
Approx. 30 W
-
Operating Temperature
-
-20° to 40° C (-4° to 104° F)
-
Ingress Protection Rating[3]
-
IP55 (with the cover closed properly)
-
Charging Time[6]
-
Approx. 30 min (charging two TB30 batteries from 20%-90%)
Approx. 50 min (charging two TB30 batteries from 0%-100%)
-
Protection Features
-
Anti-Backflow Protection
Short Circuit Protection
Over Voltage Protection
Over Current Protection
Temperature Protection
