DJI Inspire 2 Multilink
by DJIAllows for Multiple Operators of 1 Drone
Connects 2-4 Controllers as Master/Slave
Run Pilot/Gimbal with 2 Remotes
Run Pilot/Gimbal/Camera with 3-4 Remotes
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DJI Multilink for Inspire 2 and Cendence Controllers

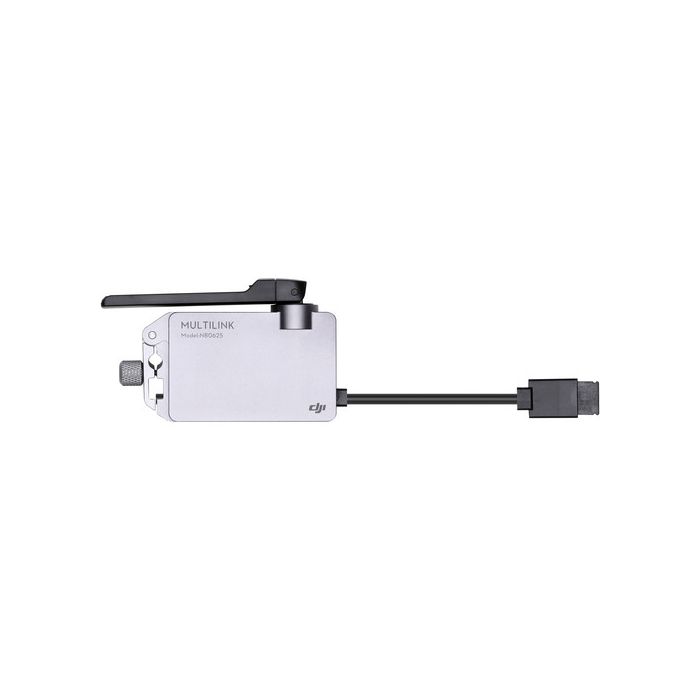

More easily perform complex multi-operator shots and maneuvers with the Multilink from DJI. Designed specifically for Inspire 2 and Cendence remote controllers, the Multilink allows for multiple remotes to control different aspects of a drone, as well as share incoming video signals. Multilink allows for one master remote and up to three slave remotes. The slave remotes send commands to the aircraft via the master remote, and the drone's image/video signal is received by the slave remotes directly from the aircraft.
Once set up, the master remote is designated as the pilot and the first slave remote is the gimbal operator. The pilot can control the gimbal as well, but not simultaneously. The second and third operators cannot control the gimbal but can control the camera itself, as can all remote operators. It's designed to connect to your Inspire 2 or Cendence controller, or an optional patch antenna module, directly via the included CAN cable. Simply use the DJI GO 4 app to complete setup and assign each remote's role.
Compatibility | DJI Inspire 2 Remote DJI Cendence Remote DJI Focus DJI Inspire 2 GPS Module DJI Patch Antenna |
LED Status Indicators | Yes |
Operating Frequency | 2400 to 2483.5 MHz 5725 to 5850 MHz |
EIRP | 2.4 GHz (FCC): <25 dBm 2.4 GHz (CE): <20 dBm 2.4 GHz (SRRC): <20 dBm 5.8 GHz (FCC): <29 dBm 5.8 GHz (CE): <14 dBm 5.8 GHz (SRRC): <19 dBm |
Maximum Communication Distance | 2.4 GHz: 492' / 150.0 m 5.8 GHz: 328' / 100.0 m |
Input | 4.2 to 5.5 VDC, 1 A (Max.) |
Maximum Delay Time | 2.4 GHz: 11.1 ms (From Master to Slave 3) 5.8 GHz: 7.5 ms (From Master to Slave 3) |
Minimum Delay Time | 2.4 GHz: 3.7 ms (From Master to Slave 1) 5.8 GHz: 2.5 ms (From Master to Slave 1) |
Operation Temperature | -4 to 104°F / -20 to 40°C |
