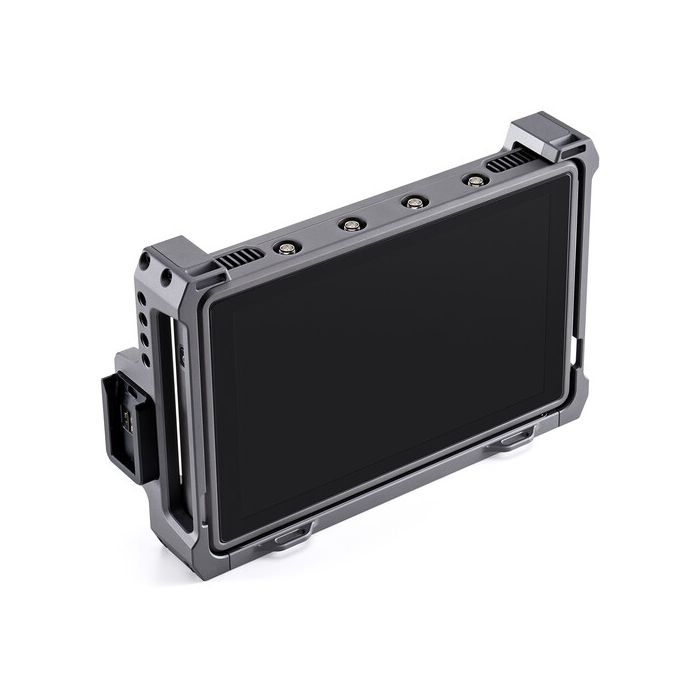

DJI Transmission High-Bright Remote Monitor
by DJI- 7", 1920 x 1200 Resolution Monitor
- 1500 cd/m² Brightness
- Built-In Wireless Receiver Monitor
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DJI High-Bright Remote Monitor
- 4 x Ronin Video Transmission Antenna
- Tempered Glass Screen Protector
- Monitor Hood
- Monitor Cage
- NP-F Battery Adapter
- WB37 Intelligent Battery
- WB37 Battery Charging Hub (USB Type-C)
- Allen Key (1.5mm)
Use the DJI High-Bright Remote Monitor to view footage from your Ronin 4D setup to provide crew members a remote view of what your gimbal is capturing. Nestled inside the included cage and receiving a wireless feed via its integrated receiver, the monitor can be used by the director to view the shot, remotely focus, or control gimbal movement.
At 7" in diameter, the monitor is neither so large as to be hard to handhold, nor so small that the 1920 x 1200 resolution makes the images difficult to see. And the 1500 cd/m² maximum brightness means you can use this monitor on both exterior and interior shoots. You can power the monitor directly from the gimbal by a power cable, or you can use a DJI WB37 battery. An included L-series adapter allows you to use an L-series battery.
Video Transmission
The High-Bright Remote Monitor supports one transmitter, and two transmission modes are available. The first is Broadcast mode, which sets no limit on the number of receivers and is suitable for monitoring with large crews. The second is Control mode, which supports the coordinated operation of two receivers.
- The High-Bright Remote Monitor can connect to the handgrips of the Ronin 4D, DJI Master Wheels, DJI Force Pro, or the new DJI Three-Channel Follow Focus.
- Enables remote control of focus and gimbal movements with high precision, recording start and stop, and camera setting adjustments.
- The built-in gyro sensor turns the monitor into a remote motion controller for the gimbal of Ronin 4D.
DJI Wireless Monitor Specs
General
|
Compatibility |
DJI Ronin 4D |
Display
|
Panel Type |
LCD |
|
Size |
7" |
|
Resolution |
1920 x 1200 |
|
Maximum Brightness |
1500 cd/m2 |
|
USB |
1 x USB Type-C (USB 3.1 / 3.2 Gen 1) Integrated Male Input/Output |
|
Video |
1 x HDMI Type A Input |
|
Audio I/O |
1 x 1/8" / 3.5 mm Output |
|
Media/Memory Card Slot |
Single Slot: microSD/microSDHC |
Power
|
Power Source |
Battery |
Environmental
|
Operating Temperature |
32 to 104°F / 0 to 40°C |
|
Storage Temperature |
-4 to 140°F / -20 to 60°C |
Physical
|
Mounting |
Multiple x 1/4"-20 |
|
Cable Length |
Not Specified by Manufacturer |
|
Dimensions |
8.5 x 6.5 x 2.3" / 216 x 166 x 58 mm (Includes Cage) |
|
Weight |
Not Specified by Manufacturer |
Packaging Info
|
Package Weight |
3.345 lb |
|
Box Dimensions (LxWxH) |
9.1 x 6.2 x 4.1" |
