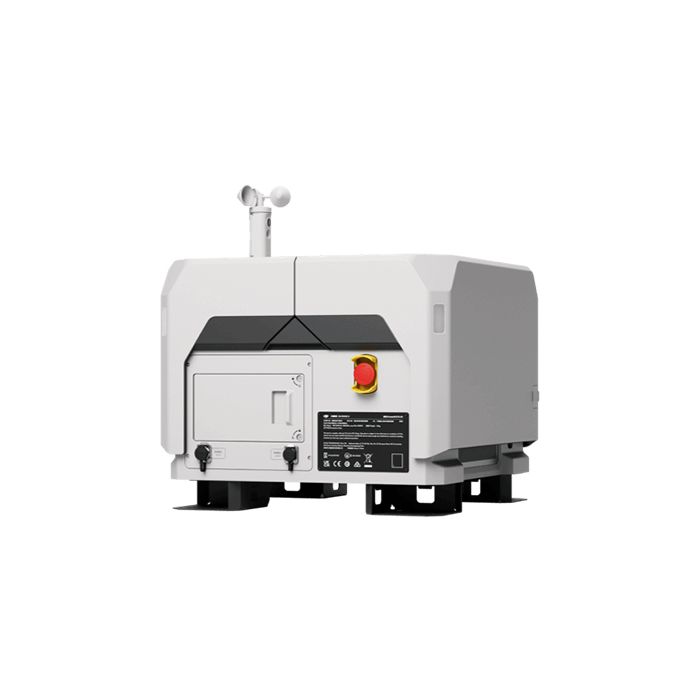

DJI Dock 2
by DJI
14-20 days delivery
SKU
DJI-DOCK-2
The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1x Dock Body
- 1x Wind Speed Gauge Module
- 1x Expansion Bolt
- 1x Ethernet Cable Connector
- 1x Power Cable Connector
- 6x Wire Ferrule
- Screws and Tools
- Manuals
The more capable yet noticeably smaller DJI Dock 2 deploys Matrice 3D or 3TD drones with ease and security. Dock 2 is lightweight, offers high-level operation capabilities, and has cloud-based intelligent functions that bring efficiency and quality to automatic operations.
Easy Deployment, Ready to Go
Lightweight Design
DJI Dock 2 is 75% smaller and 68% lighter than its predecessor and is easily transportable with just two individuals, which makes for flexible installation and reduces installation costs.
Efficient Site Evaluation
Before deployment, the aircraft can detect the surrounding environment using vision sensors and quickly determine whether the area has strong GNSS signals. This new vision-based evaluation markedly accelerates site selection, reducing the required time from five hours to twelve minutes or less.
Rugged, Reliable, Recharged
IP55 Dustproof and Waterproof
DJI Dock 2 is designed with safeguarding in mind. With an IP55 dust and water resistance rating, Dock 2 can operate steadily for extended periods even in harsh climates and environments.
Integrated Environmental Monitoring System
DJI Dock 2 integrates multiple sensors, including rainfall, wind speed, and temperature gauges, to perceive real-time weather changes. In conjunction with online weather forecasting, it can provide timely warnings or terminate flight tasks using DJI FlightHub 2 to effectively reduce flight risk.
Improved Landing Stability
With next-gen image recognition technology, the aircraft accurately identifies positioning markers on the landing pad. Additionally, the landing pad's new slide-ramp centering design further facilitates precise landing.
High-Performance Aircraft Models
The all-new DJI Matrice 3D/3TD is specifically designed for DJI Dock 2. Matrice 3D is equipped with both a tele camera and a wide-angle camera with a mechanical shutter, meeting the needs for 1:500 high-precision mapping tasks. Matrice 3TD, outfitted with a wide-angle camera, a tele camera, and an infrared camera, can depict both visible light and thermal images, making it suitable for security and inspection operations.
Superior, Comprehensive Performance
Thanks to its powerful operation capabilities, DJI Matrice 3D/3TD meets the requirements of
high-standard operations.
Steady Operation, Uncompromised Efficiency
Quick Takeoff
DJI Dock 2 integrates dual RTK antennas, allowing the aircraft to obtain accurate RTH location information without waiting for the RTK data to converge. It also performs a complete propeller inspection and takeoff in as short a time as 45 seconds, quickly entering operational status.
Quick Charging
DJI Dock 2 charges the aircraft from 20% to 90% in just 32 minutes for efficient powering for consecutive operations.
Dual-Camera Monitoring
DJI Dock 2 features an internal and an external fisheye camera to achieve real-time display. Close monitoring within and outside the dock allows the operator to remotely observe weather conditions, environmental circumstances, and the aircraft's takeoff and landing.
Cloud-Based Operation, Maximum Control
Open Ecosystem Extensive Capabilities
Third-Party Payloads
Add even more functionality, connect to third-party payloads such as loudspeakers and spotlights via the aircraft's E-Port, and remotely control added payload via DJI FlightHub 2. Additionally, the aircraft's E-Port Lite supports connection to a parachute for increased flight and personnel safety.
Edge Computing
DJI Dock 2 has an edge computing expansion interface that enables the pre-processing of media files and more to improve operational efficiency further.
Private Deployment With Cloud API
Tailor a customized management system for DJI Dock 2 with Cloud API or quickly connect it to a third-party cloud platform, facilitating efficient and convenient private deployment.
Cloud-to-Cloud Coordination
Through DJI FlightHub 2's FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of operation data.
DJI TerraAPI
With the DJI TerraAPI, users can now integrate the powerful mapping capabilities of DJI Terra into their own dock management systems. This enables automated 2D/3D reconstruction and customized photo mapping workflows, allowing the operation results of DJI Dock 2 to better meet the needs of a wide variety of industry applications.
| Dock - General | |
| Product Name | DJI Dock 2 |
| Total Weight | 34 kg (without aircraft) |
| The actual product weight may vary due to differences in batch materials and external factors. | |
| Dimensions | Dock Cover Opened: 1228×583×412 mm (L×W×H) |
| Dock Cover Closed: 570×583×465 mm (L×W×H) | |
| The above data does not include the height of the wind speed gauge (145 mm) but includes the height of the mounting base brackets (55 mm). | |
| Input Voltage | 100-240 V (AC), 50/60 Hz |
| Input Power | Max 1000 W |
| Operating Temperature | -25° to 45° C (-13° to 113° F) |
| When the ambient temperature is below -20° C (-4° F), the dock is in standby status, and the aircraft cannot perform flight tasks. | |
| Ingress Protection Rating | IP55 |
| Number of Drones Accommodated | 1 |
| Max Allowable Landing Wind Speed | 8 m/s |
| Max Operating Altitude | 4000 m |
| Receiving Frequency of RTK Base Station Satellite | Simultaneously receive: |
| GPS: L1 C/A, L2 | |
| BeiDou2: B1l, B2l, B3l | |
| BeiDou3: B1l, B3l | |
| GLONASS: L1, L2 | |
| Galileo: E1, E5B | |
| Positioning Accuracy of RTK Base Station | Horizontal: 1 cm + 1 ppm (RMS) |
| Vertical: 2 cm + 1 ppm (RMS) | |
| Dock - Charging Performance | |
| Output Voltage | 28 V DC |
| Charging Time | 32 minutes |
| The data was measured when charging the aircraft (when powered off) from 20% to 90% in a 25° C (77° F) environment. | |
| Dock - Video Transmission | |
| Video Transmission System | O3 Enterprise |
| Operating Frequency | 2.4000-2.4835 GHz |
| 5.725-5.850 GHz | |
| Antenna | Built-in 4 antennas, 2T4R, supports intelligent switching |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC); < 20 dBm (CE/SRRC/MIC) |
| 5.8 GHz: < 33 dBm (FCC); < 14 dBm (CE); < 23 dBm (SRRC) | |
| Dock - Air Conditioning System | |
| Operating Voltage | 28 V DC |
| Air Conditioning Type | TEC Air Conditioning |
| Dock - Backup Battery | |
| Battery Capacity | 12 Ah |
| Output Voltage | 12 V |
| Battery Type | Lead-acid battery |
| Battery Life | > 5 hours |
| Measured with a fully charged backup battery in a 25° C (77° F) environment. After a power outage, the dock does not support functions like aircraft charging, air conditioning, dock cover heating, and wind speed gauge heating. Always check malfunctions promptly. | |
| Dock- Network Access | |
| Ethernet Access | 10/100/1000Mbps adaptive Ethernet port |
| Dock - Sensor | |
| Wind Speed Sensor | Supported |
| Rainfall Sensor | Supported |
| Ambient Temperature Sensor | Supported |
| Water Immersion Sensor | Supported |
| In-Cabin Temperature Sensor | Supported |
| In-Cabin Humidity Sensor | Supported |
| Dock - Security Camera (External) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary Light | Auxiliary White Light |
| Dock - Security Camera (Internal) | |
| Resolution | 1920×1080 |
| Field of View (FOV) | 151° |
| Auxiliary Light | Auxiliary White Light |
| Dock- Lightning Protection | |
| AC Power Port | 20 kA (rated value), meets EN 61643-11 Type 2 and IEC 61643-1 Class Ⅱ protection level requirements |
| Ethernet Port | 10 kA (Itotal )，meets EN/IEC 61643-21 Category C protection level requirements |
| Dock - Supported Software | |
| Applications | DJI Pilot 2 (connects to DJI Dock 2 via DJI RC Pro Enterprise for deployment and commissioning) |
| Cloud Platform | DJI FlightHub 2 (supported by default) |
| Third-party cloud platforms (accessed through DJI Cloud API) | |
| Dock - Expansion Capability | |
| Open Protocol | DJI Cloud API |
| Edge Computing | Supports data communication with external switches |
| Aircraft - General | |
| Weight | 1410 g |
| This value includes the weight of the battery, propellers, and a microSD card, but does not include third-party payloads. The actual product weight may vary due to differences in batch materials and external factors. | |
| Max Takeoff Weight | 1610 g |
| Dimensions | 335×398×153 mm (L×W×H, without propellers) |
| Wheelbase | Diagonal Wheelbase: 463.2 mm |
| Left-Right Wheelbase: 359.9 mm | |
| Front-Rear Wheelbase: 291.4 mm | |
| Max Ascent Speed | 6 m/s (Normal Mode) |
| 8 m/s (Sport Mode) | |
| Max Descent Speed | 6 m/s (Normal Mode) |
| 6 m/s (Sport Mode) | |
| Max Horizontal Speed (at sea level, no wind) | Normal Mode, With Obstacle Sensing Enabled: 15 m/s flying forward, 12 m/s flying backward, 10 m/s flying sideways |
| Sport Mode: 21 m/s flying forward, 18 m/s flying backward, 16 m/s flying sideways | |
| Max Wind Speed Resistance | During Operation: 12 m/s |
| During Takeoff/Landing: 8 m/s | |
| Max Takeoff Altitude | 4000 m |
| Max Flight Time | 50 minutes |
| Measured in a controlled test environment. Specific test conditions are as follows: flying forward at a constant speed of 46.8 kph in a windless laboratory environment at 20 meters above sea level, in photo mode (without photo-taking operation during flight), with Obstacle Avoidance Action set to Off, and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. | |
| Max Hovering Time | 40 minutes |
| Measured with the DJI Matrice 3D series drones hovering in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. | |
| Max Operating Radius | 10 km |
| Measured in an environment of approximately 25° C (77° F) with a safe battery level of 25%, ambient wind speed of approximately 4 m/s, round-trip flight speed of approximately 15 m/s, and hovering operation of 10 minutes. Results may vary depending on the environment, actual use, and firmware version. | |
| Max Flight Distance | 43 km |
| Measured with DJI Matrice 3D/3TD flying at a constant speed of 54 kph in a windless environment at 20 meters above sea level and from 100% battery level until 0%. Results may vary depending on the environment, actual use, and firmware version. | |
| Max Pitch Angle | 25° (Normal Mode) |
| 25° (Sport Mode) | |
| Max Angular Velocity | 250°/s |
| Global Navigation Satellite System | GPS + Galileo + BeiDou + GLONASS (GLONASS is supported only when the RTK module is enabled.) |
| Hovering Accuracy Range (windless or breezy) | Vertical: |
| ±0.1 m (with vision positioning) | |
| ±0.5 m (with GNSS positioning) | |
| ±0.1 m (with RTK positioning) | |
| Horizontal: | |
| ±0.3 m (with vision positioning) | |
| ±0.5 m (with GNSS positioning) | |
| ±0.1 m (with RTK positioning) | |
| Operating Temperature | -20° to 45° C (-4° to 113° F) |
| Ingress Protection Rating | IP54 |
| Motor Model | 2607 |
| Propeller Model | 1149, foldable, non-quick release |
| RTK Module | Integrated on the aircraft |
| Beacon | Integrated on the aircraft |

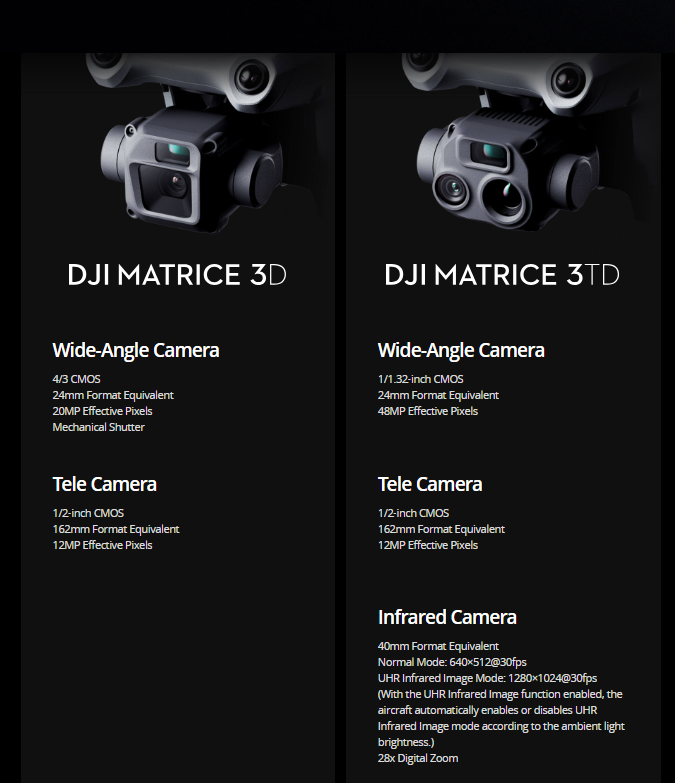

| Aircraft - Wide-Angle Camera | |
| Image Sensor | DJI Matrice 3D: 4/3 CMOS, Effective Pixels: 20 MP |
| DJI Matrice 3TD: 1/1.32-inch CMOS, Effective Pixels: 48 MP | |
| Lens | DJI Matrice 3D |
| FOV: 84° | |
| Format Equivalent: 24 mm | |
| Aperture: f/2.8-f/11 | |
| Focus: 1 m to ∞ | |
| DJI Matrice 3TD | |
| FOV: 82° | |
| Format Equivalent: 24 mm | |
| Aperture: f/1.7 | |
| Focus: 1 m to ∞ | |
| Lens Defogging | DJI Matrice 3D: The wide-angle camera supports lens defogging. |
| DJI Matrice 3TD: The wide-angle camera supports lens defogging. | |
| ISO Range | DJI Matrice 3D: 100-6400 |
| DJI Matrice 3TD: 100-25600 | |
| Shutter Speed | DJI Matrice 3D |
| Electronic Shutter: 8-1/8000 s | |
| Mechanical Shutter: 8-1/2000 s | |
| DJI Matrice 3TD | |
| Electronic Shutter: 8-1/8000 s | |
| Max Image Size | DJI Matrice 3D: 5280×3956 |
| DJI Matrice 3TD: 8064×6048 | |
| Still Photography Modes | DJI Matrice 3D |
| Single: 20 MP | |
| Timed: 20 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
| Smart Low-Light: 20 MP | |
| Panorama: 20 MP (raw image); 100 MP (stitched image) | |
| DJI Matrice 3TD | |
| Single: 12 MP, 48 MP | |
| Timed: 12 MP, 48 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s* | |
| Smart Low-Light: 12 MP | |
| Panorama: 12 MP (raw image); 100 MP (stitched image) | |
| * The 0.7s and 1s intervals are not supported when taking 48MP timed photos. | |
| Video Resolution | H.264 |
| 4K: 3840×2160@30fps | |
| FHD: 1920×1080@30fps | |
| Video Bitrate | DJI Matrice 3D |
| 4K: 130 Mbps | |
| FHD: 70 Mbps | |
| DJI Matrice 3TD | |
| 4K: 85 Mbps | |
| FHD: 30 Mbps | |
| Supported File System | exFAT |
| Photo Format | JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Aircraft - Tele Camera | |
| Image Sensor | 1/2-inch CMOS, Effective Pixels: 12 MP |
| Lens | FOV: 15° |
| Format Equivalent: 162 mm | |
| Aperture: f/4.4 | |
| Focus: 3 m to ∞ | |
| Lens Defogging | DJI Matrice 3D: The tele camera supports lens defogging. |
| DJI Matrice 3TD: The tele camera supports lens defogging. | |
| ISO Range | DJI Matrice 3D: 100-6400 |
| DJI Matrice 3TD: 100-25600 | |
| Shutter Speed | Electronic Shutter: 8-1/8000 s |
| Max Image Size | 4000×3000 |
| Photo Format | JPEG |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Still Photography Modes | DJI Matrice 3D |
| Single: 12 MP | |
| Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
| Smart Low-Light: 12 MP | |
| DJI Matrice 3TD | |
| Single: 12 MP | |
| Timed: 12 MP, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
| Smart Low-Light: 12 MP | |
| Video Resolution | H.264 |
| 4K: 3840×2160@30fps | |
| FHD: 1920×1080@30fps | |
| Video Bitrate | DJI Matrice 3D |
| 4K: 130 Mbps | |
| FHD: 70 Mbps | |
| DJI Matrice 3TD | |
| 4K: 85 Mbps | |
| FHD: 30 Mbps | |
| Digital Zoom | 8x (56x hybrid zoom) |
| Aircraft - Infrared Camera (DJI Matrice 3TD) | |
| Thermal Imager | Uncooled VOx Microbolometer |
| Pixel Pitch | 12 μm |
| Frame Rate | 30 Hz |
| Lens | |
| FOV: 61° | |
| Format Equivalent: 40 mm | |
| Aperture: f/1.0 | |
| Focus: 5 m to ∞ | |
| Do not expose the infrared camera lens to strong sources of energy, such as the sun, lava, or a laser beam. Otherwise, the camera sensor may be burned, leading to permanent damage. | |
| Sensitivity | ≤ 50 mK@F1.0 |
| Temperature Measurement Method | Spot Measurement, Area Measurement |
| Temperature Measurement Range | -20° to 150° C (-4° to 302° F, High Gain Mode) |
| 0° to 500° C (32° to 932° F, Low Gain Mode) | |
| Palette | White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2 |
| Photo Format | JPEG (8-bit) |
| R-JPEG (16-bit) | |
| Video Resolution | Normal Mode: 640×512@30fps |
| UHR Infrared Image Mode: 1280×1024@30fps (With the UHR Infrared Image function enabled, the aircraft can automatically enable or disable UHR Infrared Image mode according to the ambient light brightness.) | |
| Video Bitrate | 6 Mbps |
| Video Format | MP4 (MPEG-4 AVC/H.264) |
| Still Photography Modes | Single |
| Normal Mode: 640×512 | |
| UHR Infrared Image Mode: 1280×1024 | |
| Timed | |
| Normal Mode: 640×512, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
| UHR Infrared Image Mode: 1280×1024, 0.7/1/2/3/5/7/10/15/20/30/60 s | |
| Digital Zoom | 28x |
| Infrared Wavelength | 8-14 μm |
| Infrared Temperature Measurement Accuracy | ±2° C or ±2% (using the larger value) |
| Aircraft - Gimbal | |
| Stabilization | 3-axis mechanical gimbal (tilt, roll, pan) |
| Mechanical Range | Tilt: -135° to +45° |
| Roll: -45° to +45° | |
| Pan: -27° to +27° | |
| Controllable Range | Tilt: -90° to +35° |
| Pan: Not controllable | |
| Max Control Speed (tilt) | 100°/s |
| Angular Vibration Range | ±0.005° |
| Aircraft - Sensing | |
| Sensing Type | The aircraft supports six-directional obstacle sensing. |
| The aircraft has a 10° blind spot in the upper rear area. Always fly with caution. | |
| Forward | Measurement Range: 0.5-21 m |
| Detection Range: 0.5-200 m | |
| Effective Sensing Speed: Flight Speed ≤ 15 m/s | |
| FOV: Horizontal 90°, Vertical 90° | |
| Backward | Measurement Range: 0.5-23 m |
| Effective Sensing Speed: Flight Speed ≤ 12 m/s | |
| FOV: Horizontal 90°, Vertical 90° | |
| Lateral | Measurement Range: 0.5-15 m |
| Effective Sensing Speed: Flight Speed ≤ 10 m/s | |
| FOV: Horizontal 104°, Vertical 90° | |
| Upward | Measurement Range: 0.5-21 m |
| Effective Sensing Speed: Flight Speed ≤ 6 m/s | |
| FOV: Front and Back 90°, Left and Right 90° | |
| Downward | Measurement Range: 0.5-14 m |
| Effective Sensing Speed: Flight Speed ≤ 6 m/s | |
| FOV: Front and Back 95°, Left and Right 110° | |
| Operating Environment | Forward, Backward, Left, Right, and Upward: Surfaces with discernible patterns and adequate lighting (lux > 15) |
| Downward: Diffuse reflective surface with diffuse reflectivity > 20% (e.g. walls, trees, people) and adequate lighting (lux > 15) | |
| Aircraft - Video Transmission | |
| Video Transmission System | DJI O3 Enterprise Transmission |
| Live View Quality | 720p/30fps, 1080p/30fps (with DJI RC Pro Enterprise) |
| 540p/30fps, 720p/30fps, 1080p/30fps (with DJI FlightHub 2) | |
| Operating Frequency | 2.4000-2.4835 GHz |
| 5.150-5.250 GHz (CE: 5.170-5.250 GHz) | |
| 5.725-5.850 GHz | |
| In some countries and regions, the 5.1GHz and 5.8GHz frequency bands are prohibited, or the 5.1GHz frequency band is only allowed for indoor use. Please refer to local laws and regulations for more information. | |
| Max Transmission Distance (unobstructed, free of interference) | DJI Matrice 3D |
| FCC: 15 km | |
| CE: 8 km | |
| SRRC: 8 km | |
| MIC: 8 km | |
| DJI Matrice 3TD | |
| FCC: 15 km | |
| CE: 8 km | |
| SRRC: 8 km | |
| MIC: 8 km | |
| Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in DJI FlightHub 2 during your flight. | |
| Max Transmission Distance (unobstructed, with interference) | Strong Interference (dense buildings, residential areas, etc.): 1.5-3 km (FCC/CE/SRRC/MIC) |
| Medium Interference (suburban areas, city parks, etc.): 3-9 km (FCC), 3-6 km (CE/SRRC/MIC) | |
| Low Interference (open spaces, remote areas, etc.): 9-15 km (FCC), 6-8 km (CE/SRRC/MIC) | |
| Measured with the aircraft flying (without third-party payloads) in unobstructed environments with typical interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in DJI FlightHub 2 during your flight. | |
| Max Download Speed | 5 MB/s (with DJI Dock 2) |
| 15 MB/s (with DJI RC Pro Enterprise) | |
| Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions. | |
| Lowest Latency | The video transmission latency from the aircraft to the dock is approximately 110 to 150 milliseconds (affected by the actual environmental conditions). |
| The video transmission latency from the dock to DJI FlightHub 2 is affected by the actual network conditions and the computer's configuration. | |
| Antenna | 4 antennas, 2T4R |
| Transmitter Power (EIRP) | 2.4 GHz: < 33 dBm (FCC), < 20 dBm (CE/SRRC/MIC) |
| 5.1 GHz: < 23 dBm (CE) | |
| 5.8 GHz: < 33 dBm (FCC/SRRC), < 14 dBm (CE) | |
| Aircraft - Storage | |
| Supported Memory Cards | Aircraft: |
| U3/Class10/V30 or above is supported. A list of recommended microSD cards can be found below. | |
| Recommended microSD Cards | Aircraft: |
| SanDisk Extreme 32GB V30 A1 microSDHC | |
| SanDisk Extreme PRO 32GB V30 A1 microSDHC | |
| SanDisk Extreme 512GB V30 A2 microSDXC | |
| Lexar 1066x 64GB V30 A2 microSDXC | |
| Kingston Canvas Go! Plus 64GB V30 A2 microSDXC | |
| Kingston Canvas React Plus 64GB V90 A1 microSDXC | |
| Kingston Canvas Go! Plus 128GB V30 A2 microSDXC | |
| Kingston Canvas React Plus 128GB V90 A1 microSDXC | |
| Kingston Canvas React Plus 256GB V90 A2 microSDXC | |
| Samsung PRO Plus 256GB V30 A2 microSDXC | |
| Aircraft - Battery | |
| Capacity | 7811 mAh |
| Voltage | 14.76 V |
| Max Charging Voltage | 17.0 V |
| Type | Li-ion 4S |
| Chemical System | LiNiMnCoO2 |
| Energy | 115.2 Wh |
| Weight | 544 g |
| Cycle Count | 400 |
| Charging Temperature | 5° to 45° C (41° to 113° F) |
| Aircraft - Power Adapter | |
| Input | 100-240 V (AC), 50/60 Hz, 2.5 A |
| Output Power | 100 W |
| Output | Max output power of 100 W (total) |
| When both ports are used, the power adapter will dynamically allocate the output power of the two ports according to the load power, and the maximum output power of one of the ports is 82 W. | |
| Aircraft - Charging Base | |
| Input | USB-C: 5-20 V, 5.0 A |
| Output | Battery Port: 12-17 V, 8.0 A |
| Rated Power | 100 W |
| Charging Type | One battery charged at a time |
| Charging Temperature | 5° to 40° C (41° to 104° F) |
