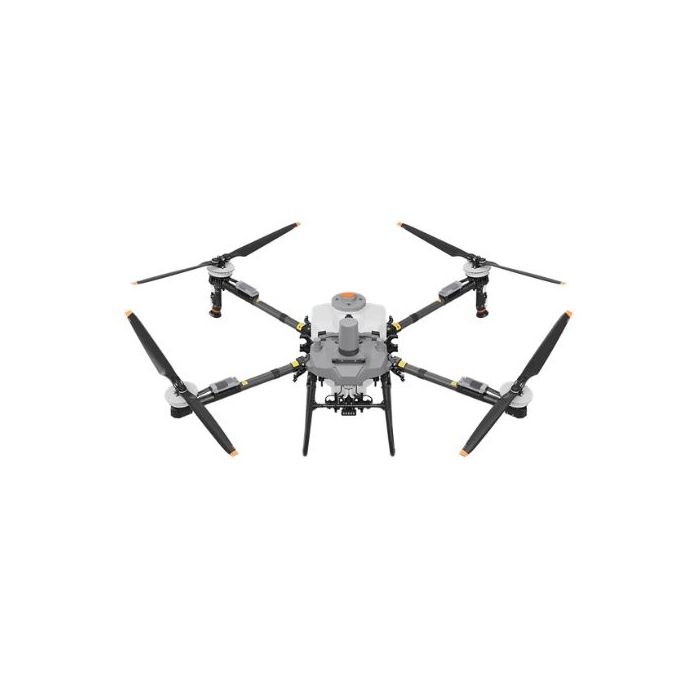

DJI Agras T70P Drone

The DJI Agras T70P agricultural drone is newly upgraded to support spraying, spreading, and lifting in various operational scenarios, with a maximum payload capacity of 70 kg. It delivers enhanced efficiency while featuring Safety System 3.0 and advanced algorithms for comprehensive, round-the-clock protection.

Spraying System

Efficient Operation, Outstanding Performance.

The T70P comes equipped with a 70 L tank and dual atomization centrifugal sprinklers, offering high flow rates for faster flight speeds and greater operational efficiency in field applications. Orchard users can choose an optional mist sprinkler set, which upgrades both flow rate and atomization effects, ensuring thorough penetration even through dense canopies and tall plants.

Water-Cooled Mist Sprinklers (Optional)
Fine droplets as small as 50 μm penetrate canopies effectively, ensuring thorough leaf coverage. The newly designed liquid flow path rapidly dissipates heat generated by dual centrifugal motors, enhancing durability and extending the system's lifespan.

Dual Atomization Centrifugal Sprinklers
New flow path design, dual spinklers support a maximum flow rate of 30 L/min, Particle size range of 50-500 μm, suitable for most operational scenarios.

Magnetic Drive Impeller Pumps
Corrosion-resistant, stable, and reliable, an optimized impeller structure and increased chamber volume meet the high flow demands of orchard scenarios.

Solenoid Valves
Precision starting and stopping eliminates leaking.

Dual-Channel Electromagnetic Flow Meter
Real-time precise flow detection and dynamic control ensures high-precision operations. It avoids direct contact with the liquid, preventing corrosion and enhancing durability.

Spreading System

Outstanding Efficiency and Performance

The T70P features a new spreading system with a larger payload and capacity, delivering a 270% increase in spreading flow rate for significantly improved efficiency. Equipped with a new screw feeder, it supports a wide range of granulars and excels in diverse scenarios, including fields, orchards, and aquaculture.

Brand-New Screw Feeder
Spreading accuracy doubled, flow rate increased by 270%, and granulars applicability further enhanced.

High-Precision Weighing Sensor
Provides real-time, accurate granulars quantity display for precise usage and refilling, effectively minimizing waste. It also supports automatic flow calibration and cloud-based storage of operation templates, ensuring precise and convenient spreading.

Centrifugal Spreader Disc
Ensures uniform spreading across the entire flow range with outstanding results. Features a stainless steel cap for durability and strength.

Large Loading Gate
Allows for easy and convenient bulk loading.

Four Feeder Types for Different Granulars
Supports four interchangeable feeder sizes for precise flow and greater adaptability across seeding, fertilizing, and feeding.

Extra-Large Feeder
Suitable for granulars such as fertilizers, wheat seeds, granular fungicides, feed, etc.

Recommended application rate: 75-750 kg per hectare.
Recommended particle size: 0.5-10 mm

Large Feeder (Optional)
Suitable for granulars such as rice seeds, cover crop seeds, etc.

Recommended application rate: 75-270 kg per hectare.
Recommended particle size: 4-10 mm

Medium Feeder
Suitable for granulars such as rice seeds.

Recommended application rate: 22.5-120 kg per hectare.
Recommended particle size: 4-6 mm

Medium-Small Feeder (Optional)
Suitable for granulars such as aquatic feed and other high-volume, small-particle materials.

Recommended application rate: 22.5–120 kg per hectare.
Recommended particle size: 0.5-2 mm

Small Feeder (Optional)
Suitable for granulars such as rapeseed, granular herbicides, grass seeds, granular insecticides, etc.

Recommended application rate: 3-22.5 kg per hectare.
Recommended particle size: 0.5-4 mm

Safety System

Obstacle Avoidance, AR Enhanced Display

The T70P is equipped with intelligent obstacle avoidance and AR-enhanced display. With Safety System 3.0, its radar and vision systems work together with upgraded algorithms to deliver comprehensive obstacle awareness, enabling smooth navigation and effortless maneuvering through fields.

Millimeter-Wave Radar
The front radar performs 5,000 vertical airspace scans per second combined with 360° horizontal mechanical rotation scanning, along with a rear radar, offering a more comprehensive detection range.

Tri-Vision System
Two black-and-white fisheye cameras and an FPV camera work in tandem with radar through visual fusion algorithms to enhance Terrain Following and obstacle avoidance capabilities.

Night Navigation Light
In addition to the existing low beam lights, new front-facing high beams and downward supplemental lighting have been added. The downward lighting automatically activates during landing, ensuring safer nighttime operations.

Night Vision Color FPV Camera
Utilizing virtual gimbal technology, the FPV camera's pitch angle can be freely adjusted. It supports night vision mode, and when combined with night navigation lights, obstacles remain clearly visible even in the dark.

Obstacle Avoidance Capability
Supports 360° horizontal and upward obstacle avoidance, along with steep slope Terrain Following without aerial mapping. The detection rate for diagonal cables and power lines has been improved, ensuring all field obstacles are clearly detected.

Intelligent Obstacle Bypassing
The newly upgraded Safety System 3.0 incorporates intelligent detection algorithms, enabling obstacle detection and smarter route selection, significantly improving obstacle clearance rates. Additionally, it features an advanced terrain mapping algorithm that accurately extracts terrain features for high-precision Terrain Following operations in agricultural settings.

Obstacle Type Detection
With more precise detection capabilities and smarter algorithms, obstacle types can be clearly displayed on the remote controller and saved to field information with one click, enhancing flight safety.

AR Safety Assistance
Supports AR Display for Utility Pole, Vehicles, and Obstacles during takeoff and landing, generates AR flight paths during operation, and provides flight trajectory prompts. It also features a safe landing projection to assist with return and landing.

Terrain Following Without Mapping
Navigates mountain slopes up to 90˙ without the need for aerial mapping, meeting the operational needs od more orchards.

Arm Safety Locks
Automatically detects arm lock status before operation to ensure operational safety.

Lift System

Your Transport Assistant

The T70P transforms into a transport solution with a lifting capacity of 65 kg[5] it carries more and travels further. Features like Auto Balance Control, weight detection, and automatic navigation to loading and unloading points make it adaptable to various agricultural transport scenarios.

Automatic Balance Control
Utilizing a triaxial force sensor, the drone can automatically adjust its posture during flight to eliminate swinging, ensuring safer operations.

Real-Time Weighing
A triaxial force sensor provides real-time weight monitoring to prevent overloading and ensure operational safety.

Marking Loading and Unloading Points by Mobile
Operators can use their mobile phones, in conjunction with the RTK module, to add load and unload points, which are then synced to the remote controller. Pilots can quickly locate destinations using AR projection on the controller.

Automatic Flight
Freely select loading and unloading points and reach them with a single click.

Propulsion System

Powerful Performance, Higher Efficiency

The T70P, through further optimization of the power system, effectively reduces energy consumption while maintaining the same operational area and effectiveness.

62-Inch Carbon Fiber Propellers
Carbon fiber propellers offer greater rigidity and lighter weight, resisting deformation even at high temperatures. With optimized airfoil and increased diameter, efficiency is improved by 15%.

Motor Optimization
With enhancements in motor electromagnetics and craftsmanship, efficiency is improved by 3%.

Swing Propellers Clamp
Reduces body vibration by 40%, resulting in more stable flight and lower power consumption.
