Desview SP17-FHD Full HD 1080p Professional Director Monitor
by Desview
Availability:
7-10 days delivery
SKU
DES-SP17-FHD

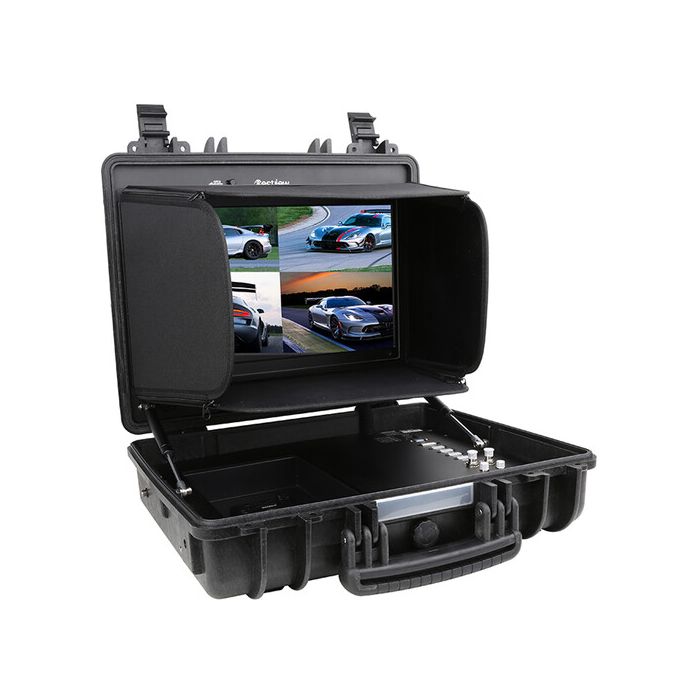

17.3" 1920 x 1080 HDR Video Monitor
Built into Lid of Hard-Shell Case
€1,399.00
€1,119.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Desview SP17-FHD 17.3" UHD 4K Multiview Portable Broadcast Monitor
- Power Supply
- HDMI-A to HDMI-A Cable
- Sunshade
- Microfiber Cloth
Bring multiview 4K monitoring wherever you go using the SP17-FHD 17.3" UHD 4K Multiview Portable Broadcast Monitor from Desview. The 1920 x 1080 display is built into the lid of a hard-shell case and can be powered via the V-mount battery plate or the included XLR AC adapter. Ideal for ENG, live broadcast, and mobile production, it has both 3G-SDI and HDMI inputs and outputs, supports up to DCI 4K24 and UHD 4K60 video, and offers quad PiP/PbP format displays. A contrast ratio of 1000:1, 400 cd/m² brightness, and Rec.709/DPI-P3 color help to produce crisp images. This monitor also has a 3.5mm headphone jack, two built-in speakers, and an RJ45 tally port.
Rugged Design
- This 17.3" monitor is built into the lid of a rugged, hard-shell case.
- Ideal for use in ENG, live broadcasts, and post workflows.
High-Contrast Display
- This monitor features a 1920 x 1080 backlit LCD screen with a contrast ratio of 1000:1.
- Provides a wide 178° viewing angle both horizontally and vertically.
- Offers 400 cd/m² brightness.
Up to DCI 4K24 Input
- Supports multiple video formats up to DCI 4K24 via HDMI and up to UHD 4K60 via HDMI and 3G-SDI.
- Four HDMI inputs and one HDMI output, two SDI inputs, and one SDI output.
Built-In LUTs
- Built-in LUTs for SMPTE/EBU/REC709/DCI-P3 color spaces.
- 2.4/2.6 gamma selection.
| Display | |
| Panel Type | LCD |
| Display Size | 17.3" / 43.9 cm |
| Screen Area |
15.04 x 8.46" / 382.12 x 214.94 mm
|
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| HDR Support |
Not Specified by Manufacturer
|
| Pixels Per Inch (ppi) | 127 ppi |
| Inputs / Outputs | |
| Video I/O | 2x HDMI 2.0 Input |
| 2x HDMI 1.4 Input | |
| 2x BNC (3G-SDI) Input | |
| 1x HDMI Output | |
|
1x BNC (3G-SDI) Output
|
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | Stereo |
| Power I/O | 1x XLR 4-Pin Input |
| Other I/O | 1x USB-A |
| 1x RJ45 (Tally) | |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| DCI 4K: 24 | |
|
UHD 4K: 60/50/30/25/24
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24
|
|
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| SDI | |
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24
|
|
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576i: 50 | |
| 480i: 60/59.94 | |
| Gamma Curve | DCI-P3, Rec709 |
| Power | |
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Battery Type | 1x V-Mount |
| Power Consumption | 26 W |
| Packaging Info | |
| Package Weight | 30.725 lb |
| Box Dimensions (LxWxH) | 21.9 x 19.9 x 9" |
