Desview S24F 4K Professional Director Monitor
by Desview
Availability:
7-10 days delivery
SKU
DES-S24F
3840 x 2160 Resolution at 60 Hz
24" 10-Bit IPS Screen
€1,599.00
€1,279.20
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Desview 4K UHD LED Quad Split-View Broadcast Monitor
- Sun Hood
- IEC Power Cable
- HDMI Cable
- SDI Cable
- Wipe Cloth

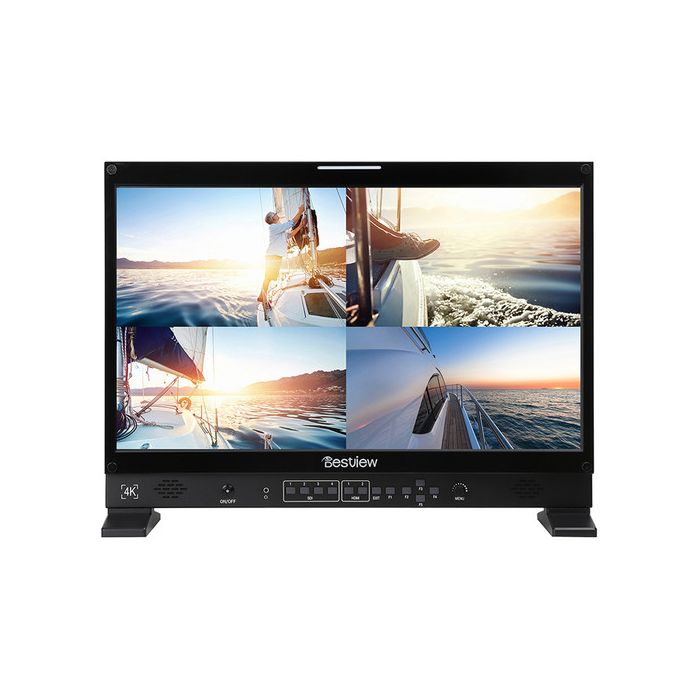

The 4K UHD Broadcast Monitor from Desview is a monitor with a 24" 10-bit IPS screen that has multiple viewing options, including quad and multi-view. It supports a resolution of up to 3840 x 2160 at 60 Hz and has an aspect ratio of 16:9. This monitor has a 178° wide viewing angle and a brightness of 400 cd/m². It features four SDI inputs, four SDI thru-puts, two HDMI inputs, a tally RJ45 input, audio (L/R) input, a stereo headphone output, and stereo built-in speakers. This monitor can be powered via an AC power cable, XLR power adapter, or a V-mount battery (available separately). It includes a sun hood, a HDMI cable, a SDI cable, and a wipe cloth.
- Rec. 709 standard for color calibration
- Acrylic screen for panel protection
- Short-cut setting can be customized by users
- PIP/PBP multi-view function allows multiple cameras to connect at the same time
- Picture switch
- R/G/B check field
- Peaking
- Center mark
- Safe area
- Display ratio
- Underscan
- Supports 110-220 VAC, 12 VDC XLR power supply, or V-lock battery
- Sunhood with zip design is easy to open
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 24.00" / 61.0 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09 |
| Viewing Angle | 178° |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| Color Support |
1.07 Billion Colors (10-Bit)
|
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 255 ppi |
| Real-Time LUT Monitoring | No |
| Inputs / Outputs | |
| Video I/O | 2x HDMI 2.0 Input |
| 4x BNC (HD-SDI) Input | |
|
4x BNC (HD-SDI) Output
|
|
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | Stereo |
| Power I/O | 1x IEC Input |
| 1x XLR 4-Pin Input | |
| Other I/O | 1x RJ45 (Tally) |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| UHD 4K | |
| SDI | |
| 1080p | |
| Power | |
| Input Power |
110 to 265 VAC, 50 / 60 Hz
|
| Built-In Battery | Yes |
| Battery Type | 1x V-Mount |
| Power Consumption | 26 W (Maximum) |
| Environmental | |
| Certifications | CE, FCC, RoHS |
| Operating Temperature | 22 to 92°F / -10 to 60°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature |
-4 to -112°F / -20 to -80°C
|
| General | |
| Dimensions |
21.9 x 15.5 x 1.6" / 556 x 394 x 40 mm
|
| Weight | 25.35 lb / 11.5 kg |
| Packaging Info | |
| Package Weight | 39 lb |
| Box Dimensions (LxWxH) | 27 x 20 x 13" |
