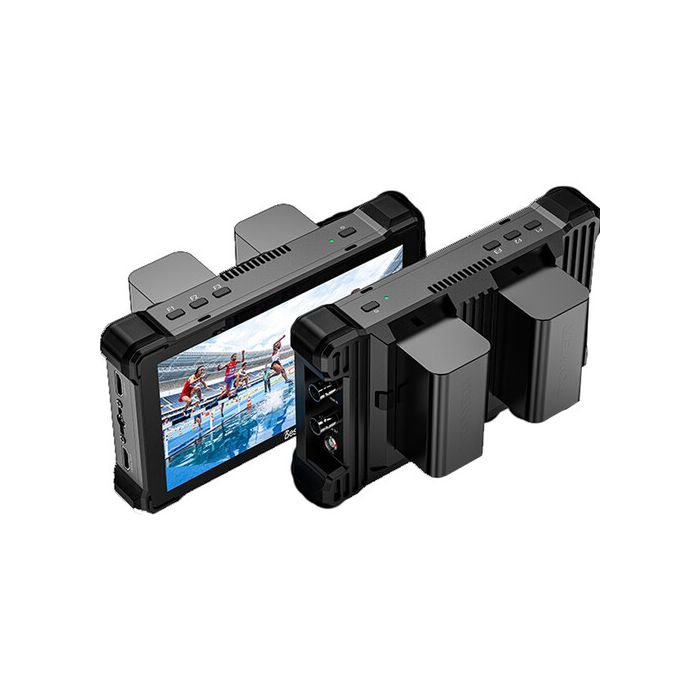

Desview R7S III 7inch On-Camera Monitor
by Desview7" 1920 x 1080 Touchscreen Display
2800 cd/m² Brightness, 1000:1 Contrast
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Desview R7S III 7" High-Bright 1080p Touchscreen HDMI/3G-SDI Monitor with Dual L-Series Plate
- Coiled D-Tap Power Cable
- Micro-HDMI Cable
- HDMI Cable
- Monitor Mount
- USB-A Flash Drive
- Dust Cloth
- Carry Bag
The R7SIII 7" High-Bright 1080p Touchscreen Monitor with 4K60 HDMI/3G-SDI I/O from Desview enables you to view your video capture using a sharp 7" IPS LCD with 1920 x 1080 resolution, 2800 cd/m² of brightness, 1000:1 contrast ratio, 10-bit color, and touchscreen control. Features include a viewing angle of 178°, HDMI 2.0 and 3G-SDI input and output, LUT import via the USB-A port, a 3.5mm headphone output, and support for up to DCI 4K60 HDMI video input and output with embedded audio. There are numerous imaging tools built into the monitor, including vectorscope, waveform, and zebra, among many others.
The R7SIII is powered using the integrated dual L-series battery plate, via USB-C, or via a separately available DC barrel adapter. The monitor also features an 8 VDC barrel output for powering your camera using the camera batteries using a separately available dummy battery or cable. Mount the R7SIII on your rig using the 1/4"-20 bottom or side thread and a support arm or the included tilting monitor mount.
Ultrahigh Brightness
The R7SIII features a 2800 cd/m² ultrahigh brightness LCD screen for clear visuals in darkness or direct sunlight.
High-Resolution Display
The upgraded display supports up to 4K60 input and loop output for accurately viewing HDR imagery with high frame rates.
Professional Interfaces
The monitor features HDMI and 3G-SDI inputs and outputs, 3.5mm headphone output, USB-C power, and both USB-A firmware and LUT import.
Dynamic Monitoring
The latest HDR PQ and HLG curves are supported for displaying rich colors and smooth transitions, and it allows you to switch between SDR and HDR views with a single click. It also features a film-grade color gamut with 100% DCI-P3 coverage, supporting true-to-life color with 10-bit color depth.
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 7.0" / 17.8 cm |
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | Yes |
| Maximum Brightness | 2800 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| HDR Support |
Not Specified by Manufacturer
|
| Pixels Per Inch (ppi) | 314 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Image Controls |
Customizable Aspect Ratios, False Color, Focus Peaking, Histogram, Image Flip, Image Rotate, Pixel Zoom, Pixel-to-Pixel Zoom, Screen Markers, Vectorscope, Waveform, Zebra
|
| Inputs / Outputs | |
| Video I/O | 1x HDMI 2.0 Input |
| 1x HDMI 2.0 Output | |
| 1x BNC (3G-SDI) Input | |
|
1x BNC (3G-SDI) Output
|
|
| Embedded Audio | HDMI/SDI |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | No |
| Power I/O |
1x Barrel (30 VDC) Input
|
|
1x Barrel 2.1 mm (8 VDC) Output
|
|
| Other I/O |
1x USB-A (Firmware/LUT Upload) Input
|
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI (10-Bit) |
| DCI 4K: 60/50/30/25/24 | |
|
UHD 4K: 60/50/30/25/24
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
| SDI | |
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
| 720p: 60/59.94/50 | |
| Power | |
| Input Power | 7 to 30 VDC |
| Battery Type | 2x L-Series |
| Mounting | |
| Mounting |
2x 1/4"-20 Female (Bottom)
|
| General | |
| Material of Construction | Plastic |
| Dimensions |
7.5 x 4.6 x 2.1" / 190.2 x 117.7 x 52.3 mm
|
| Weight | 17.6 oz / 500 g |
