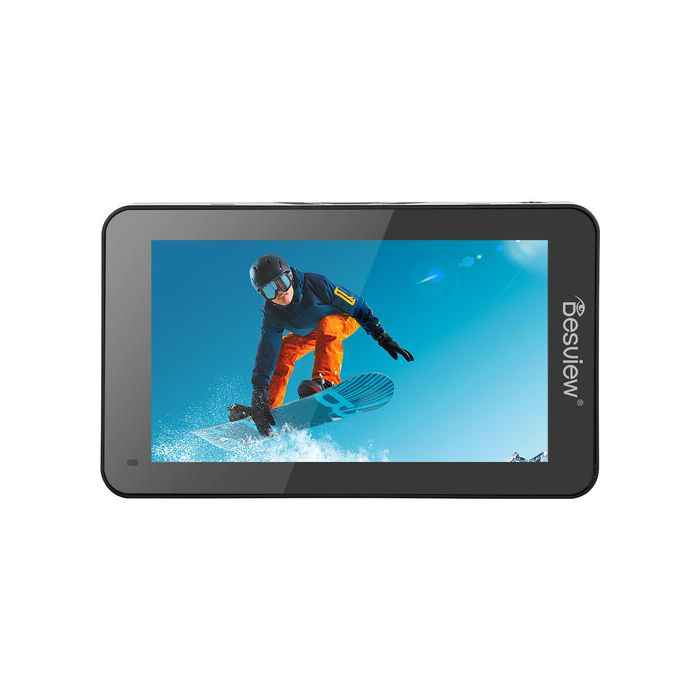

Desview R6 II 5.5inch On-Camera Monitor
by DesviewFull HD 1080p Touchscreen Display
DCI/UHD 4K60 HDMI 2.0 Input & Output
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Desview R6II 5.5" Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O
- Micro-HDMI Cable
- Mini HDMI Cable
- Monitor Mount
- USB Flash Drive
- Microfiber Cleaning Cloth
The R6II 5.5" Ultra-High Bright 1080p Touchscreen Monitor with 4K60 HDMI I/O is a compact 5.5" on-camera touchscreen monitor with a lightweight yet durable polycarbonate and ABS plastic shell. It features an ultrabright 1920 x 1080 display with 2800 cd/m² brightness and a 1000:1 contrast ratio suitable for use in exteriors without a sun hood. The monitor supports up to DCI 4K60 through its HDMI input, scaling the signal for display, and the loop-through HDMI 2.0 output allows you to send the original unmodified camera signal downstream to other monitors or connect to a wireless transmitter for easier transmission.
The R6II features built-in 3D LUTs and also allows you to import custom ones via a USB port, and the monitor supports SDR and HDR viewing, including HLG and PQ. Built-in signal and camera tools include histogram, false color, peaking, zebra, and more. Display functions are easily accessed by the touchscreen and include image freeze, L/R flip, aspect ratio adjustment, and anamorphic de-squeeze selection.
The monitor features a headphone jack, and a built-in adjustable fan draws air in from the sides and back of the monitor, expelling out of the top. Two 1/4"-20 mounting holes are provided, on the bottom and right side, allowing for horizontal and vertical mount. A tilting monitor mount is included for attaching the monitor to your camera's hot shoe or a cage with a shoe mount. The monitor has a combination L-series/LP-E6 battery plate and a 7-24 VDC power input, as well as an 8 VDC power output port to power your camera using a separately available dummy battery or cable.
Software Monitoring Features
- False color
- False color ARRI
- Zebra
- Luminance waveform
- RGB waveform
- Luminance histogram
- RGB histogram
- Focus peaking
- Safety marker
- Center marker
- Audio meters
- Color temperature adjust
- Zoom
- Pixel-to-pixel
- Display flip
- Grid line overlay
- Anamorphic mode: 1.33x, 1.5x, 1.66x, 1.79, 2.0
| Display | |
| Panel Type | IPS-Type LCD |
| Display Size | 5.5" / 14.0 cm |
| Screen Area |
5.12 x 2.6" / 129.96 x 67 mm
|
| Native Resolution | 1920 x 1080 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | Yes |
| Maximum Brightness | 2800 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| Color Support |
16.7 Million Colors (8-Bit)
|
| HDR Support |
Not Specified by Manufacturer
|
| Pixels Per Inch (ppi) | 401 ppi |
| Real-Time LUT Monitoring | SDR, HDR |
| Inputs / Outputs | |
| Video I/O | 1x HDMI 2.0 Input |
| 1x HDMI 2.0 Output | |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | No |
| Power I/O |
1x Barrel 2.1 mm (24 VDC) Input
|
|
1x Barrel 2.1 mm (8 VDC) Output
|
|
| Other I/O |
1x USB-A (Firmware/LUT Upload) Input
|
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
|
DCI 4K: 60/59.94/50/29.97/25/24
|
|
|
UHD 4K: 60/59.94/30/25/24
|
|
|
1080p: 60/59.94/50/30/29.97/25/24/23.98
|
|
|
1080PsF: 30/29.97/25/24/23.98
|
|
| 1080i: 60/59.94/50 | |
| 720p: 60/59.94/50 | |
| 576p: 50 | |
| 576i: 50 | |
| 480p: 60/59.94 | |
| 480i: 60/59.94 | |
| Power | |
| Input Power | 7 to 24 VDC |
| Battery Type | 1x LP-E6, L-Series |
| Power Consumption | 12 W (Typical) |
| 24 W (Maximum) | |
| Mounting | |
| Mounting |
1x 1/4"-20 Female (Bottom)
|
|
1x 1/4"-20 Female (Right)
|
|
| Environmental | |
| Certifications | No |
| Operating Temperature |
14 to 122°F / -10 to 50°C
|
| General | |
| Material of Construction | Plastic, Polycarbonate |
| Dimensions |
6 x 3.5 x 1" / 152 x 89 x 25 mm
|
| Weight | 0.5 lb / 240 g |
| Packaging Info | |
| Package Weight | 1.2 lb |
| Box Dimensions (LxWxH) | 7.6 x 4.8 x 3.5" |
