Desview D24-HDR 4K Professional Director Monitor
by Desview23.8" 3840 x 2160 HDR Display
12G/3G-SDI & HDMI In/Out, USB Input
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Desview 23.8" Director Monitor with Protector Case
- Power Cable
- Case

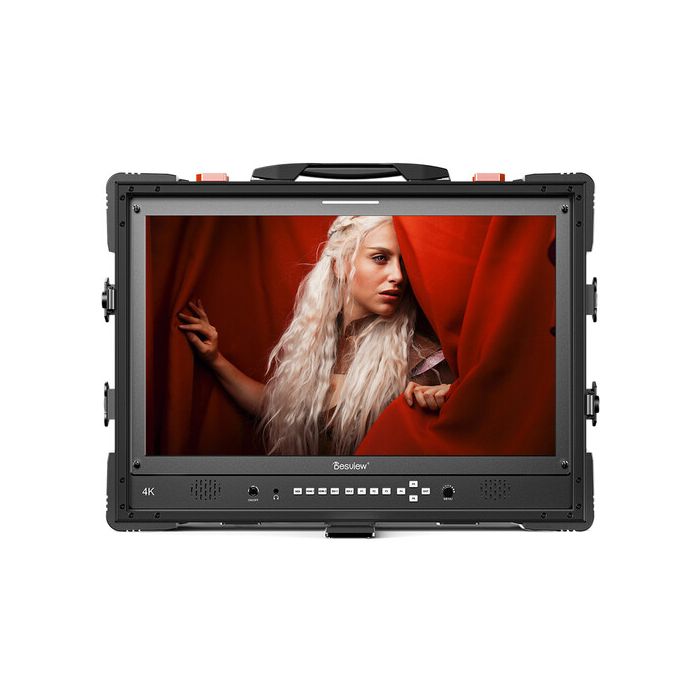

The 23.8" Monitor with Protector Case from Desview features a durable safety case and a bright 4K HDR display for broadcast, field production, or cinema monitoring. The 23.8" display features a 3840 x 2160 resolution, 400 cd/m² brightness, and 1000:1 contrast ratio for crystal clear imagery. The monitor features 12G-SDI, 3G-SDI, HDMI, and USB inputs that support up to 4K60 video, and it can output via 3G-SDI and HDMI to additional destinations such as other monitors and switches.
The multiview function allows you to view dual, triple, or quad images on the display. Other features include a waveform tool, a tally light, picture-in-picture mode, a 178° viewing angle, a headphone jack, front speakers, and both horizontal and vertical display modes suitable for social media content. You can power the monitor using the 4-pin XLR power adapter, a standard AC plug, or via the V-mount battery plate on the back. The protective safety case protects the monitor in the field and during transport.
| Display | |
| Panel Type | LCD |
| Display Size | 23.8" / 60.5 cm |
| Native Resolution | 3840 x 2160 |
| Aspect Ratio | 16:09 |
| Viewing Angle | Horizontal: 178° |
| Vertical: 178° | |
| Touchscreen | No |
| Maximum Brightness | 400 nits / cd/m2 |
| Contrast Ratio | 1000:01:00 |
| HDR Support | Yes |
| Pixels Per Inch (ppi) | 185 ppi |
| Color Gamut | 99.5% DCI-P3 |
| Image Controls |
Check Field, Color Temperature Selection, False Color, Focus Peaking, Histogram, Zebra
|
| Inputs / Outputs | |
| Video I/O | 2x BNC (3G-SDI) Input |
| 2x HDMI 2.0 Input | |
|
1x BNC (12G-SDI) Input
|
|
|
1x USB-A (Unspecified Signal) Input
|
|
|
2x BNC (3G-SDI) Output
|
|
| 1x HDMI 2.0 Output | |
| Embedded Audio | SDI: 2-Channel |
| HDMI: 2-Channel | |
| Audio I/O |
1x 1/8" / 3.5 mm Headphone Output
|
| Built-In Speaker | Stereo |
| Power I/O |
1x Barrel (24 VDC) Input
|
| Other I/O | 1x RJ45 (Tally) Input |
| Media/Memory Card Slot | No |
| Wi-Fi | No |
| Bluetooth | No |
| Mobile App Compatible | No |
| Format Support | |
| Video Format | HDMI |
| DCI 4K: 60 | |
| SDI | |
| DCI 4K: 60 | |
| Power | |
| Battery Type | 1x V-Mount |
| Environmental | |
| Operating Temperature | 12 to 92°F / -20 to 60°C |
| Storage Temperature |
-22 to 158°F / -30 to 70°C
|
| General | |
| Weight | 32.80 lb / 14.88 kg |
