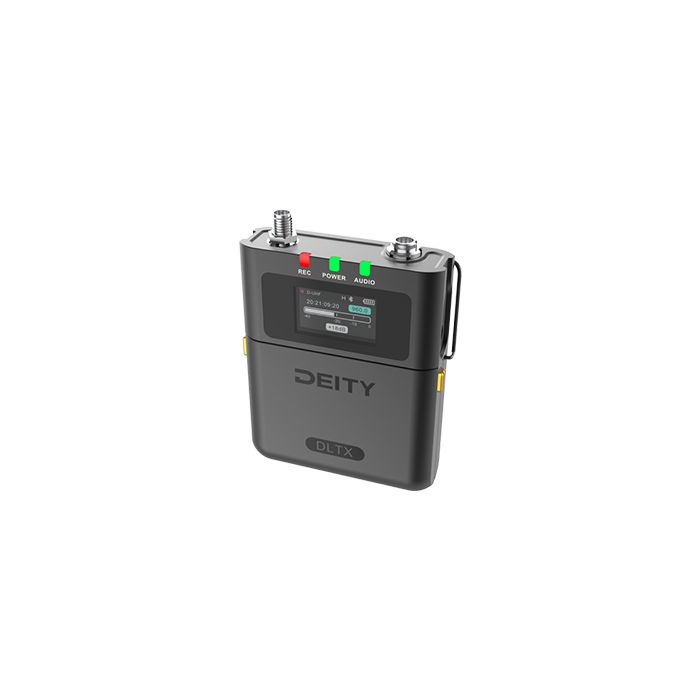

Deity THEOS DLTX Phantom Power Body pack Transmitter

As a filmmaker, sound is one of the most important aspects of your work. Nothing is more frustrating than discovering that your audio is unusable due to interference, dropped signals, or other issues. This is where the Deity Theos Digital Wireless Microphone System comes in. This state-of-the-art system is designed to make your audio recording process seamless and stress-free.

• Ultra Wideband Digital UHF spectrum; 550-960 MHz*
• Up to 100mW RF Output
• Provides 48V Phantom Power
• 3-Pin LEMO Audio Input
• Built-in 32-bit float recorder in the transmitter
• Recordings are saved to a Micro SD card; up to 512Gb
• Wirelessly sync timecode from Deity TC-1 or JAM via 3-Pin Input
• Can be remotely controlled via the Sidus Audio™ app
• Up to 14Hrs Long Battery Life: 2x AA Batteries**
• Supports USB-C for external power
• Full-color LCD screen
• CNC-milled aluminum chassis
• SMA antenna ports
  *Actual frequency band size will be limited to local laws
  ** Battery life tested at 10mW, Bluetooth Off, Screen Sleep 10 Sec, LED On, Deity Lithium 3000mAh batteries
  *** Not for sale in North America

Featuring Global OneBand™ Technology

One of the standout features of the Theos DLTX is its use of ultra wideband UHF spectrum, with frequencies that span between 550-960 MHz.*

Theos DLTX also features swappable frequency ranges based on your phone’s GPS / Firmware Update. Now you can travel the world with one wireless microphone kit.

*Actual spectrum is limited by local laws. See your government's rules on RF spectrum for wireless microphones -

Analog Limiter

Because its not possible to transmit 32-Bit float, we've added an analog limiter that will bring down your audio's peaks, allowing you to transmit signal without clipping. The analog limiter runs along a separate signal path in the transmitter and does not affect your 32-bit float recordings, preserving your signal in the rawest form for those onboard backups.

Intermod-Free Transmission

Thanks to the THEOS system using digital RF modulation, the system is intermod-free. Unlike analog wireless microphones that create harmonics, the RF signal of a THEOS transmitter only creates a single spike.

When it comes to coordinating frequencies, simply space out your transmitter's frequencies 700kHz apart. THEOS makes using multiple channels of wireless easy.

Wireless Timecode Sync

The DLTX’ can be natively synced wirelessly from the Deity TC-1 timecode generator. Timecode ensures your on-board WAV files will sync with your master files in post. This feature is especially useful for filmmakers who need to work with multiple cameras or devices. It ensures that your audio and video files are perfectly synced, thus making the editing process much smoother, faster, and cheaper. Alternatively, the DLTX can be synced via the 3-pin audio jack if you are using 3rd party timecode generators.

Built-in Recorder

The DLTX is also equipped with a built-in recorder. The onboard recorder features both 24-bit and 32-bit float formats so you never have to worry about gain staging on your backup WAV files. Recordings are saved to a Micro SD card, providing ample space for your audio recordings.

The built-in recorder features an impressive EIN self-noise of -130dBu (A-weighting, gain at +42dB, 150ohm source impedance). This puts it on par with some of the most expensive audio recorders in the TV and film industry.

Adaptable Accessories

The DLTX is able to be more than just a bodypack transmiter. It can also be that go-to transmitter for your plant mics, your boom pole setups, or even just being a backup timecode based recorder to your main unit.

Accessories Sold Seperately:

• L3-Link
• DLTX Boom Pole Holder
• WLP L3
