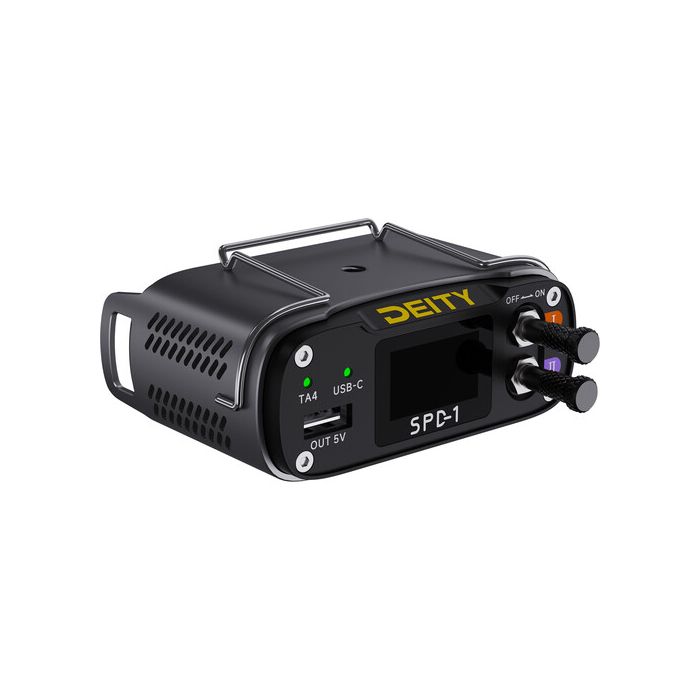

Deity SPD-1 (Smart Power Distributor)

The Deity Microphones SPD-1 is a compact and lightweight power distribution box for managing power in large sound bags or on small location sound carts. With its triple DC inputs, hot-swappable functionality, support for both smart and non-smart batteries, seven power-output ports, and the ability to display battery telemetry data, the SPD-1 is designed to make your life on set as easy and stress-free as possible.

Triple DC Inputs

Two TA4F Power Inputs: SPD-1 is compatible with any battery ranging from 12 to 18V. Users can hot swap between the two TA4 power inputs.

USB-C Power Input: the USB-C input port is capable of providing regulated 12V into your system from wall power—useful when you are stationed in one place for a while and don’t want to use batteries.

Verify that your USB-C power supply supports the 12V USB-C power standard and supplies enough watts. A USB-C laptop-style power supply is suggested.

Seven Power-Output Ports, Over Two Circuit Groups

The six, unregulated 4-pin Hirose power-output ports enable you to power multiple devices simultaneously.

The ports are divided across two power circuit groups (Group I and II), each with its own locking toggle switch switches, making it easy to turn your devices on and off without needing to power down your primary devices.

The SPD-1 features an easy-access, front-facing 5V/2A USB-A port, making it simple to charge your devices and keep them powered up.

Two Locking Power Switches

Locking toggle switches make turning your devices on and off easy and safe, and they help prevent accidental power-downs.

Group I Power Switch: Enables the Group I power outputs.

Group II Power Switch: Enables the Group II power outputs.

Pull and toggle right/left to enable or disable the power outputs Group I and II.

Smart Battery Telemetry Display to Monitor Power on Set

The SPD-1 displays battery telemetry data to keep track of your power usage. Monitoring power on set is crucial to keeping production running smoothly. With the SPD-1, you can easily keep track of your power usage, ensuring you never run out of power at the wrong time.

The 1.1” color screen provides you with all the information you need, like total power consumption, battery temperatures, voltage, battery life, and battery cycle count.

Included is an SPD-T4BATT TA4F to HiQ Battery CupF, specifically designed to hold a 2054 smart battery, known for its reliability and long battery life (battery available separately).

Versatile Mounting Options

The SPD-1 features dual 1/4”-20 threaded mounts, allowing you to mount the device in any position securely.

The included reversible mounting clip makes it easy to change the device’s orientation as needed.

Wide Compatibility

Sound Devices 633, 664, 688, MX-HIROSE DC input sled
Sound Devices A10-RX A-TA3 adapter, A10-RX A-XLR
Zaxcom Nova, Nova 2, Deva 24
Zoom F8, F8n, F8n Po, F4
Lectrosonics SREXT SR mounting kit, DSR4EXT, DCR822
Wisycom MCR54 end plate
MiPro MR-90SC
Sony UWP-D

Multiple Batteries Supported

The SPD-1 supports both smart and non-smart batteries with its triple DC inputs and hot-swappable functionality.
When using a non-smart 14.4V or USB-C battery, the SPD-1 will display incoming voltage.
The screen on the SPD-1 adapts its displayed data to the type of power you supply.
Supported batteries include: Audio Root, Deity S-95, Inspire Energy, Remote Audio HiQ, RRC, Sound Device Smartbattery

SPD-1 Power Distribution at a Glance

For large sound bags and small sound carts
Triple DC inputs, hot-swappable
Two TA4F inputs; one USB-C input
Six 4-pin push unregulated outputs
Easy-access USB-A charging port
Suggested operating range is 12 to 18V
Supports smart and non-smart batteries
Displays battery telemetry data
Measures total power consumption
Two power circuit groups with locking toggle switches
Lightweight aluminum housing
1.1" color screen
Dual 1/4"-20 threaded mounts
Reversible mounting clip
