Decimator MC-DMON-9S
by Decimator Design
Availability:
7-10 days delivery
SKU
DD-MC-9S

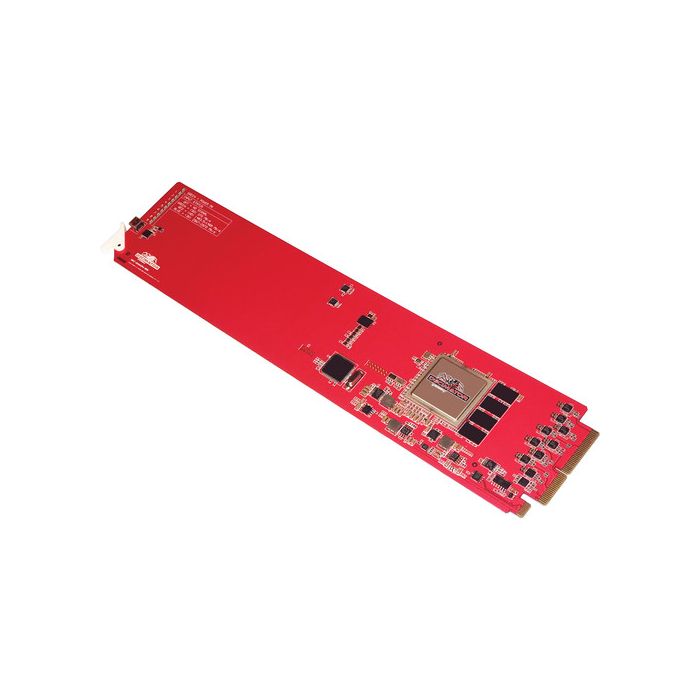

Decimator's MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor.
€1,377.00
€1,101.60
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- DECIMATOR MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer
Decimator's MC-DMON-9S 9-Channel openGear 3G/HD/SD Multiviewer lets you view up to nine sources on a single monitor in an openGear form factor. Useful in studio or A/V situations which employ openGear cards, the MC-DMON-9S can accept 9 SDI inputs of the SD, HD, or 3G variety. Each input auto-detects what kind of signal is being received in order to properly scale it to the monitor. Multiple viewing modes are built-in and recallable, and you can use Decimator's USB control panel to save and load custom presets.
-
- Supports both 3G-SDI level A and B on the input and output and allows conversion between levels A and B
- Includes standard layouts and supports custom layouts
- Customizable display overlays (can be enabled individually on each channel): 16 character UMD overlay, 16 channel audio metering overlay, format status overlay, safe action and title safe overlays, center cross, audio ID.
- Save and load custom layouts via USB
- Input switching with full-screen scaling
- Selectable output format in both full-screen and multi-viewer mode
- Low latency buffering for each input allowing non-synchronous inputs
- Auto-detection on all inputs
- Pass-Through mode allowing any of the 9 inputs to be selected and routed to the SDI output
- USB port for control and firmware updates
- openGear DashBoard for control
| Inputs | 9 x SDI |
| Outputs | 1 x SDI |
| SDI Standards | Inputs: Simultaneous support for 3G-SDI, HD-SDI, SD-SDI per input Output: Configurable as 3G-SDI, HD-SDI, SD-SDI |
| Other Ports | 1 x USB for control and firmware updates |
