CHASING INNOVATION CHASING M2 PRO MAX Standard Set

by Chasing Innovation
Availability: 7-10 days delivery
SKU
C-M2PMSS

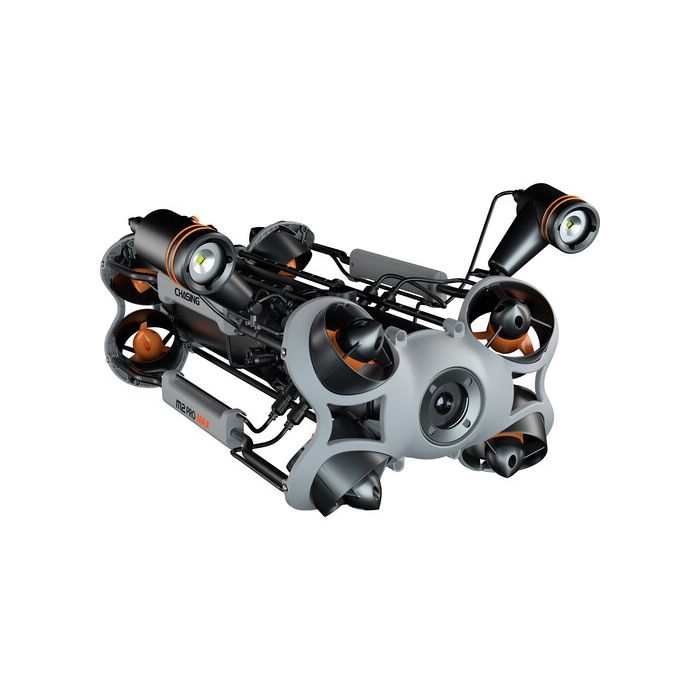

Whether you're performing search and rescue operations, ship inspections, or capturing underwater data, the industrial-grade CHASING M2 Pro Max Underwater ROV has you covered with its 656.2' depth range and tether cable.

€9,373.75 €7,499.00
New

Package includes

  • CHASING M2 Pro Max Underwater ROV Set (656' Tether)
  • Remote Controller
  • E-Reel with Tether Cable (656.2')
  • 300Wh Battery
  • Charging Cable
  • 3-in-1 Charger
  • 3 x Data Cable
  • O-Ring Set
  • Right Floodlight Spare Part
  • Left Floodlight Spare Part
  • 8 x Thruster Shield
  • 10 x M3x8 Combination Screw
  • 5 x M3x8 Machine Screw
  • 6 x M5 Flat Washer
  • 6 x M5 Spring Washer
  • 3 x Sealing Cover
  • Allen Key
  • Flat Wrench
  • Backpack for Accessories
  • Hard Case

Whether you're performing search and rescue operations, ship inspections, or capturing underwater data, the industrial-grade CHASING M2 Pro Max Underwater ROV has you covered with its 656.2' depth range and tether cable. The M2 Pro offers deep underwater capabilities, 4000-lumen foldable floodlights, an anti-stuck motor, and five quick assembly accessory mounting points. Capture up to UHD 4K video and 12MP images, as well as slow motion and time-lapse with the ROV's 1/2.3" CMOS camera.

UHD 4K Camera with Electronic Image Stabilization
A 1/2.3" CMOS image sensor allows the UHD 4K camera to clearly capture underwater details. The camera can also capture 12MP images, 4x/8x slow motion, and time-lapse footage. Electronic image stabilization works to keep your images crisp, and an f/2.8 aperture helps in low-light situations beneath the surface. A wide 150° field of view ensures you capture the subject matter you seek.

656.2' Diving Depth
The M2 Pro Max can dive up to 656.2' below the surface and has a 1312' maximum movement radius, allowing you to explore more of an underwater area before needing to redeploy the ROV. A second-generation anti-stuck motor with a 30% power increase ensures reliable performance, even when navigating vegetation.

Dual Foldable Floodlights
The floodlights on the new ROV have are foldable which allows them to collapse into the camera's body and mitigate visual interference caused by plankton and other underwater wildlife. Both lights have an output of 4000 lumens and a 150° beam angle. Adjust their brightness using the 0 to 100% stepless dimming.

Real-Time Sharing
Share your footage to multiple devices thanks to the M2 Pro Max's internal Wi-Fi and HDMI real-time projection. Live broadcast to social media platforms and up to three mobile devices, making the remote control operation more intuitive. Both footage and data including temperature and depth are communicated by the ROV. A removable 128GB SD card stores your footage for uploading.

Quick Assembly Accessory Ports
Five accessory ports with quick assembly mounting allow you to integrate additional devices into your ROV build. Whether they are additional sonar modules or grabber arms, the ports facilitate quick assembly and disassembly for intuitive adjustments in the field.

Long Battery Life
The M2 Pro Max operates using a 300Wh battery for up to 4 hours at a time.

General
Load Capacity 7.9 lb / 3.6 kg (Sideways)
  8.8 lb / 4 kg (Upward)
  12.6 lb / 5.7 kg (Forward)
Sensor 1/2.3" CMOS
Lens f/2.8
Minimum Focus Distance 11.8" / 0.3 m
ISO Range 100 to 6400
Field of View 150°
Resolution Image
  12 MP
  Video
  UHD 4K at 25/30 fps
  1080p at 25/30/50/60/100/120 fps
  Slow Motion
  720p at 30/240 fps (4x)
  1080p at 30/120 fps (8x)
  Time-Lapse
  UHD 4K/1080p
Image Format JPEG/DNG
Video Streaming 60M (Maximum)
Video Format MP4
Memory Card Type 128 GB (SD)
Brightness 2 x 4000 lumens
Color Temperature 5000 to 5500K
CRI 85
Wireless
Wireless Wi-Fi
  *Built-In
Power
Power Source Battery
Battery Type 1x Internal Rechargeable
Physical
Mounting 5x Accessory Ports
Environmental Resistance Water-Resistant to 656.2' / 200 m (Unrated)
Operating Conditions 14 to 113°F / -10 to 45°C
Cable Length 656.2' / 200 m
Dimensions 23.9 x 11.6 x 7.7" / 608 x 294 x 196 mm
Weight 17.6 lb / 8 kg
