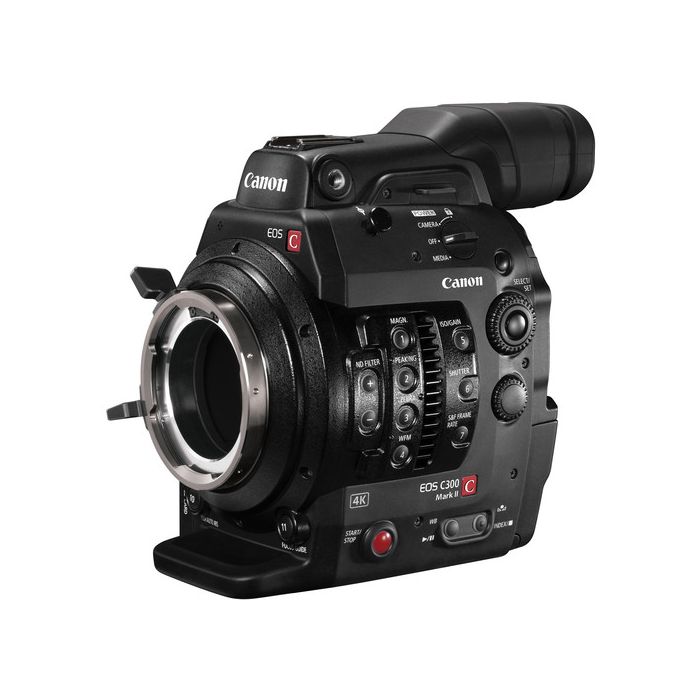

Canon EOS C300 MK II PL Camcorder

Canon Super 35mm CMOS Sensor

Modeled on the Super 35mm 3-perf motion picture film standard, the Canon CMOS sensor has an active image size of 24.4 x 13.5mm. It features 4096 x 2160 resolution to deliver Cine 4K images, as well as supporting Ultra HD (3840 x 2160), and Full HD (1920 x 1080)

Canon Log Gamma

Canon Log Gamma 2/ACES/REC.2020 support

Dual Canon DIGIC DV 5 Image Processor

The camera features Dual DIGIC DV 5 processors to handle the internal data processing.

XF AVC Codec

To create digital files robust enough for major postproduction, the EOS C300 delivers the highest image quality with its XF AVC Codec - an H.264 format wrapped in the widely-supported MXF wrapper

Designed with Filmmakers in Mind

A logical layout of buttons and dials make operation simple. A lock switch turns off all controls except the recording button and function buttons. Small ridges between the buttons help prevent activating functions by mistake. A backlit display panel is great for low-light viewing. A tally lamp is clearly visible from the side or behind the camera.

Compact & Modular Design

The EOS C300 body is compact and easily handheld at just over 3 lb. There is a bright 1.55 Megapixel electronic viewfinder, and the camera comes bundled with a removable combination 4", 1.23 Megapixel monitor and control panel. The camera also has a removable handgrip with a control dial and function buttons for handheld shooting in DSLR style, or remove it and use the supplied thumb rest for completely stripped-down shooting. The EOS C300 has a manually operated built-in neutral density (ND) glass filter offering 1/4, 1/16, and 1/64th steps of filtering. Handheld or using a tripod, on location or in the studio, even on 3-D rigs, the EOS C300 fits shooting situations that are challenging for larger cameras.

Rugged, Durable & Quiet

The EOS C300's dust-proof and splash-proof design includes sealing gaskets around the edges of all access covers, dials fitted with o-rings on the axis of rotation, and button key-tops sealed with rubber. The EOS C300 also features a built-in silent cooling system with a heat-dissipating duct in the center of the body, a graphite sheet that conducts sensor heat towards the heat sink, three ventilation holes, and a cooling fan that pulls hot air out through an exhaust opening. All air is directed through a discrete pathway that keeps dust particles away from sensitive components. Your camera runs cool, quiet, and clean.

Ultra-High-Resolution EVF

The EOS C300 features a 0.46", 1.17 Megapixel color EVF and 100% field of view coverage for comfortable viewing and accurate judgment of composition, focus, and color. The angle of the viewfinder is adjustable for additional user comfort. EVF adjustments include brightness, contrast, color, and backlight (Normal or Bright).

Rich Audio Controls

When mounted to the EOS C300 Mark II camera, the included control unit provides two XLR audio inputs with +48V phantom power. A 3.5mm microphone terminal is also built in to the camera. Audio is recorded uncompressed in 16-bit PCM format at 48 kHz for high fidelity sound. Both XLR inputs, as well as the mic terminal have the option for automatic, as well as full manual gain control (-Infinity to +18dB). Additionally, a 3.5mm headphone terminal with 16 volume settings offers accurate audio monitoring.

CFast Memory Card Recording

The camera records to CFast 1 cards through two slots.

High-Speed, Slow-Motion, Time-Lapse & Stop-Motion

Beyond the advantages of file-based recording, the camera offers a number of creative possibilities in post-production including Slow & Fast motion.

Connectivity

To connect to external monitors, switchers, VTRs, and NLE systems with SDI inputs, the EOS C300 features industry-standard HD-SDI output, genlock, and timecode terminals, plus audio terminals with linear PCM recording. Timecode and genlock enable synchronized multiple camera capture, perfect for multiple-camera shots, 3D acquisition, and more. The HD-SDI sync terminal can be switched to output to HD Sync, HD Y, Black Burst, and Composite.

Full Manual Control & Focusing Aids

The camera has a Waveform Monitor (WFM) function that shows the overall brightness of a scene, with RGB Parade Display to view red, green, and blue brightness or Spot Display to isolate the luminance distribution of a chosen area. The Vectorscope (VS) display shows real-time hue and saturation levels. For sharp focus, the EOS C300 camera has two peaking modes and a magnified focus assist function. An Edge Monitor Focus Assist provides both a waveform representing the overall degree of focus and a red waveform that represents focus in three specific areas displayed on the camera's 4" LCD monitor. To maintain proper highlight exposure, it offers a zebra bar feature as well.
