CalDigit TS4 Thunderbolt Station 4
by CaldigitThunderbolt 4 dock station
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- 1 x CalDigit TS4
- 1 x Thunderbolt 4 Cable (0.8m)
- 2 x Rubber Feet Strips
- 1 x Power Cord
- 1 x Power Supply (230W)
THUNDERBOLT STATION 4 | TS4
The iconic Thunderbolt Station is back, now in its 4th generation, featuring the classic design first introduced by CalDigit.
Not only is the TS4 the most powerful dock ever created, the dock with the most ports, the dock with the highest charging capabilities, the first dock with 2.5GbE, it is the dock that will drive us into the Thunderbolt 4 generation.
MORE IS MORE

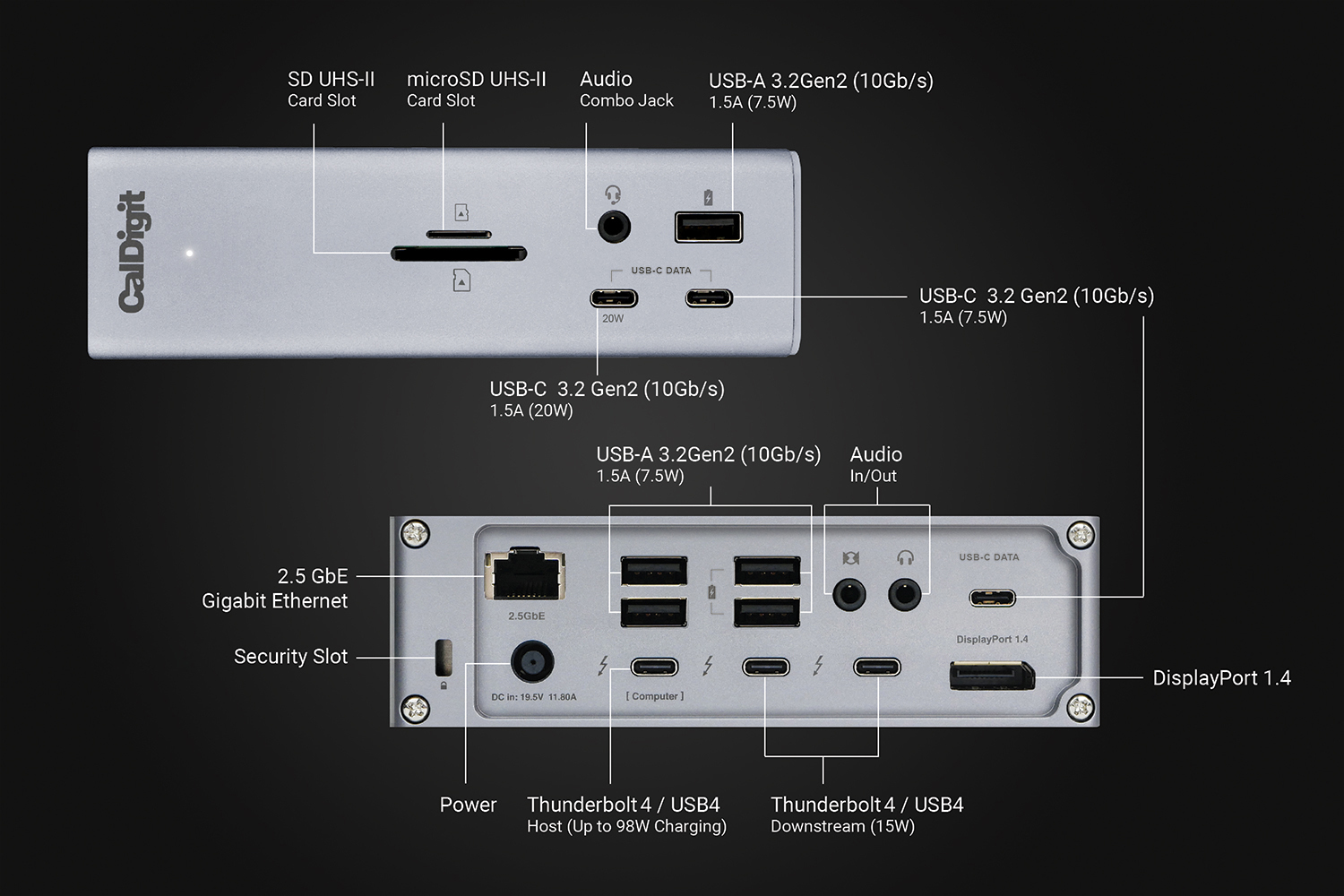

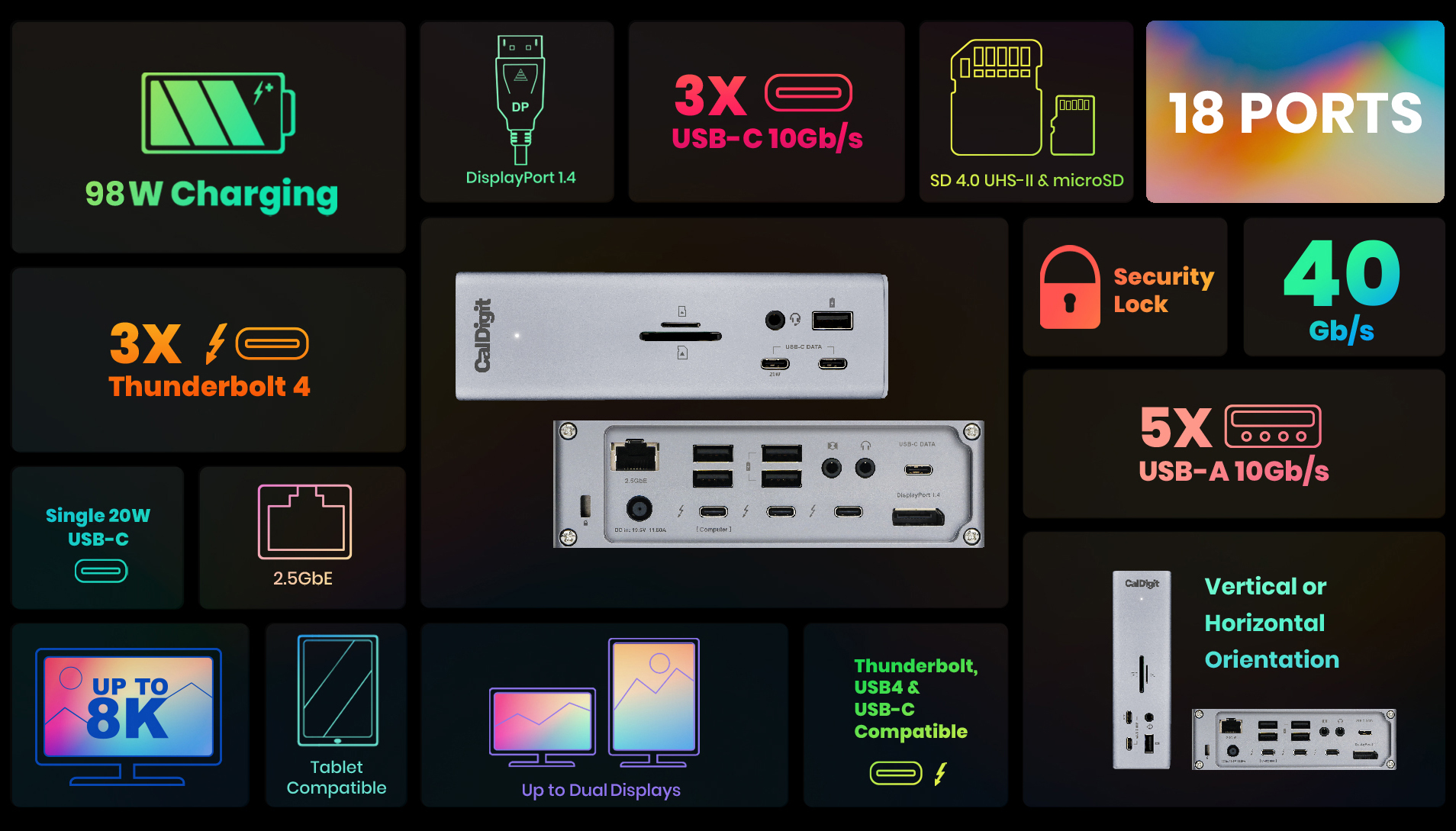

The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever.
The purpose of a device like this is to never run out of ports, and for the majority of us, that should certainly not be the case with the TS4.
Thunderbolt 4 Dock Comparison
| CalDigit TS4 | Kensington SD5700T | Sonnet Echo 11 | OWC Thunderbolt Dock | Razer Thunderbolt 4 Dock Chroma | |
|---|---|---|---|---|---|
|
Ports |
18 |
11 |
11 |
11 |
10 |
UNIVERSALLY COMPATIBLE
Having the ability to use the TS4 on any Type-C computer or tablet is incredibly convenient.
Compatible with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C computers, the TS4 adapts to the host computer it connects to, providing the features available to your computer or tablet.
- Thunderbolt 4 PC
- Intel Thunderbolt 3 Mac
- M1 Pro & M1 Max Thunderbolt 4 Mac
- M1 Thunderbolt 3 Mac
- Thunderbolt 3 PC
- USB4 PC
- USB-C PC
- USB-C Windows Tablet
- Thunderbolt or USB-C iPad
- Thunderbolt or USB-C Chromebook
*Requires macOS 11.4 (Big Sur) or above
*Functionality is dependent on host computer or tablet’s capabilities.
FASTEST LAPTOP CHARGING
When it comes to laptop charging the TS4 provides up to 98W of power delivery.
That is the highest charging provided by any Thunderbolt 4 dock, and is ideal for larger screen laptops that require more power.
For laptops or tablets that require less than 98W, the TS4 will only supply the wattage required by your device.
| Dock | Laptop Charging |
|---|---|
|
CalDigit TS4 |
98W |
|
CalDigit TS3 Plus |
87W |

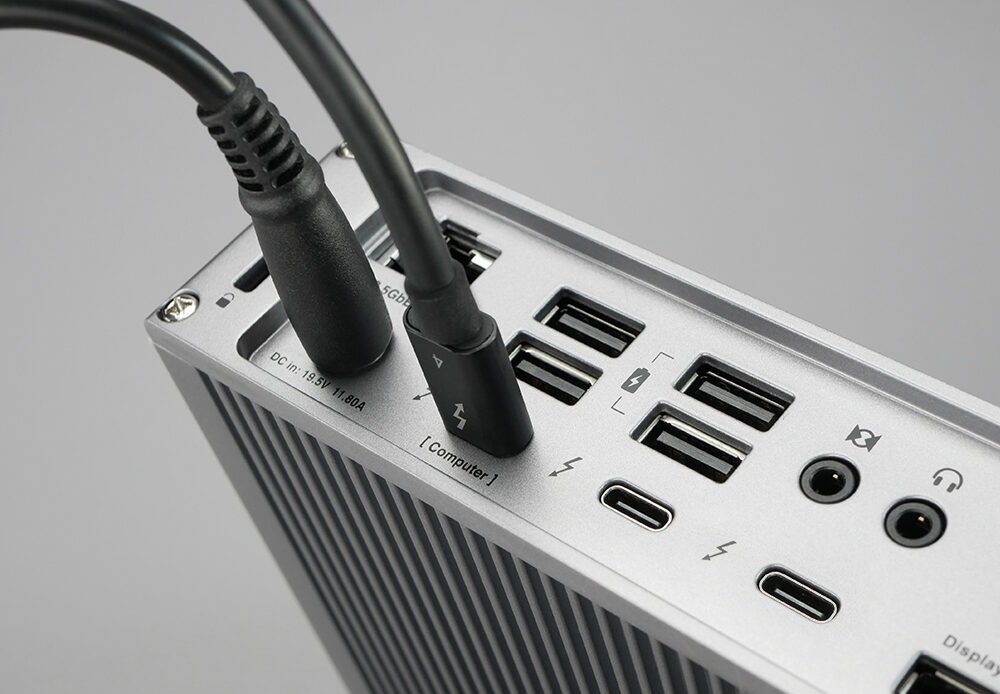

THUNDERBOLT 4/USB4 PORTS
The TS4 features three Thunderbolt 4/USB4 ports with 40Gb/s performance.
One of the ports is used as the host connection to the laptop, and the two remaining ports can be used to connect Thunderbolt 4, Thunderbolt 3, USB4, or USB-C devices to the TS4. This includes monitors, SSDs, hubs, and much more.

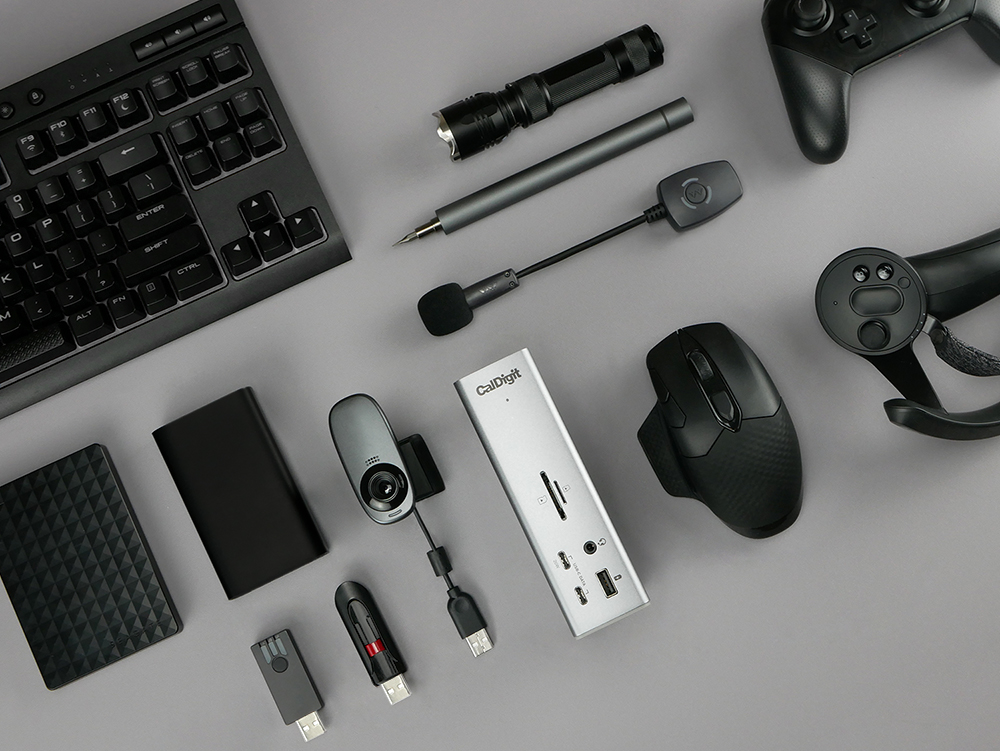

8 USB PORTS
With 8 USB ports on the TS4, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories*.
All of the USB ports on the TS4 offer 10Gb/s performance.
*USB-C & USB-A ports are for data only. Users who wish to connect monitors must connect them to the spare Thunderbolt 4/USB4 ports.

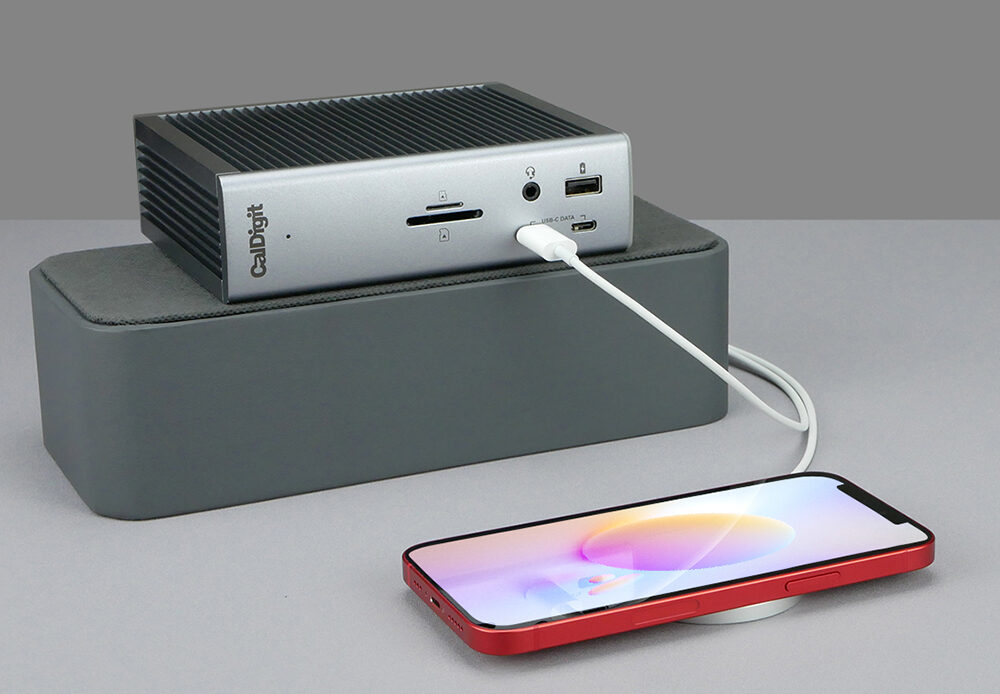

20W USB-C PORT
One of the front-facing USB-C ports can supply up to 20W of power for your attached USB-C device.
This is ideal for accessories that require more power, such as Apple’s MagSafe wireless charger.

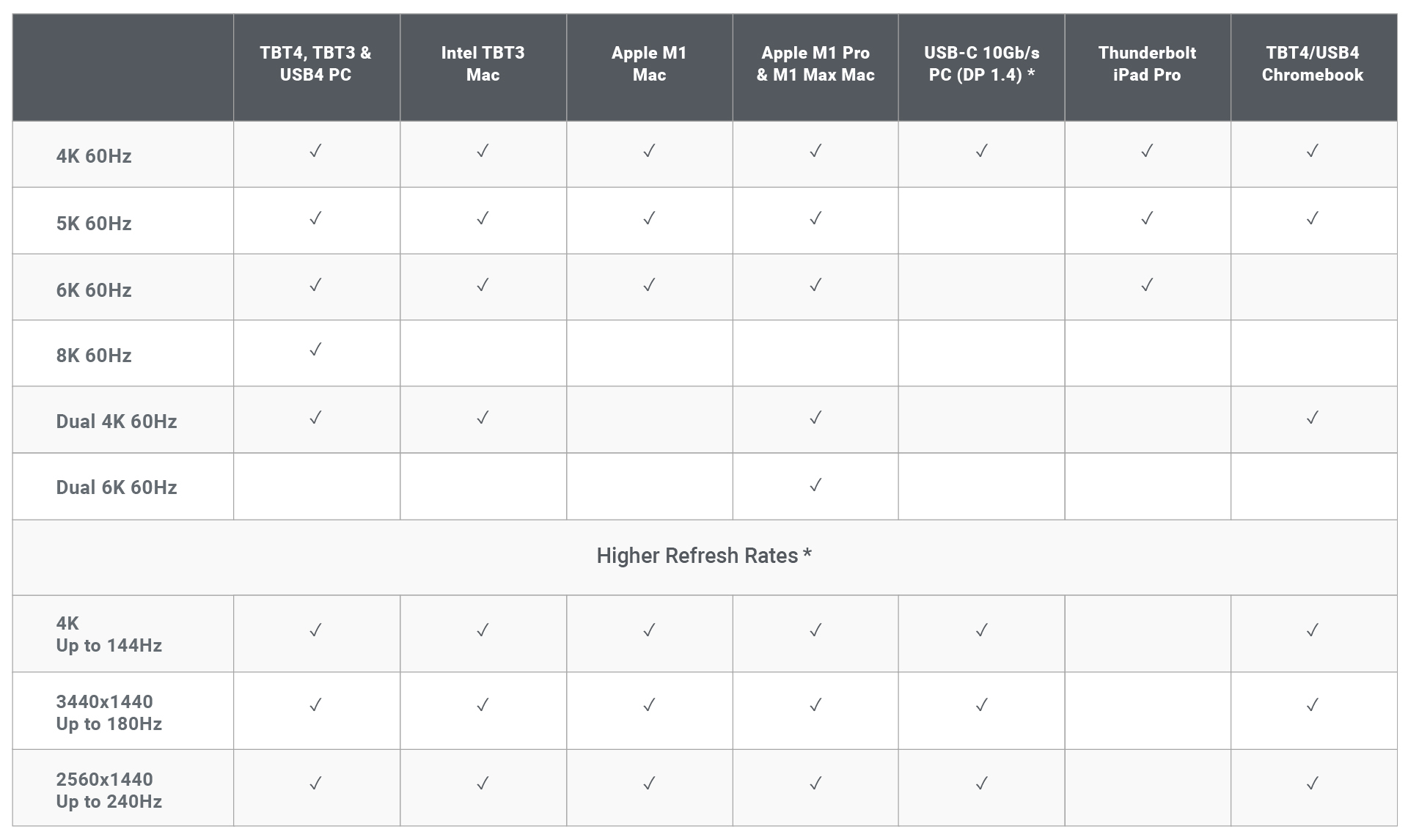

SINGLE 8K OR DUAL 6K 60HZ DISPLAYS
When it comes to connecting a monitor the TS4 offers outstanding visual clarity.
Single Monitor
If you’re looking to add a single monitor to the TS4 you can either connect it to the DisplayPort connector or to one of the spare Thunderbolt 4 ports. If you wish to connect a HDMI monitor you can either connect an Active DisplayPort to HDMI Adapter, or use a USB-C to HDMI Adapter.

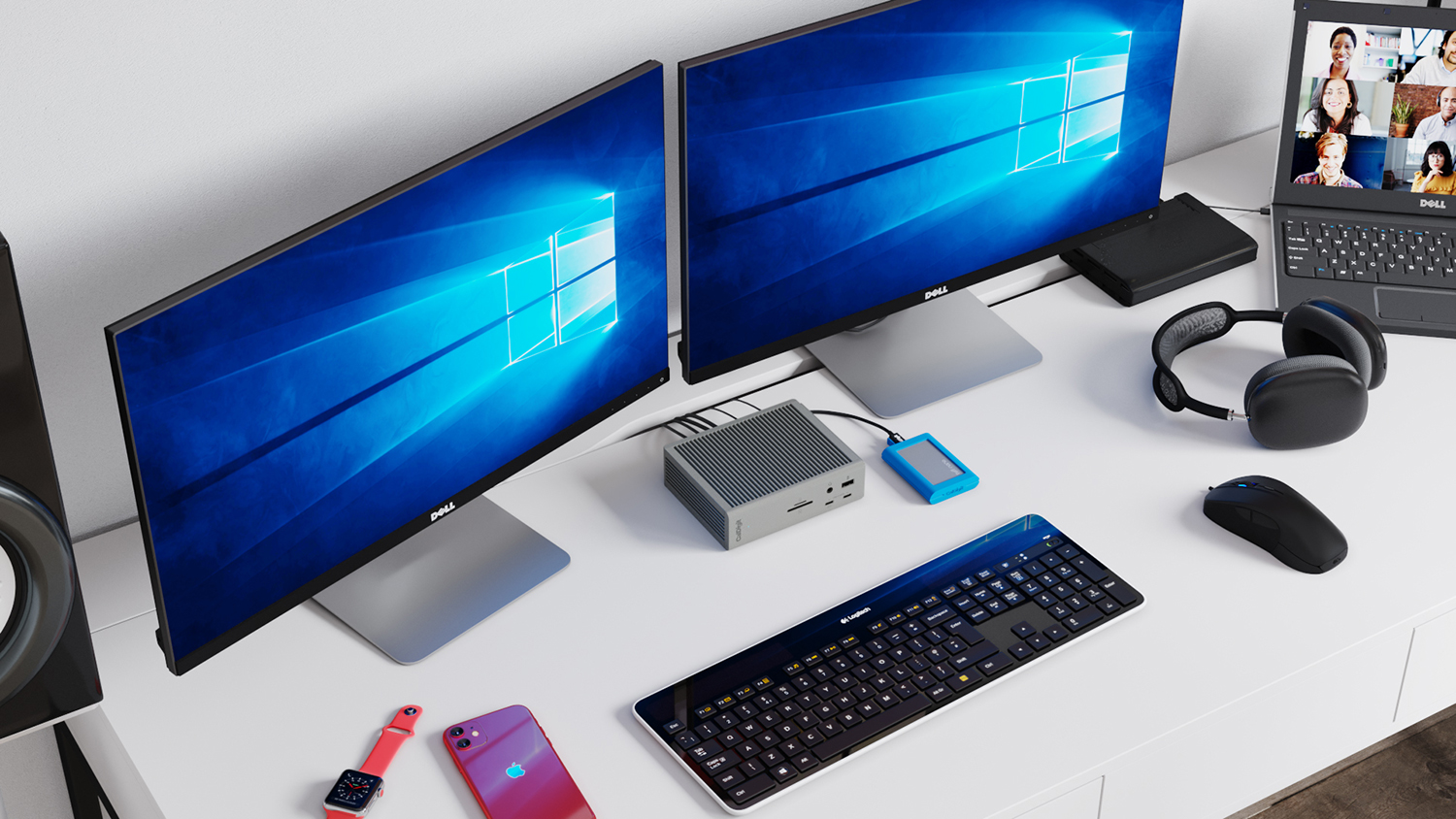

Dual Monitors
macOS users on M1 Pro, M1 Max, or Intel based Macs can connect up to dual displays.
M1 based Macs do not support dual monitors through their Thunderbolt ports.
Windows PC Thunderbolt 3 and Thunderbolt 4 users can connect up to dual displays.

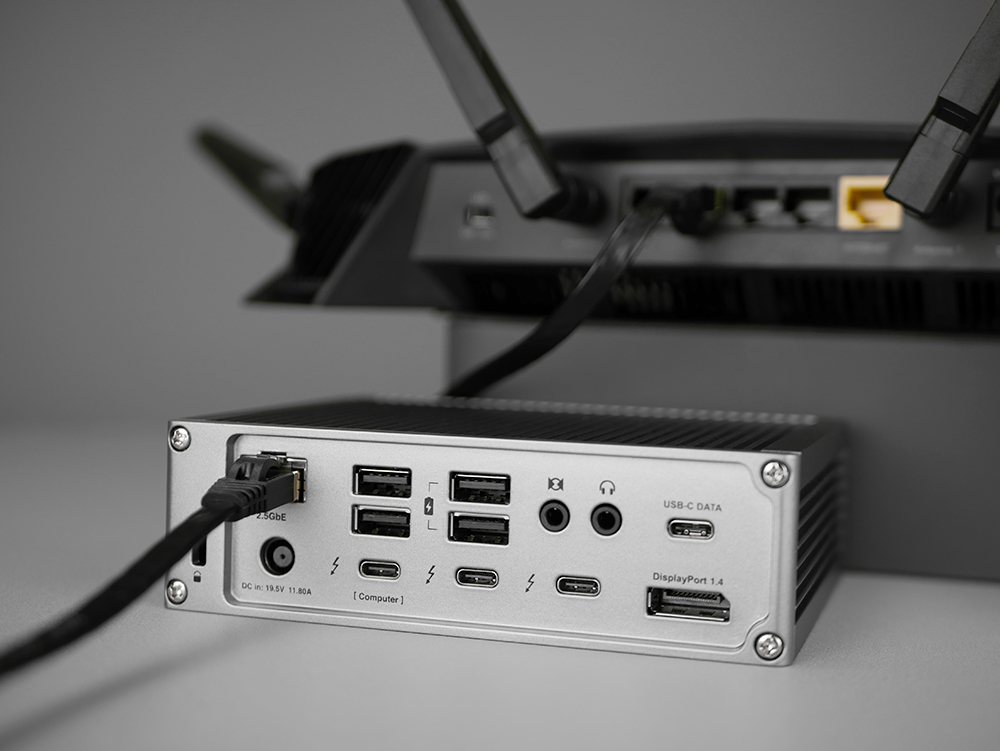

2.5 GIGABIT ETHERNET
The TS4 is a dock that provides a lot of unique features, and that is certainly the case with the inclusion of 2.5GbE.
2.5GbE is 2.5x faster than traditional Gigabit Ethernet, and is becoming the new standard for routers, switches, and NAS devices.*
USB to 2.5GbE Adapters cost anywhere between $20 – $55.
The TS4’s 2.5GbE functionality represents great value for money.
Of course you can use the 2.5GbE port on the TS4 with traditional 1GbE Ethernet devices.
*2.5GbE performance requires a Thunderbolt host & 2.5GbE compatible devices or above.
TABLETS
Connect the TS4 to your Thunderbolt/USB-C iPad, or Windows tablet, and take your workflow to the next level.
*Full tablet functionality will be dependent on your tablet’s capabilities.
OFFLINE CHARGING
The front USB-A port, all of the USB-C ports, and two of the rear USB-A ports on the TS4 provide offline charging.
This function allows those specific ports the ability to charge your USB devices, such as phones and tablets, even when the TS4 is not connected to a host device.

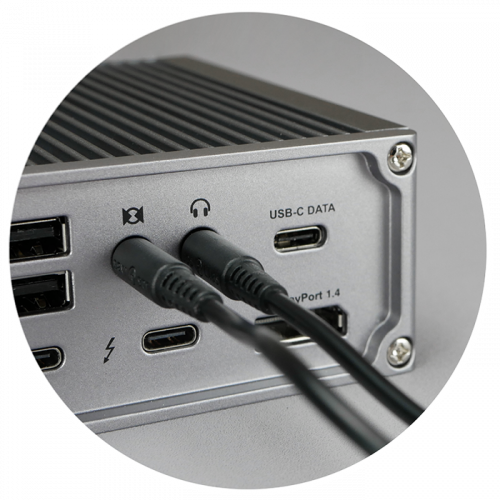

3X AUDIO PORTS
Some people prefer to connect their headphones to the front of a dock for easy convenience, whilst others prefer to have them plugged into the back of a dock to keep their workflow cleaner.
The TS4’s two audio output ports, one on the front and one on the back, cater for either scenario*.
The back of the device also offers an audio input port for connecting a microphone.
*Only the front audio combo port, or the rear audio in and out ports can be used at once. Audio will default to the front port if both front and rear ports are used.
| Thunderbolt 4/USB4 Host Port: | Up to 98W (5V, 9V, 15V/3A, 20V/4.9A) |
| Each Downstream Thunderbolt 4/USB4 Port: | 15W (5V/3A) |
| Front 20W USB-C Port: | 20W (5V/3A, 9V/2.22A) |
| Remaining USB-C Ports: | 7.5W (5V/1.5A) |
| USB-A Ports | : 7.5W (5V/1.5A) |
| Size & Weight | |
| Height: | 5.55” (141.0mm) |
| Width: | 1.65” (42.0mm) |
| Length: | 4.46” (113.0mm) |
| Weight: | 1.41 lbs (0.64kg) |
