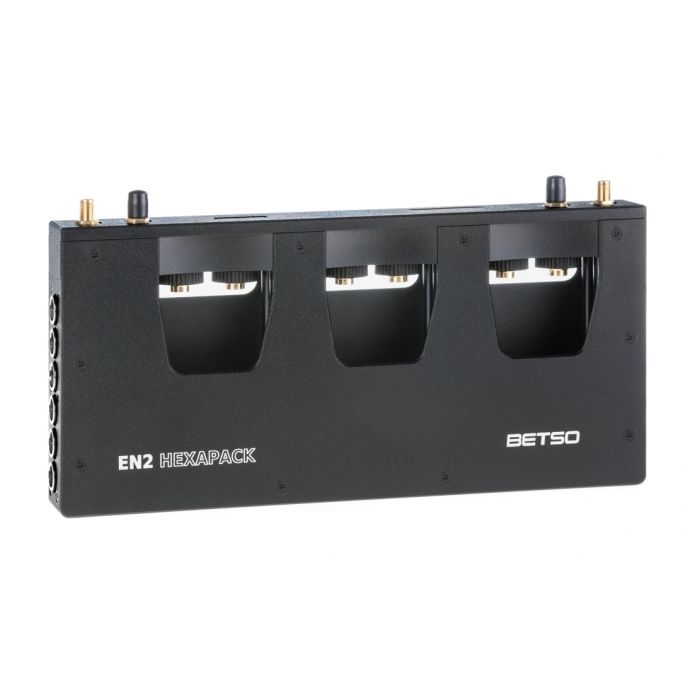

BETSO En2 HEXAPACK
by BetsoThe BETSO EN2 HEXAPACK is a portable rack system for Audio Ltd. En2 receivers. It provides power distribution to all inserted receivers, connected antennas, and even other external devices.
It can handle up to three MX/DX/DX2 receivers, so up to 6 audio channels can be easily connected to one pair of receiver antennas for maximum rig organization.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
1 x BETSO En2 HEXAPACK
The BETSO EN2 HEXAPACK is a portable rack system for Audio Ltd. En2 receivers. It provides power distribution to all inserted receivers, connected antennas, and even other external devices.
It can handle up to three MX/DX/DX2 receivers, so up to 6 audio channels can be easily connected to one pair of receiver antennas for maximum rig organization. HEXAPACK has very compact dimensions and robust construction, which designate it for field use.
RF signal from each antenna is equally distributed to all connected En2 receivers. For systems with larger numbers of transmitted channels, signal from each antenna can be evenly distributed between one or more HEXAPACKS or other devices through the antenna output connectors.
The HEXAPACK high-efficient input filters help to prevent receiver intermodulation with other sources in band outside of the main working range of wireless systems like walkie-talkies, FM radios, wireless focus systems, WiFi and Bluetooth devices like mobile phones, etc.
If required, external antennas powering can be easily switched on, providing DC power supply to external antennas through SMA connectors. This feature is valuable for easy connection of active receiver antennas like BETSO SHARKIE or BETSO CPAA.
The BETSO HEXAPACK can be powered externally from DC power source of 6-18 V DC, which can be distributed to other (up to two) devices by parallel-connected external power connectors for easy rig interconnection. This external powering is then used for En2 receiver powering and optionally, if required, for active antenna powering.
Thanks to precise CNC milling manufacturing technology, aluminium alloy material, and original hi-quality connectors and components, HEXAPACK is very durable and compact solution for the best rig organization.
Frequency range: 470 MHz to 850 MHz
Input filters attenuation: High below 450 MHz (for example -82dB @ 100 MHz), High above 870 MHz (for example -35dB @ 2.4 GHz)
Dimensions (h x w x d): 125 x 235 x 29 mm
Weight: approx. 564 g
Mechanical construction: CNC milled aluminium alloy
Powering: External powering 6 - 18 V DC
Current consumption: 30mA @ 12V
