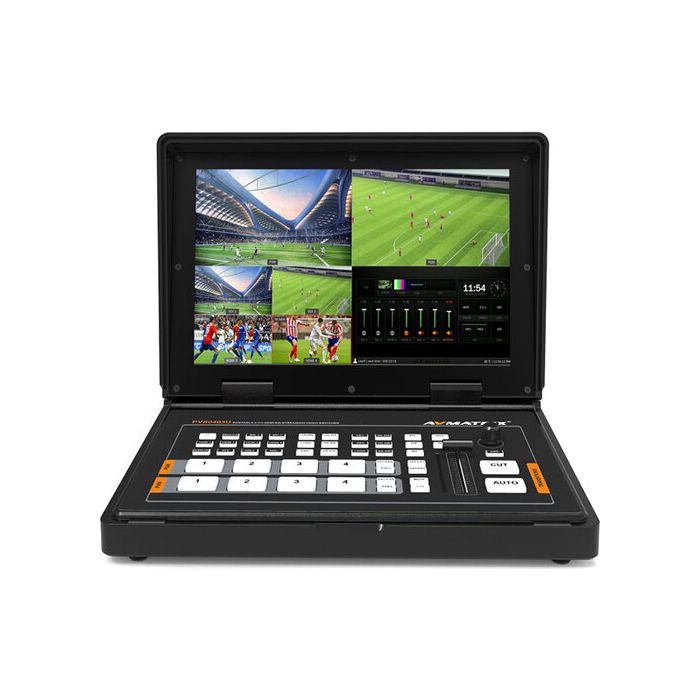

AVMATRIX PVS0403U Portable 4-Ch HDMI SDI Multi-formatStreaming Video Switcher
by Avmatrix- Integrated 10.1" Full HD IPS LCD Monitor
- 2 x HDMI and 2 x SDI Autodetected Inputs
- 1 x HDMI Multiview, 2 x HDMI PGM Outputs
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- AVMATRIX PVS0403U 4-Channel SDI & HDMI Video Switcher with 10.1" Monitor
- Power Supply
- USB Type-A to Type-C Cable
- Tally Connector
Add professional video switching and audio mixing flexibility to your concert productions, house of worship, educational forum, or live sports programming with this HVS0403U Micro 4-Channel SDI & HDMI Video Switcher from AVMATRIX. Boasting two HDMI and two SDI autodetectable inputs, the HVS0403U is a compact and user-friendly video switcher loaded with an integrated 10.1" Full HD IPS LCD monitor and many powerful features, including luma and chroma keying, mix/fade/wipe effects, audio mixing, and a picture-in-picture (PiP) or picture-on-picture (PoP) layout, using tactile functions such as auto and cut transitions or the T-bar.
Bring in four separate sources for switching up to 1080p60 video with embedded audio, or mix in additional audio originating from two analog stereo 3.5mm mic/line inputs. An HDMI output with multiview support provides ideal previewing functions, and two HDMI program outputs with scaling features give you flexibility for sending simultaneous signals to a display for live events and a recording terminal for editorial consideration. There is also a USB Type-C video output to connect to a computer for video capture and livestreaming, while a LAN port enables you to control the switcher using software via IP.
Logo overlays are supported from a variety of different image file formats, including PNG, JPG, and BMP, and you have the option of capturing up to 16 screenshots and storing up to 16 images using the USB Type-A input with 39 default patterns and two color generators. A tally interface supports GPIO, still frame, mute, and fade-to-black (FTB) functionality.
10.1" IPS Full HD Display
The integrated display enables you to clearly view preview, program with audio bar, multiview, clock, and menu settings.
Scaled Output and Multiview
The switcher supports multiview formats, including 1080p, 1080i, 720p, 576i, and 480p HDMI and SDI signals. Each output supports up/down scaling and can be configured as HDMI/SDI source, PVW, PGM, clean PGM, and multiview.
USB Capture for Streaming
Connect the switcher to a computer via the USB Type-C output and use software like OBS, PotPlayer, or vMix to realize livestreaming on YouTube, Facebook, Twitter, and other social media platforms.
Upstream and Downstream Keying
The switcher supports chroma and luma key for keying off blue/green and black background colors for virtual studio or live event applications.
Transition Effects
There are wipe (11 x 2 patterns), mix, and dip transition effects available using the T-bar or Auto button function, and users can also transition to different shots by switching via the Cut button.
Powerful Media Management
The media management functions feature 39 preset patterns, and users can import images from a USB thumb drive or capture and store the screenshot image originating from SDI1, SDI2, HDMI3, HDMI4, clean PGM, and PGM.
Audio Mixing and Audio Follows Video
Easily mix the embedded audio from the two HDMI and two SDI sources or set the embedded audio function to AFV (audio follows video) mode. You can also bring in two external audio sources via the unit's two 3.5mm analog (mic/line) inputs.
PC Control Software
A free software can be downloaded from the manufacturer's website allowing users to control all settings of the device via IP.
AVMATRIX PVS04 Specs
Available M/E Layers |
2 M/E |
Effect Types |
1 x Graphic, Transition, Chroma Key, Alpha Key, Luma Key |
Graphics Memory |
32 Images |
Downstream Keys |
1 x Chroma, Luma, DVE |
Generators |
2 x Color |
Audio Mixing |
2-Channel Mixing |
Processing
Switching Type |
Pushbutton, Software, T-Bar |
Processing Resolution |
1080p |
Color Processing |
YUV |
Input
Number of Video Input Sources |
4 |
Video Input Connectors |
2 x HDMI Female |
Input Video Format |
HDMI |
Audio Input Connectors |
2 x 1/8" / 3.5 mm TRS Stereo Analog Female |
Input Audio Format |
Analog |
Embedded Audio Input |
HDMI: 2-Channel (per Input) |
Output
Video Output Channels |
2 |
Video Output Connectors |
2 x HDMI Female (Program) |
Output Video Format |
HDMI |
Embedded Audio Output |
HDMI: 2-Channel (per Output) |
Multiview Output |
4-Way Multiview viaHDMI |
Monitor Output |
1 x HDMI |
Connectivity
Other I/O |
1 x DE-15/DB-15 Tally Input |
Video Standard Compliance |
SMPTE 259M/292M/424M |
Recording Media |
1 x USB 2.0 Type-A (External Drives) |
Display
Display Size |
10.1" |
Screen Resolution |
1920 x 1080 |
Power Connector |
1 x Barrel (7 to 24 VDC) Input |
Power Consumption |
12 VDC at 1.8 A (12 W) |
Environmental
Operating Temperature |
-4 to 140°F / -20 to 60°C |
Storage Temperature |
-22 to 158°F / -30 to 70°C |
General
Dimensions |
10.3 x 7.6 x 2.3" / 26.1 x 19.3 x 5.8 cm |
Weight |
3.5 lb / 1.6 kg |
Packaging Info
Package Weight |
4.875 lb |
Box Dimensions (LxWxH) |
12.2 x 11.45 x 4.35" |
