AVMATRIX EAGLE P30AAI Tracking FHD PTZ Camera
by Avmatrix
Availability:
7-10 days delivery
SKU
EAGLEP30A

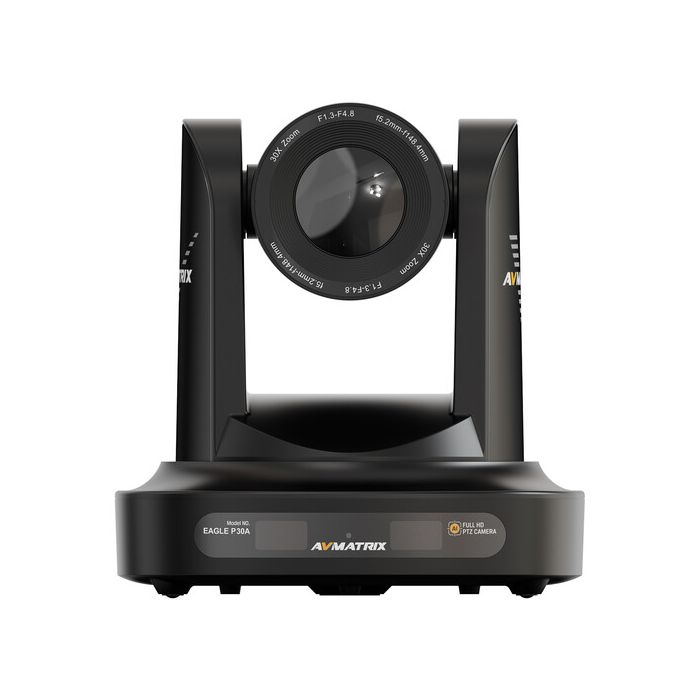

Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom from AVMATRIX.
€998.75
€799.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- AVMATRIX EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom
- 12V Power Adapter
- IR Remote Control
- USB-A 3.0 Cable
- RS-232 Serial Cable
- RS-485 Terminal Connector
Add a powerful PTZ camera with 1080p60 video capture and auto-tracking to your professional broadcasts with this EAGLE AI Tracking 1080p PTZ Camera with 30x Zoom from AVMATRIX. The camera offers precision control and multiple output ports, and is designed for broadcast, security, and teleconferencing needs. It also supports IP, UVC, VISCA, Pelco-D, and Pelco-P control protocols. This camera supports video output via IP, USB, HDMI, and 3G-SDI and has a LAN port for IP streaming via RTMP/S, SRT, RTSP, or ONVIF.
1080p Capture
The EAGLE features a high-resolution 2.07MP 1/2.8" CMOS sensor that can capture up to 1080p60 video.
AI Auto-Tracking and Autoframing
The EAGLE features intelligent AI tracking with four selectable modes that can be utilized to follow subjects around a stage or room during live events, lectures, or conferences from up to 59' away:
- Real-time
- Stage tracking
- Area tracking
- Intelligent view
The AI technology also supports auto-framing to reframe and reposition your subject in the frame when you're in real-time mode, and in stage tracking mode you can adjust the size of the frame.
Optical Zoom Lens
The camera features a 30x optical zoom lens that maintains a crisp image throughout the zoom range. It also features a wide horizontal field of view and an additional 16x digital zoom to get even closer to your subjects with little image quality loss.
Versatile Interfaces
Output your video in multiple ways using the HDMI, 3G-SDI, USB-A 3.0, and LAN streaming ports. All of the ports can output video up to 1080p60, and you can control the camera simultaneously via UVC, serial, or IP.
FreeD Support for AR/VR
Add green screen shots to your productions using FreeD protocols, which are supported by the camera without additional sensors. This enables easy integration into virtual and augmented reality productions.
Control Protocols
In addition to UVC control over the USB port, the camera can be controlled via VISCA-over-IP, UDP, and ONVIF protocols via the LAN port, or it can be controlled via RS-485 or RS-232 serial using VISCA, Pelco-P, or Pelco-D protocols.
Presets
The camera supports saving up to 255 presets via optional IP/serial controllers, and it can save up to 10 presets on the included IR remote. The preset freeze function allows you to "freeze" actions for free switching between preset configurations.
Other Notable Features
- Manual or autofocus
- ±175° panning range
- -30/+90° tilting range
- ONVIF, RTSP, RTMP/S, SRT streaming protocols
- H.265/H.264/MJPEG compression format support
- 3.5mm line audio input
- 100 Mb/s Ethernet
- Powered via included power supply or via PoE+
| Imaging | |
| Image Sensor | 1/2.8"-Type CMOS |
| Effective Sensor Resolution | 2.07 Megapixel |
| Focus Control | Autofocus |
| Manual Focus | |
| Exposure Control | |
| Signal-to-Noise Ratio | 50 dB |
| Minimum Illumination | 0.5 Lux at f/1.8 Aperture |
| Flip / Mirror Support | Image Flip |
| White Balance | Presets: Auto, Manual, One-touch |
| Range: 2400 to 7100K | |
| Lens | |
| Focal Length | 5.2 to 148.4mm |
| Max Optical Zoom | 30x |
| Max Digital Zoom | 16x |
| Field of View | Horizontal: 58.1 to 2.14° |
| Vertical: 33.8 to 1.2° | |
| Diagonal: 65.4 to 2.48° | |
| Video Capture | |
| Video Output | HDMI / RJ45 / SDI/BNC |
| 1920 x 1080p | |
| 1920 x 1080p at 25/29.97/30.00/50/59.94/60.00 fps | |
| 1920 x 1080i at 50/59.94/60.00 fps | |
| 1280 x 720 at 50/59.94/60.00 fps | |
| USB | |
| 1920 x 1080p | |
| 1920 x 1080p at 10/15/20/25/30.00/50/60.00 fps | |
| 1280 x 720 at 10/15/20/25/30.00/50/60.00 fps | |
| 800 x 600 at 10/15/20/25/30.00/50/60.00 fps | |
| 1024 x 576p at 10/15/20/25/30.00/50/60.00 fps | |
| 640 x 480p at 10/15/20/25/30.00/50/60.00 fps | |
| 800 x 448 at 10/15/20/25/30.00/50/60.00 fps | |
| 480 x 270p at 10/15/20/25/30.00/50/60.00 fps | |
| 320 x 180p at 10/15/20/25/30.00/50/60.00 fps | |
| Embedded Audio | HDMI/IP/LAN (RJ45)/SDI/USB |
| Internal Recording | No |
| Audio Recording | Yes |
| Broadcast Output | NTSC/PAL |
| Supported Protocols | Camera Control |
| FreeD/IP/IR/ONVIF/Pelco-D/Pelco-P/RS-232/RS-485/UVC/VISCA | |
| Video Streaming | |
| HTTP/RTMP/RTMPS/SRT | |
| IP Streaming | H.264/H.265/MJPEG |
| 640 x 480 to 1920 x 1080 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Main Stream: 64.00 to 40,000 Kb/s) | |
| 320 x 180 to 1280 x 720 at 10p, 15p, 20p, 25p, 30p, 50p, 60p (Sub Stream: 64.00 to 40,000 Kb/s) | |
| Control | |
| Presets | 255 via IP, RS-232, RS-485, UVC, VISCA, Pelco-P, Pelco-D |
| 10 via IR | |
| Pan/Tilt | Pan: 340° (-170 to 170°) at 0.1 to 100°/s |
| Tilt: 120° (-90 to 30°) at 0.1 to 45°/s | |
| Networking | |
| Wireless | No |
| Interface | |
| Video I/O | 1x HDMI Output |
| 1x BNC (3G-SDI) Output | |
| 1x USB-A 2.0 Output | |
| 1x RJ45 LAN Input/Output | |
| Audio I/O | 1x 1/8" / 3.5 mm TRS Stereo Line Input |
| Other I/O | 1x DIN 8-Pin (RS-232) Control Input |
| 1x DIN 8-Pin (RS-232) Control Output | |
| 1x Block 2-Pin (RS-485) Control Input/Output | |
| Built-In Microphone | No |
| Power | |
| PoE Support | Yes: PoE+ 802.3at |
| Power I/O | 1x Barrel (12VDC at 1.2 A) Input |
| Power Consumption | Device: 13.8 W |
| Environmental | |
| Operating Conditions | 14 to 122°F / -10 to 50°C at 20 to 80% Humidity |
| Storage Conditions | 14 to 158°F / -10 to 70°C at 20 to 95% Humidity |
| Impact Resistance | No |
| Environmental Resistance | No |
| General | |
| Mounting | 1x 1/4"-20 Female for Bracket/Ceiling/Tripod/Wall |
| Dimensions (W x H x D) | 7.1 x 6.7 x 6.7" / 180 x 170 x 170 mm |
| Weight | 2.78 lb / 1.26 kg (Body Only) |
