Aputure INFINIMAT 8X8 KIT LED & Clear (EU)
by AputureModular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

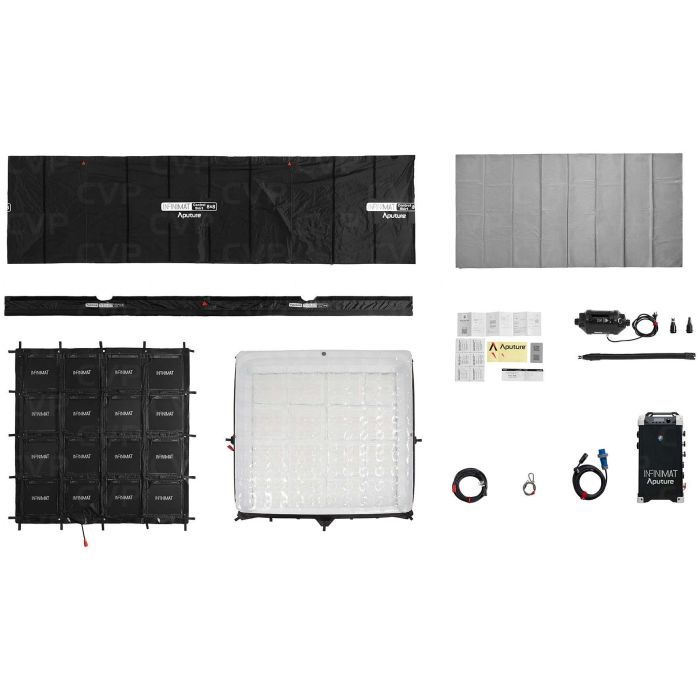

Package includes
- 1x Flight Case for INFINIMAT LED & Clear Softbox 8x8
- 1x Aputure INFINIMAT Only 8x8
- 1x Aputure INFINIMAT 15m Head Cable (1600W)
- 1x Aputure INFINIMAT Inflatable Clear Softbox 8x8
- 1x INFINIMAT Diffusion Cloth (1 Stop) 8x8
- 1x INFINIMAT Diffusion Cloth (2 Stop) 8x8
- 1x Aputure INFINIMAT Control Skirt 8x8
- 1x Carrying Case for Control Grid 8x8
- 1x Aputure INFINIMAT Control Grid 8x8
- 1x Aputure INFINIMAT Patch Kit
- 1x Aputure INFINIMAT Air Pump Max
- 1x Aputure INFINIMAT Cushion 8x8
- 1x Rolling Case for Control Box 1600w Pack
- 1x Aputure INFINIMAT Control Box 1600W
- 1x LP-24 AC Power Cable
- 1x Safety Rope (1.3m)
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook and loop diffusion cloths are available in various sizes ranging from 1x2 to 20x20 feet. Traditional rigid frame softbox options are also available for select sizes. The lamp heads are designed with replaceable tiles for easy maintenance and multiple mounting/rigging methods are provided for different sizes.
The INFINIMAT system offers a wide range of features including tuneable CCT, green-magenta adjustment, stepless dimming, and multiple control methods. The inflatable airbag provides structural support and rigidity while the system is IP65 dust and water-resistant. With double the output compared to competitors, INFINIMATs are a versatile and durable lighting solution suitable for various production needs.
|
COLOUR SPECIFICATIONS
|
|
| CCT | 2,000K – 10,000K |
| CRI | ≥96 |
| TLCI | ≥97 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 73 |
| TM-30 RF (Average) | 92 |
| TM-30 RG (Average) | 100 |
|
HARDWARE FEATURES
|
|
| Pixel Count | 16 pixels |
| Pixel Module | 2x2 |
| Softbox Inflation Time (Air Pump Max) | 2 min |
| Full-Inflation Duration | 2 days |
|
POWER SPECIFICATIONS
|
|
| Max Power Consumption | 2,000 W |
| Max Power Output | 1,600 W |
| Operating Voltage DC1 & DC2 |
12 V–16.8 V, 22 V–33.6 V
|
| Operating Voltage AC | 100 V ~ 264 V |
|
CONTROL AND FIRMWARE
|
|
| Control Methods |
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
|
| Firmware Upgradeable |
Sidus Link, USB Drive
|
| Wireless Range (Bluetooth & CRMX) |
≤100 m / ≤328.1 ft
|
| Control Box Type |
INFINIMAT Control Box 1600W
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Weather Resistance Rating | IP65 |
| Operating Temperature | -20 ºC ~ 50 ºC |
| Storage Temperature | -20 ºC ~ 85 ºC |
| Control Box Noise Levels High Speed Mode | 35.9 dBA |
| Control Box Noise Levels Medium Speed Mode | 34.2 dBA |
| WEIGHT | |
| INFINIMAT 8x8 | 32.00 kg |
| 70.55 lbs | |
| INFINIMAT Air Pump Max | 3.75 kg |
| 8.27 lbs | |
| Control Box 1600W | 19.38 kg |
| 42.73 lbs | |
| Inflatable Clear Softbox 8x8 | 10.34 kg |
| 22.8 lbs | |
| 1-Stop Diffusion Cloth | 601 g |
| 1.32 lbs | |
| 2-Stop Diffusion Cloth | 739 g |
| 1.63 lbs | |
| Light Control Skirt 8x8 | 3.45 kg |
| 7.61 lbs | |
| Light Control Grid 8x8 | 3.50 kg |
| 7.72 lbs | |
| Flight Case (INFINIMAT LED & Clear Softbox 8x8) | 40.00 kg |
| 88.18 lbs | |
| Rolling Case (Control Box 1600W Pack) | 7.50 kg |
| 16.53 lbs | |
| DIMENSIONS | |
| INFINIMAT 8x8 |
239.0 x 239.0 cm
|
| 7.8 x 7.8 ft | |
| INFINIMAT Air Pump Max |
34.8 x 17.8 x 17.8 cm
|
|
13.7 x 7.0 x 7.0 in
|
|
| Control Box 1600W |
27.3 x 26.2 x 55.0 cm
|
|
10.8 x 10.3 x 21.7 in
|
|
| Inflatable Clear Softbox 8x8 |
239.0 x 239.0 x 27.0 cm
|
| 7.8 x 7.8 x 0.9 ft | |
| 1-Stop or 2-Stop Diffusion Cloth |
236.5 x 236.5 cm
|
| 7.8 x 7.8 ft | |
| Light Control Skirt 8x8 |
235.0 x 234.0 cm
|
| 92.5 x 92.5 in | |
| Light Control Grid 8x8 |
230.0 x 230.0 cm
|
| 7.6 x 7.6 ft | |
| Flight Case (INFINIMAT LED & Clear Softbox 8x8) |
73.0 x 65.0 x 73.0 cm
|
|
28.7 x 25.6 x 28.7 in
|
|
| Rolling Case (Control Box 1600W Pack) |
68.0 x 45.0 x 40.7 cm
|
|
26.8 x 17.7 x 16.0 in
|
