Aputure INFINIMAT 4X4 KIT LED & Clear (EU)
by Aputure
Availability:
7-10 days delivery
SKU
AP50039AR8CL
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook-and-loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available
€5,737.50
€4,590.00
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

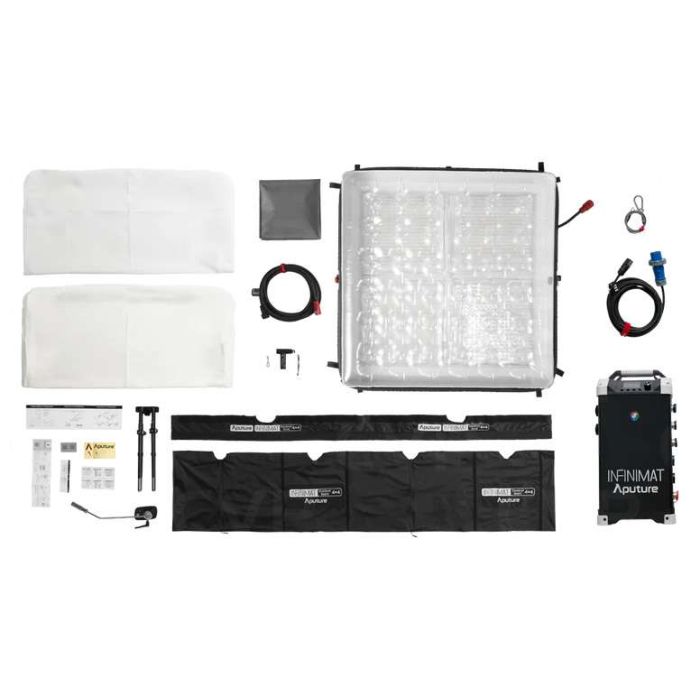

Package includes
- 1x Carrying Case for INFINIMAT LED & Clear Softbox
- 1x Aputure INFINIMAT 4x4
- 1x Aputure INFINIMAT 7.5m Head Cable (1600W)
- 1x Aputure INFINIMAT Carbon Fiber Mounting Bracket 4x4
- 1x Aputure K-Mount Arm w/ Straight 5/8” Pin
- 1x Aputure INFINIMAT Inflatable Clear Softbox 4x4
- 1x INFINIMAT Diffusion Cloth (1 Stop) 4x4
- 1x INFINIMAT Diffusion Cloth (2 Stop) 4x4
- 1x Aputure INFINIMAT Control Skirt 4x4
- 1x Aputure INFINIMAT Control Grid 4x4
- 1x Aputure INFINIMAT Patch Kit
- 1x Aputure INFINIMAT Air Pump Mini
- 1x Carrying Case for Control Box 1600W Pack
- 1x Aputure INFINIMAT Control Box 1600W (V or Gold Mount)
- 1x AC Cable 1600W
- 1x Safety Rope (1.3m)
Modular full-colour RGBWW LED mats with inflatable structural airbags and hook-and-loop diffusion cloths are available in various sizes ranging from 1x2 to 20x20 feet. Traditional rigid-frame softbox options are also available for select sizes. The lamp heads are designed with easy-to-replace tiles and can be powered and controlled using a single control box.
The INFINIMAT system offers a wide range of features including tunable CCT, green-magenta adjustment, stepless dimming, and multiple control methods. The inflatable airbag provides structural support and the system is IP65 dust- and water-resistant. INFINIMATs are designed for durability and portability, making them suitable for a variety of production settings.
|
COLOUR SPECIFICATIONS
|
|
| CCT | 2,000K – 10,000K |
| CRI | ≥96 |
| TLCI | ≥97 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 73 |
| TM-30 RF (Average) | 92 |
| TM-30 RG (Average) | 100 |
|
HARDWARE FEATURES
|
|
| Pixel Count | 4 pixels |
| Pixel Module | 2x2 |
| Softbox Inflation Time (Air Pump Mini) | 1 min 50 sec |
| Full-Inflation Duration | 7 days |
|
POWER SPECIFICATIONS
|
|
| Max Power Consumption | 800 W |
| Max Power Output | 640 W |
| Operating Voltage DC1 & DC2 |
12 V–16.8 V, 22 V–33.6 V
|
| Operating Voltage AC | 100 V ~ 264 V |
| WEIGHTS | |
| INFINIMAT 4x4 | 8.36 kg |
| 18.43 lbs | |
| INFINIMAT Air Pump Mini | 240 g |
| 0.53 lbs | |
| Control Box 1600W | 19.38 kg |
| 42.73 lbs | |
| Inflatable Clear Softbox 4x4 | 2.26 kg |
| 5.7 lbs | |
| 1-Stop Diffusion Cloth | 202 g |
| 0.45 lb | |
| 2-Stop Diffusion Cloth | 224 g |
| 0.49 lb | |
| Light Control Skirt 4x4 | 1.15 kg |
| 2.53 lbs | |
| Light Control Grid 4x4 | 1.25 kg |
| 2.75 lbs | |
| Rolling Case (INFINIMAT LED & Clear Softbox 4x4) | 16.28 kg |
| 35.89 lbs | |
| Rolling Case (Control Box 1600W Pack) | 7.50 kg |
| 16.53 lbs | |
| DIMENSIONS | |
| INFINIMAT 4x4 |
121.0 x 121.0 cm
|
| 4.0 x 4.0 ft | |
| INFINIMAT Air Pump Mini |
3.6 x 11.4 x 12.6 cm
|
| 1.4 x 4.5 x 5.0 in | |
| Control Box 1600W |
27.3 x 26.2 x 55.0 cm
|
|
10.8 x 10.3 x 21.7 in
|
|
| Inflatable Clear Softbox 4x4 |
121.0 x 121.0 x 17.0 cm
|
| 4.0 x 4.0 x 0.6 ft | |
| 1-Stop or 2-Stop Diffusion Cloth |
122.0 x 122.0 cm
|
| 48.0 x 48.0 in | |
| Light Control Skirt 4x4 |
120.0 x 120.0 cm
|
| 47.2 x 47.2 in | |
| Light Control Grid 4x4 |
117.0 x 117.0 cm
|
| 3.8 x 3.8 ft | |
| Rolling Case (INFINIMAT LED & Clear Softbox 4x4) |
85.3 x 73.4 x 36.8 cm
|
|
33.6 x 28.9 x 14.5 in
|
|
| Rolling Case (Control Box 1600W Pack) |
68.0 x 45.0 x 40.7 cm
|
|
26.8 x 17.7 x 16.0 in
|
|
|
CONTROL AND FIRMWARE
|
|
| Control Methods |
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
|
| Firmware Upgradeable |
Sidus Link, USB Drive
|
| Wireless Range (Bluetooth & CRMX) |
≤100 m / ≤328.1 ft
|
| Control Box Type |
INFINIMAT Control Box 1600W
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Weather Resistance Rating | IP65 |
| Operating Temperature | -20 ºC ~ 50 ºC |
| Storage Temperature | -20 ºC ~ 85 ºC |
| Control Box Noise Levels High Speed Mode | 35.9 dBA |
| Control Box Noise Levels Medium Speed Mode | 34.2 dBA |
