Aputure INFINIMAT 1X4 KIT LED & Clear (EU)
by AputureModular full-colour RGBWW LED mats with inflatable structural airbags and hook-and-loop diffusion cloths
1x2, 1x4, 2x4, 4x4, 8x8, and 20x20 (ft) options available
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

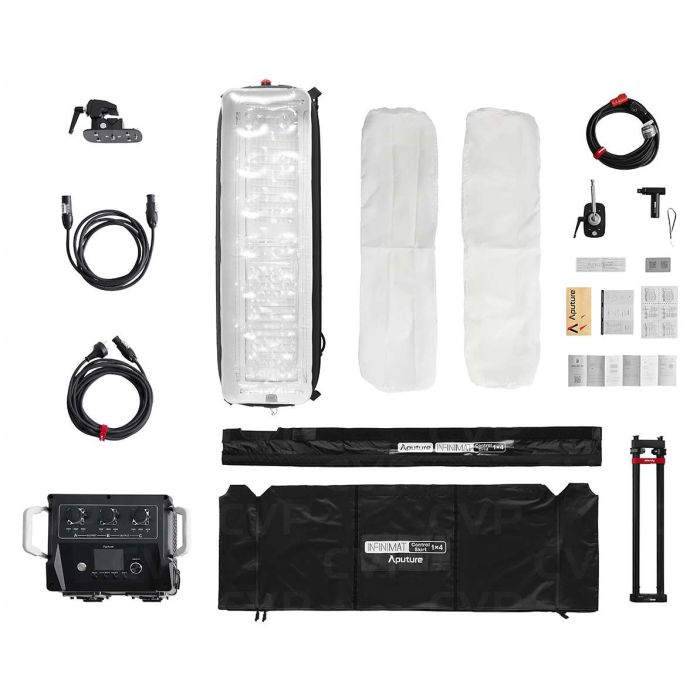

Package includes
- 1x Carrying Case for INFINIMAT LED & Clear Softbox
- 1x Aputure INFINIMAT Only 1x4
- 1x Aputure INFINIMAT 7.5m Head Cable (400W)
- 1x Aputure INFINIMAT Carbon Fiber Mounting Bracket 1x4
- 1x Aputure K-Mount Arm w/ Straight 5/8” Pin
- 1x Aputure INFINIMAT Inflatable Clear Softbox 1x4
- 1x INFINIMAT Diffusion Cloth (1 Stop) 1x4
- 1x INFINIMAT Diffusion Cloth (2 Stop) 1x4
- 1x Aputure INFINIMAT Control Skirt 1x4
- 1x Aputure INFINIMAT Control Grid 1x4
- 1x Aputure INFINIMAT Patch Kit
- 1x Aputure INFINIMAT Air Pump Mini
- 1x Carrying Case for Control Box 400W Pack
- 1x Aputure INFINIMAT Control Box 400W (V or Gold Mount)
- 1x Aputure Power CON Cable – 6m
- 1x Aputure K-Mount Style Mounting Clamp
Aputure INFINIMAT Clear Softbox Kit 1x4 - EU is a complete 1x4ft tuneable color mat light system with a clear inflatable airbag and 400W control box. The INFINIMATs offer double the output compared to competitors of the same size, making them significantly brighter and suitable for production work even in daylight. These mats are colour tuneable and can be configured with other INFINIMATs in pixel arrays, with control over Sidus Link Bluetooth and DMX/CRMX for active motion effects.
The INFINIMATs are designed for rental-grade construction, with IP65 weather protection, metal backing plates for heat dispersion, and modular internal design for easy service. They feature ultra-low dimming capabilities, portable travel kits for easy storage and transportation, and multiple mounting/rigging methods. With a wide range of sizes and control options available, the INFINIMATs offer versatile and high-quality lighting solutions for various production needs.
|
COLOUR SPECIFICATIONS
|
|
| CCT | 2,000K – 10,000K |
| CRI | ≥96 |
| TLCI | ≥97 |
| CQS | ≥95 |
| SSI (Tungsten) | 84 |
| SSI (D56) | 73 |
| TM-30 RF (Average) | 92 |
| TM-30 RG (Average) | 100 |
|
HARDWARE FEATURES
|
|
| Pixel Count | 2 pixels |
| Pixel Module | 1x2 |
| Softbox Inflation Time (Air Pump Mini) | 33 sec |
| Full-Inflation Duration | 7 days |
|
POWER SPECIFICATIONS
|
|
| Max Power Consumption | 201 W |
| Max Power Output | 162 W |
| Operating Voltage DC1 & DC2 |
12 V–16.8 V, 22 V–33.6 V
|
| Operating Voltage AC | 100 V ~ 264 V |
|
CONTROL AND FIRMWARE
|
|
| Control Methods |
On-board, Sidus Link App, DMX/RDM, CRMX, etherCON
|
| Firmware Upgradeable |
Sidus Link, USB Drive
|
| Wireless Range (Bluetooth & CRMX) |
≤100 m / ≤328.1 ft
|
| Control Box Type |
INFINIMAT Control Box 400W
|
|
ENVIRONMENTAL SPECIFICATIONS
|
|
| Weather Resistance Rating | IP65 |
| Operating Temperature | -20 ºC ~ 50 ºC |
| Storage Temperature | -20 ºC ~ 85 ºC |
| Control Box Noise Levels High Speed Mode | 29.3 dBA |
| Control Box Noise Levels Medium Speed Mode | 24.7 dBA |
| WEIGHT | |
| INFINIMAT 1x4 | 2.40 kg |
| 5.29 lbs | |
| INFINIMAT Air Pump Mini | 0.24 kg |
| 0.53 lbs | |
| Control Box 400W | 7.2 kg |
| 15.87 lbs | |
| Inflatable Clear Softbox 1x4 | 0.95 kg |
| 2.09 lbs | |
| 1-Stop Diffusion Cloth | 87 g |
| 0.19 lbs | |
| 2-Stop Diffusion Cloth | 97 g |
| 0.21 lbs | |
| Light Control Skirt 1x4 | 0.78 kg |
| 1.72 lbs | |
| Light Control Grid 1x4 | 0.71 kg |
| 1.56 lbs | |
| Carrying Case (INFINIMAT LED & Clear Softbox 1x4) | 4 kg |
| 8.82 lbs | |
| Carrying Case (Control Box 400W Pack) | 2.9 kg |
| 6.39 lbs | |
| DIMENSIONS | |
| INFINIMAT 1x4 |
124.00 x 34.00 cm
|
| 4.07 x 1.12 ft | |
| INFINIMAT Air Pump Mini |
3.60 x 11.40 x 12.60 cm
|
|
1.42 x 4.49 x 4.96 in
|
|
| Control Box 400W |
33.50 x 22.00 x 24.00 cm
|
|
13.19 x 8.66 x 9.45 in
|
|
| Inflatable Clear Softbox 1x4 |
124.00 x 34.00 x 17.00 cm
|
|
4.07 x 1.12 x 0.56 ft
|
|
| 1-Stop or 2-Stop Diffusion Cloth | 122.0 x 34.5 cm |
| 48.0 x 13.6 in | |
| Light Control Skirt 1x4 | 300.00 x 50 cm |
|
118.00 x 19.69 in
|
|
| Light Control Grid 1x4 |
122.00 x 35.00 cm
|
| 4.00 x 1.14 ft | |
| Carrying Case (INFINIMAT LED & Clear Softbox 1x4) |
76.50 x 47.00 x 26.00 cm
|
|
30.11 x 18.50 x 10.23 in
|
|
| Carrying Case (Control Box 400W Pack) |
43.50 x 39.50 x 31.40 cm
|
|
17.13 x 15.55 x 12.36 in
|
