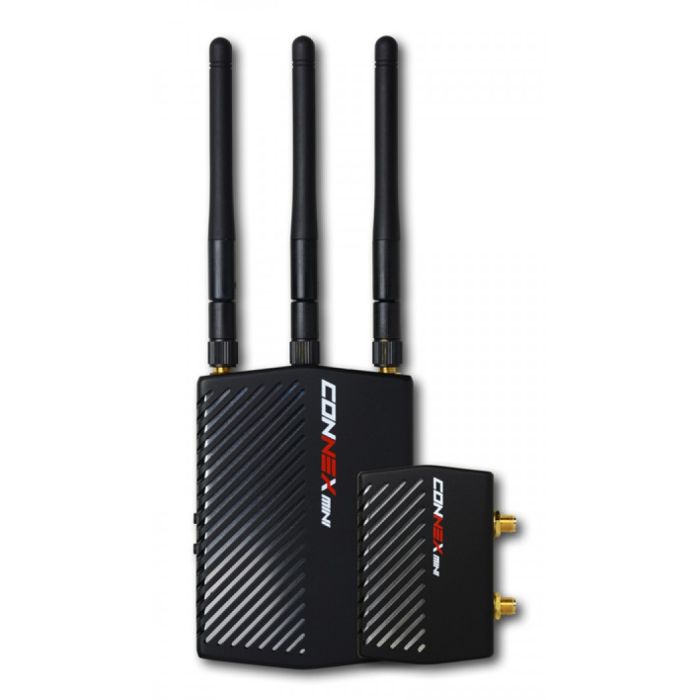

Amimon CONNEX mini Full Set CE
by AmimonCONNEX employs Amimon’s revolutionary HD video technology, widely regarded as the industry standard for wireless video in the broadcast and cinematography market.
- Installment Payment You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
- Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
- International Purchasing The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.
Package includes
- Amimon CONNEX mini Full Set CE
CONNEX Mini zero-latency HD wireless video link, is a new and smaller product in the CONNEX products family.
It delivers full HD video quality, zero latency and digital transmission reliability for live and sensitive shots.
CONNEX mini allows users to get perfect camera alignment for zoom and focus, while providing the best most profound real time video for true professionals.
Transmission distance (Outdoor): Up to 1,600 ft/500m (LoS)
Transmission delay: Zero (Less than 1 msec.)
Radio frequency: 5.1-5.8 GHz
Channel: 40 MHz
Channel selection: Automatic frequency selection (AFS)
Video formats: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/24, 720p/60, 720p/50, 525i/60, 625i/50
Multicast mode: Up to 4 receivers with no delay or quality degradation. (Requiring extra ground unit/s)
OSD support: CANBUS & MAVLink Telemetry based
Gimbal control: SBUS & PPM
Encryption: AES-128 & RSA 1024 for key exchange
Operating temperature: 0-45° Celsius
Regulation: CE, FCC, MIC
Mobile App: [new] Windows, Android
Video interface: Micro HDMI HDMI (Type A)
Antenna connectors: SMA (x2) R/P SMA (x3) R/P
Power connector: 4-pins DC jack
Power input: 6-28V (2S-6S) 6-28V (2S-6S)
Power input: 6-28V (2S-6S) 6-28V (2S-6S)
Power Consumption: 12v, 390-410mA 12V, 330-390mA
Dimensions (mm): 65.5x44.7x14.9 100.2x71.2x17.15
Weight: 60 grams 140 grams
