AJA U-TAP-SDI

by AJA

Availability: 14-20 days delivery

SKU

VZ-30597193

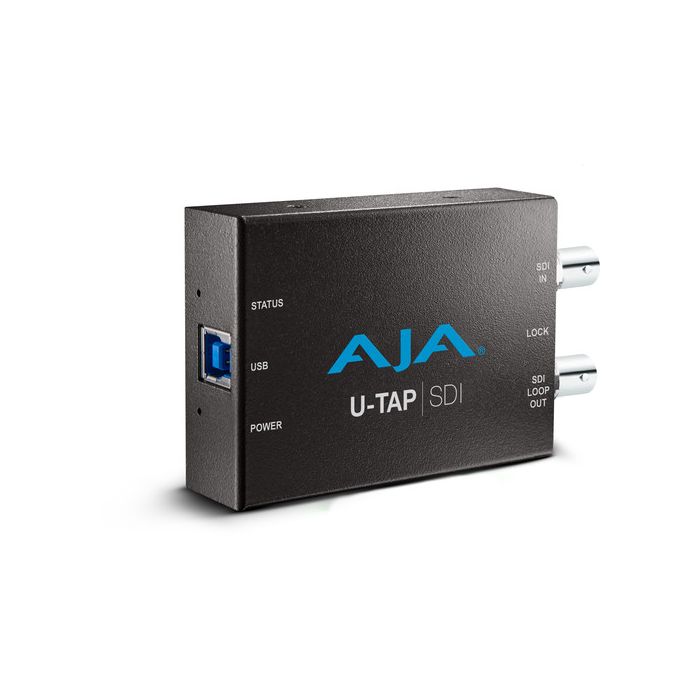

Capture 3G-SDI video on your computer or laptop with this U-TAP USB 3.1 Gen 1 Powered SDI Capture Device from AJA. The compact converter fits in your pocket and features a 3G-SDI input, a 3G-SDI output, and a USB 3.1 Gen 1 Type-B output.

€567.50 €454.00

Installment Payment   You can pay in installments using Visa, Visa Premium, Maestro, MasterCard, Diners credit cards. The fee is 5% over the quoted price, and it is assigned to your purchase order in your shopping cart upon the selection of the methods of payment. For more details, please click on the link containing The Methods of Payment.
Fast Delivery For all the purchase orders within Croatia received by 02:00 p.m. on a working day, delivery will be made on the following working day*. On the territory of Europe, we provide a fast delivery service. For more details, please click on the link containing The Delivery Terms.
International Purchasing   The companies within the EU (except for the Republic of Croatia) with a valid VAT ID number, will pay the price exclusive of VAT. The price will be calculated upon checkout. All the customers outside of the EU will pay the export price exclusive of VAT.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Package includes

AJA U-TAP USB 3.1 Gen 1 Powered SDI Capture Device
USB Type-B to USB Type-A Cable

Details

The U-TAP SDI supports frame rates up to 1080p60 and supports auto-scaling. The SDI loop-through outputs the source SDI signal to monitors, switchers, and other destinations. Embedded stereo audio is also supported and sent through the USB output to your computer. A wide range of Windows, macOS, and Linux software is supported, and no additional drivers are required. The unit is powered over the USB Type-B connection using the included cable.

USB 3.1 Gen 1 Type-B host output interface, 3G-SDI input up to 1080p60, and 3G-SDI loop output to monitors
UVC and UAC compatible on macOS, Windows, and Linux, negating the need for additional drivers
Powered using the USB Type-B port
Two-channel 24-bit, 48 kHz audio input
Auto-scaling support

More Information

Host Connection

USB Type-B (USB 3.2 Gen 1 / USB 3.1 Gen 1 / USB 3.0)

Input

Video Input Connectors	1 x BNC (3G-SDI) Female
Input Video Format	SDI WUXGA (1920 x 1200): 25/29.97/30/50/59.94/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 25/29.97/30/50/59.94/60 fps 480p: 25/29.97/30/50/59.94/60 fps PAL NTSC
Audio Input Connectors	None
Input Audio Format	Analog: 48 kHz / 24-Bit
Embedded Audio Input	SDI: 2-Channel

Output

Video Output Connectors

1 x BNC (3G-SDI) Female (Loop Output)

Standards

Video Standard Compliance	SMPTE 259M/292M
OS Compatibility	Windows macOS Linux
Power Connector	None
Power Consumption	Device: 5 VDC (6.5 W)

Environmental

Operating Temperature	32 to 104°F / 0 to 40°C
Storage Temperature	-40 to 140°F / -40 to 60°C
Operating Humidity	10 to 90%

General

Dimensions	4.1 x 2.4 x 1" / 10.41 x 6.1 x 2.54 cm
Weight	0.3 lb / 0.14 kg
Warranty Length	Limited 3-Year Warranty

Packaging Info

Package Weight	0.85 lb
Box Dimensions (LxWxH)	7.25 x 5.5 x 4.05"
